Trailer Mounted & Hydraulic ~ HF200 Mineral Exploration Drill Rig

US$ 1 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, drilling water

Power Type:

Diesel

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, drilling water

Power Type Diesel

Place of Origin Henan, China

Brand Name HF

Model Number HF200

Usage Other, Water Well, water well, bore hole, core sample, soil sample

Voltage 380V 50HZ

Power(W) 13

Dimension(L*W*H) 2.75*0.95*1.6m

Weight 975kg

Certification ISO9001:2000

Warranty 12months

After-sales Service Provided Engineers available to service machinery overseas

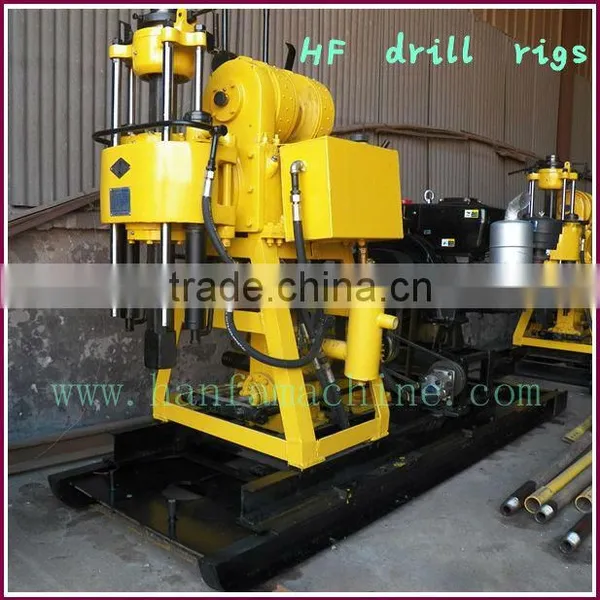

Trailer mounted & hydraulic ~ HF200 portable mineral exploration drill rig

Application------ HF200 portable mineral exploraton drill rig :

This drill rig known to Portable Drilling Rig is widely used in coal mine, ore mine, stone quarry, energy industry and water well drilling.
Our HF series drill rig are new generation products with full function for water well drilling, core drilling, geothermal well drilling and other geological exploration.

Description------ HF200 portable mineral exploration drill rig :

Specially designed for water well drilling, core drilling, geothermal well drilling and other geological exploration.
With inner mud pump or standard mud pump from 100L/min to 250L/min.
Can supply various size accessories, like rod, bit, core barrel, rope, and so on.

Advantages------ HF200 portable mineral exploration drill rig:

Designed for both water well and core;
Suitable for different hardness of geological features;
Strong structure and scientific design enable them to drill water well deep and with large diameter;
Durable parts, long service life;
Easy operation and maintenance save extra costs;
Excellent quality with favorable prices;
Hydraulic type, no need of electric power when working in the open field.

Project case------ HF200 portable mineral exploration drill rig :

Our equipments have been exported to more than 100 countries all around the world and gain a good reputation both at home and abroad.
We have established cooperation relationship with many universities to update technology and meet various needs from our customers.

Technical Parameters------ HF200 portable mineral explorationdrill rig :

Main machine technical parameter
Drilling depth		200m
Drlling diameter		300mm
End diameter		75mm
Drilling pipe diameter		50mm
Drilling angle		90°~75°
Drilling weight(no include power)		975kg
Unity machine dimesions		2.75×0.95×1.6m
Spindle
Spindle speed		64,128,287,557r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity			2400kg
Reel lifting speed		17,35,75,151r/min
Reel diameter		140mm
Wirerope diameter		13mm
Wirerop cubic measure		35m
Hug floodgate diameter		260mm
Hug floodgate belt width		70mm
Distance between drill and hole		400mm
Power
Diesel engine		s1105 Model, 22HP
Electric Motor		Y160M—4 ,15kw 1440r/min
Mud pump
Type	Horizontal single urn twin-action
Displacement	170L/min
Maximum pressure	3.0Mpa
Work pressure	1.5Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
Hydraulic pump
specification	CBT—F—314
Triangle conveyer belt	B1100×1
Useful
Geology general check exploration,Earth physics exploration,Road and high layer building ground survey,water Well,Blast opening etc drilling engineering
