Specifications
Hydraulic Geology Exploration Drill Machine for Sale1. Rock coring, mine exploration
2. BQ, NQ, HQ, PQ
3. Full hydraulic

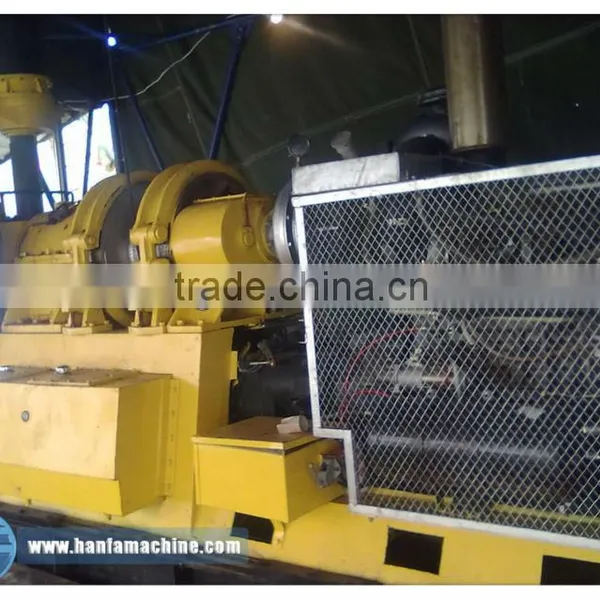

HF-6 hydraulic geology exploration driiling rig
Applications------HF-6 Hydraulic Geology Exploration Drill Machine for Sale
To both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.
Specifications------ HF-6 Hydraulic Geology Exploration Drill Machine for Sale
DieselEngine |
Model |
Cummins 6CTA (turbocharged and charge water cooled) |
Displacement |
8.3L (2.19 US Gallons) |
|
Power |
178kW (240HP) |
|
Rated RPM(Factory setting) |
2200rpm |
|
Drilling Capacity |
BQ |
2000 m(6560 feet) |
NQ |
1600 m(5248 feet) |
|
HQ |
1300 m(4264 feet) |
|
PQ |
1000 m(3280 feet) |
|
Drill Head |
Rotation Motor |
Double Hydraulic Motor -variable and Reversible Maker: SAUER-DANFOSS |
RPM |
Two Shifts/ Stepless Change 0-1100 RPM |
|
Ratios |
1st 8.776:1 2nd 2.716:1 |
|
Head Opener |
sidewise sliding way with hydraulic drive |
|
Hydraulic Chuck(PQ) |
Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 222 400 N |
|
Max. Torque |
6400 N·m(4717 lbf·ft) |
|
Hold Diameter |
121 mm(4.76 inch) |
|
Max. Lifting capacity of Spindle |
220 kN(49456 lbf) |
|
Max. Feeding Power |
110 kN(24728 lbf) |
