Construction lathe machine CKX360E with 8'' hydraulic chuck 53mm spindle bore 8/10 hydraulic turret cnc tools made in china
1. Three rectangular guideway in Z-axis
Z-axis is composted of three rectangular guideway , with excellent orientation, great earthquake resistance and good stability. It displays its obvious cutting advantage and durability in processing fields such as turn bearing rings and drill bore on Z-axis
2. 45-angle whole slant lathe bed
With the 45-angle oblique layout and hollow tubulose whole lathe bed, it helps to greatly improve the bending resistance and torsional stiffness resiatance of machine tools. The high torsion and stability of lathe bed decides the high precision of lathe itself.
CKX360E - slant bed cnc construction lathe machine Specification:
| Item | CKX360E - Slant Bed lathe machine |
| Max. swing diameter over bed | Φ360 |
| Max. swing diameter over slide | Φ220 |
| Max. processing diameter | 36 |
| Max. processing length | 400 |
| Spindle's rotational speed range | 200--3000 |
| Spindle nose form | A2--6 |
| Spindle form | Independent spindle |
| Spindle motor power | 5.5/7.5 |
| Chuck specification(manual chuck) | Manual three-jaw/8" Hydraulic |
| Spindle bore diameter | Φ53 |
| X-axis max. travel | 300 |
| Z-axis max. travel | 400 |
| X-axis rapid moving speed | 8000 |
| Z-axis rapid moving speed | 8000 |
| Positioning accuracy | 0.015 |
| Repositioning accuracy | 0.007 |
| Processing ellipticity | 0.01 |
| External dimension(length*width*height) | 2100*1500*1700 |
| Net weight | 3700 |
| Standard configurations | Optional configurations |
| CNC system: GSK980TB2 | Taiwan Syntec CNC System |
| AC servo motor | Siemens808D,KND1000TI cnc controller |
| Sleeve spindle | Hydraulic chuck or Pneumatic chuck |
| 8“ 3-jaw Manual chuck,Φ200 | Soft jaws/ 4 jaw chuck |
| 8-station Hydraulic tool turret | Gang tool |
| Automatic electronic pump lubrication, Lighting system | 12-position Hydraulic tool turret |
| Automatic Cooling system | Automatic chip conveyor |

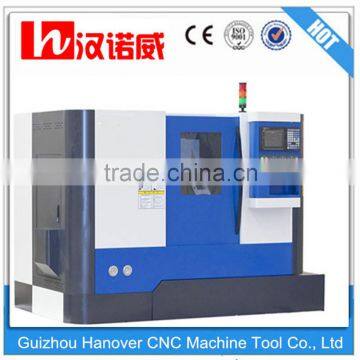

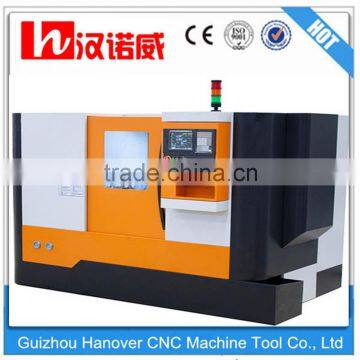

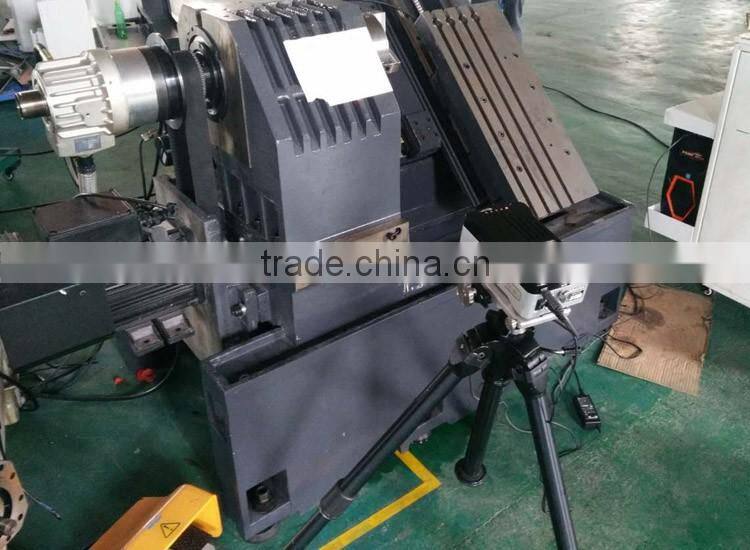

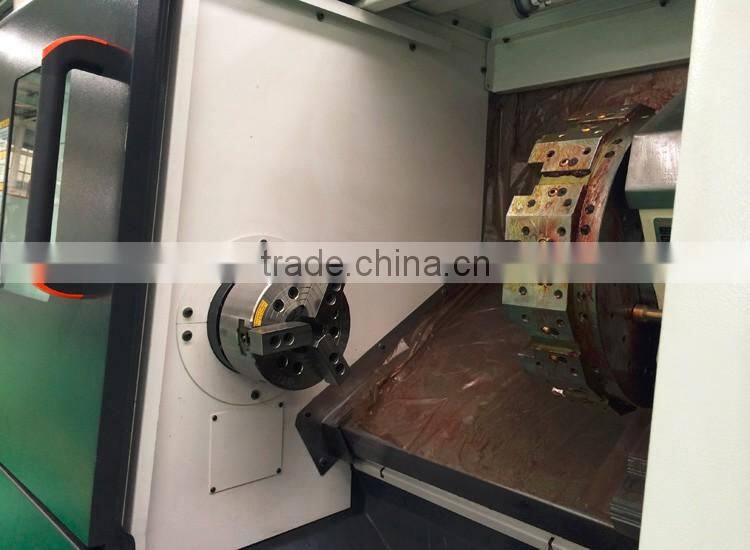

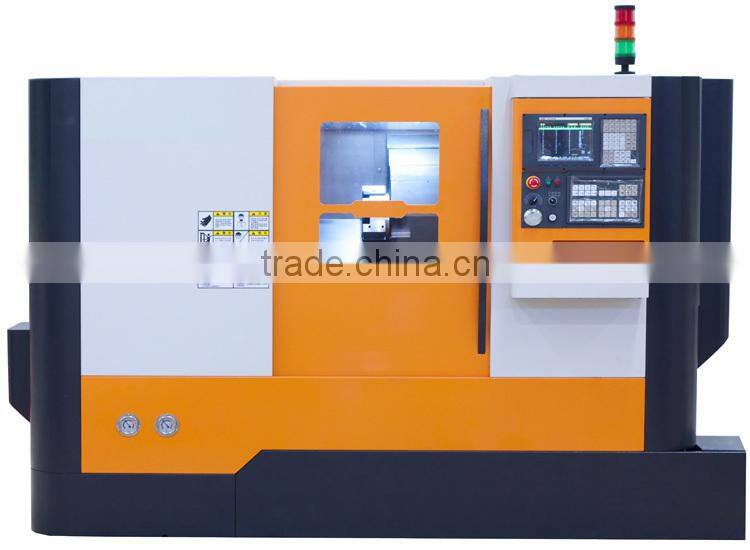

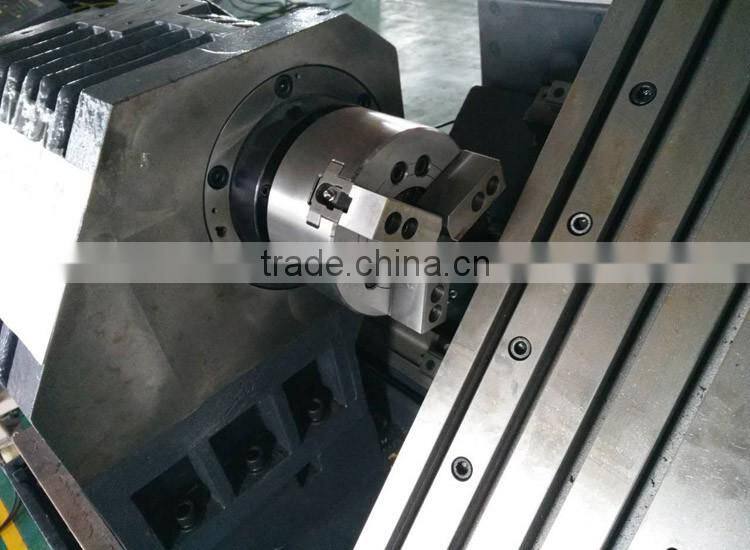

Pictures of CKX360E - slant bed cnc construction lathe machine:

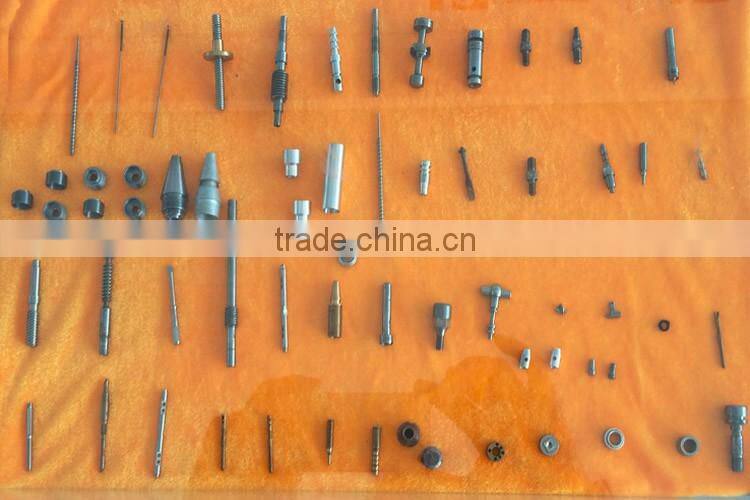

Working samples of the cnc construction lathe machine:
CKX360E - CNC bench lathe machine package:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
Guizhou Hanover CNC Machine Tool Co., Ltd is located in 18 danyang roda,Danzhai County,Guizhou Province, China. Its core members and key staff have specilized in machine tools for over fifteen years. It mainly manufactures and sells complete CNC machine tools such as slant bed CNC lathe, flat bed CNC lathe, turning and milling composite machine, vertical machining center, drilling and tapping machining center etc. It aims to develop in the direction of research and develop and manufacture professional CNC machine tools, industrial automation products and flexible production line. Its products are continuous best-selling with superior quality.
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (Owen).
