The most popular SLANT BED CNC LATHE TSC45L cnc turning center lathes for sale slant bed design with hydraulic tool turret chuck

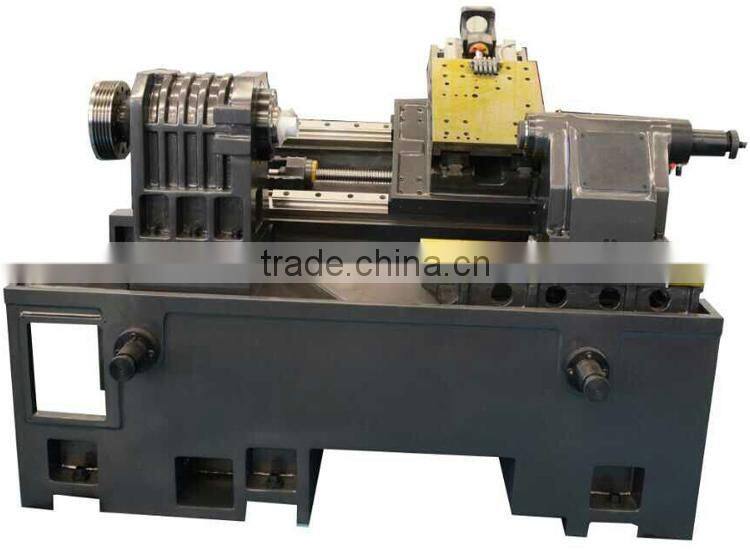

1. With 30-angle or 45-angle oblique layout and hollow tubulose whole lathe bed, bending resistance and torsional stiffness resistance of machine tools when operating have been greatly improved. With twice aging treatment, it has promoted to improve the stability of lathe bed. High-rigidness and high-stability of lathe bed have provided powerful guarantee for complete machine’s high-precision.
2. Feed system have adopted direct connection drive of high-precision rolling ball screw or stick PTFE in the sliding surface or adopt linear guideway directly to eliminate creeping to improve machine tools’ operating precision and enhance moving parts’ abradability and anti-strike ability. At the same time, it could maintain guideway’s precision for long and enhance machine tools’ duration.
TSC45L-Slant bed CNC lathe machine Specifications:
| Item | TSC45L-CNC lathe machine |
| Max. swing diameter over bed(mm) | 560 |
| Max. processing diameter(mm) | 450 |
| Max. processing length(mm) | 500 |
| Spindle's rotational speed range(rpm) | 4200 |
| Spindle nose form | A2-6 |
| Spindle form | bush spindle |
| Spindle motor power(kw) | 11--15 |
| Chuck specification(manual chuck) | 8“ Hydraulic chuck |
| Spindle bore diameter(mm) | Φ66 |
| Barstock diameter(mm) | Φ52(Hollow chuck) |
| X/Z-axes max. travel (mm) | 250/610 |
| X/Z-axes rapid moving speed(m/min) | 24/18 |
| Positioning accuracy(mm) | 0.006 |
| Repositioning accuracy(mm) | 0.003 |
| Workpieces processing accuracy | IT6-IT7 |
| Processing ellipticity | 0.005 |
| Guideway form | Imported linear rail |
| Cutters installation form | Hydraulic turret |
| Cutter position numbers | 8/12 |
| Tool holder size of turning cutters | 20*20 |
| Tailstock | Hydraulic tailstock |
| Tailstock bush taper bore | Mohs4# |
| Tailstock bush diameter(mm) | Φ80 |
| Max. bush travel(mm) | 80 |
| External dimension(length*width*height)(mm) | 2780*1800*1850 |
| Net weight(kg) | 3600 |
| Standard configuration | Optional configuration |
| Single spindle | Siemens808D,KND2000TCi cnc controller |
| Frequency conversion stepless speed regulation | Fanuc oi mate TD,Mitsubishi M70 cnc controller |
| Controller system: GSK988TA1 | Pneumatic chuck,Pneumatic tailstock |

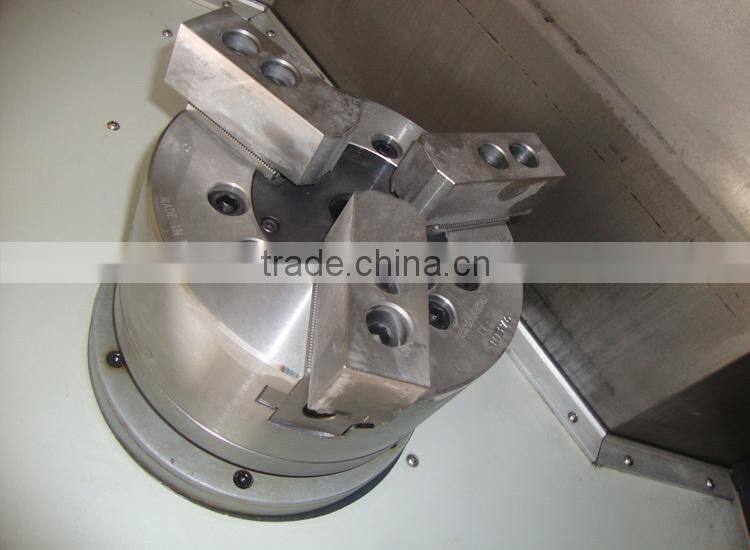

| Hydraulic 3-jaw chuck,hydraulic tailstock | Soft jaws/ 4 jaw chuck |

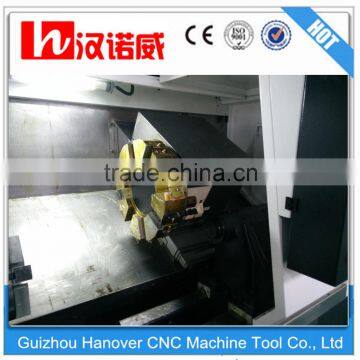

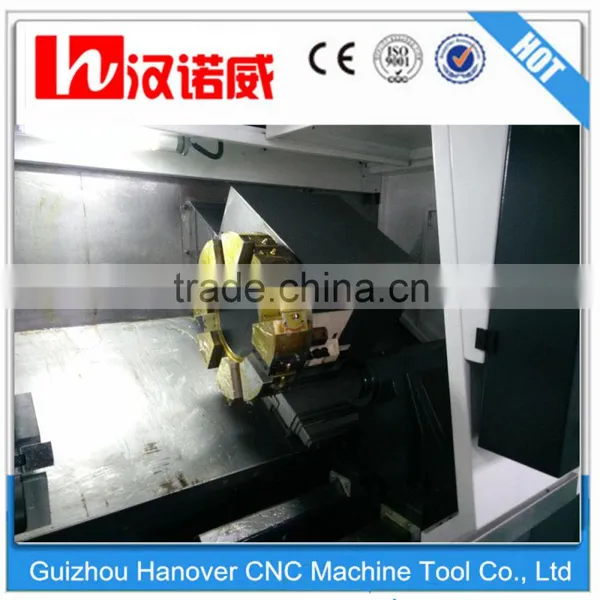

| 8-station Hydraulic tool turret | 12-station Hydraulic tool turret |
| Automatic electronic pump lubrication, Lighting system | Automatic bar feeding |
| Automatic Cooling system | Automatic chip conveyor |

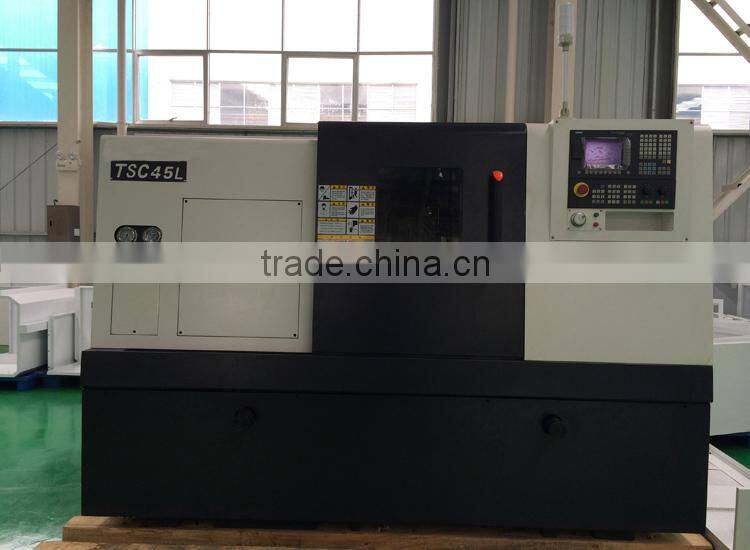

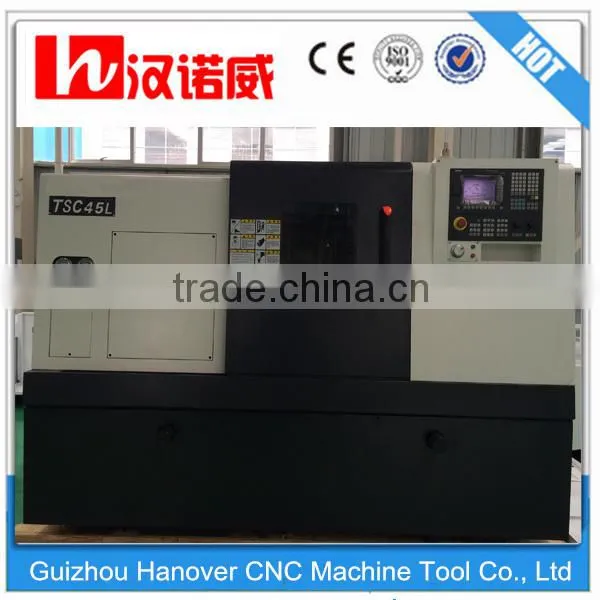

Pictures of TSC45L-Slant bed CNC lathe:
TSC45L-CNC chuck lathe machine packages:
1. Inner package: Plastic spraying, antirust grease and Stretch film
2. Outside package: standard export wooden cases
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
Guizhou Hanover CNC Machine Tool Co., Ltd was founded in 2013,and is located in Jinzhong Economic Development District, Danzhai County, Qiandongnan Canton, Guizhou Province, China. Its core members and key staff have specilized in machine tools for over fifteen years. It mainly manufactures and sells complete CNC machine tools such as slant bed CNC lathe, flat bed CNC lathe, turning and milling composite machine, vertical machining center, drilling and tapping machining center etc. It aims to develop in the direction of research and develop and manufacture professional CNC machine tools, industrial automation products and flexible production line. Its products are continuous best-selling with superior quality.
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (Owen).
If you like,please cantact me immediately and send me enquiry,thanks!
You are welcomed to vist our factory!
