CKX400F Inclined bed CNC Lathe Machine metal turning machine center from China low cost high quality
CKX400F Inclined bed CNC Lathe Machine metal turning machine center from China low cost high quality
1. Adopt independent tube in tube structure spindle unit, equip with dedicated bearing of high-precision spindle, adopt special lubricating greases to lubricate. Decrease greatly thermal deformation of spindle unit, increase thermal stability and accuracy of spindle unit.
2. Famous brands’ developed products are all adopted for CNC systems and drive units. With years’ application, PLC is safe and reliable. The electrical apparatuses are all European brand products with low malfunction rate and long lasting durability.
3. With delicate machine tools assembly techniques and precision correction by laser interferometers and laser ball bars, its mechanical accuracy is far higher than that of the international.
CKX400F--Inclined bed CNC Lathe Machine Specifications:
| Item | CKX400F Inclined bed CNC Lathe |
| Max. swing diameter over bed(mm) | 420 |
| Max. processing length(mm) | 350 |
| Spindle's rotational speed range(rpm/min) | 3500 |
| Spindle motor power(kw) | 7.5/11 |
| Spindle bore diameter(mm) | Φ66 |
| X-axis max. travel | 210 |
| Z-axis max. travel | 450 |
| Positioning accuracy | ≤0.008 |
| Repositioning accuracy | ≤0.004 |
| Workpieces processing accuracy | IT6--IT7 |
| Processing ellipticity | 0.01 |
| Cutter position numbers | 8/12 |
| Input power(kw) | 50Hz 380V |
| External dimension(length*width*height)(mm) | 2400*1700*1700 |
| Net weight(kg) | 2800 |
| Standard configurations | Optional configurations |
| CNC system: GSK980TB2 | Taiwan Syntec CNC System |
| 7.5kw servo motor | Siemens808D,KND1000TI cnc controller |

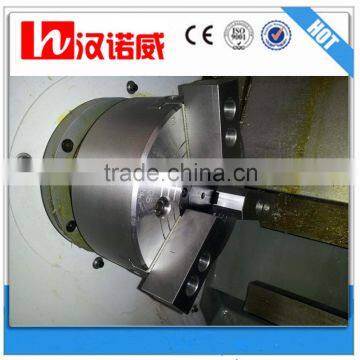

| Sleeve spindle | Hydraulic chuck or Pneumatic chuck |

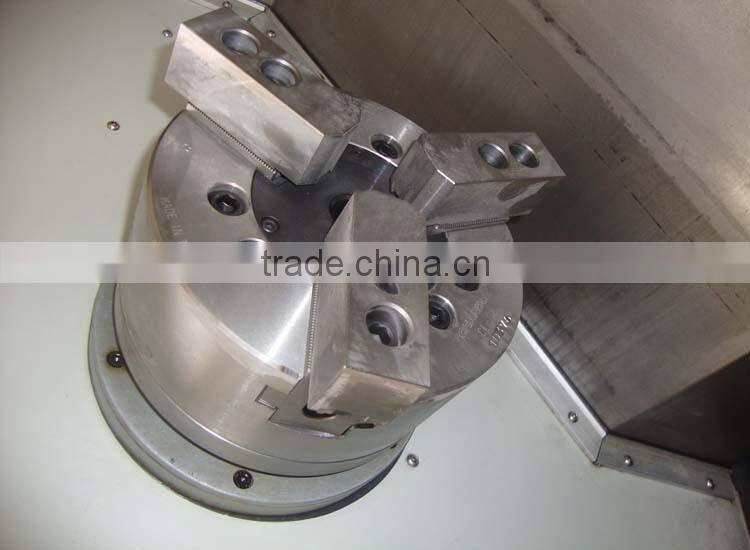

| 8“ 3-jaw chuck, Hydraulic tailstock | Pneumatic tailstock |

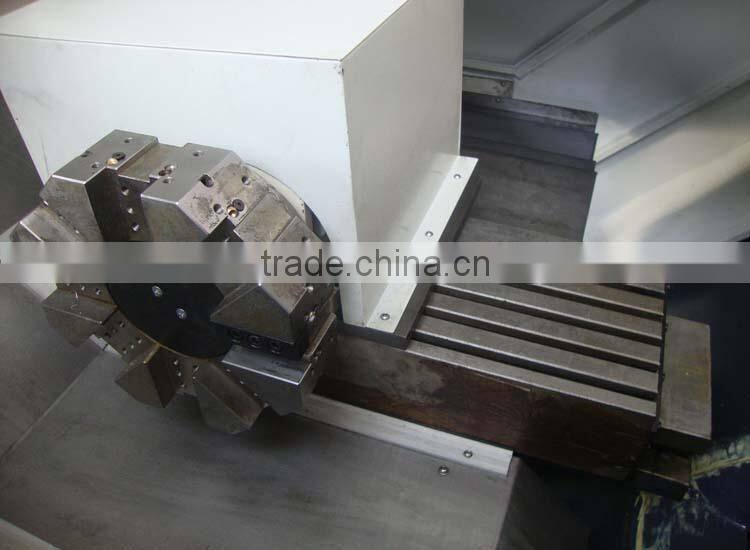

| 8-station Hydraulic tool turret | Soft jaws/ 4 jaw chuck |
| Automatic electronic pump lubrication, Lighting system | 12-position Hydraulic tool turret |
| Automatic Cooling system | Automatic chip conveyor |

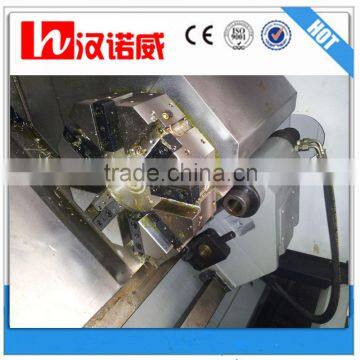

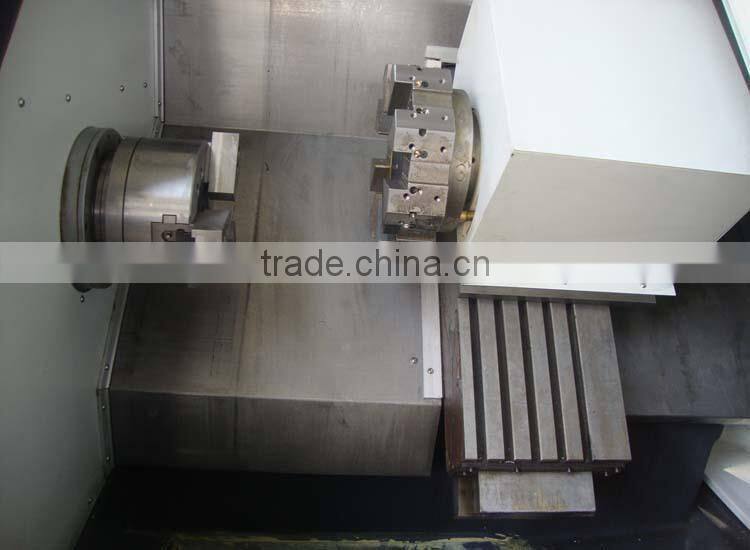

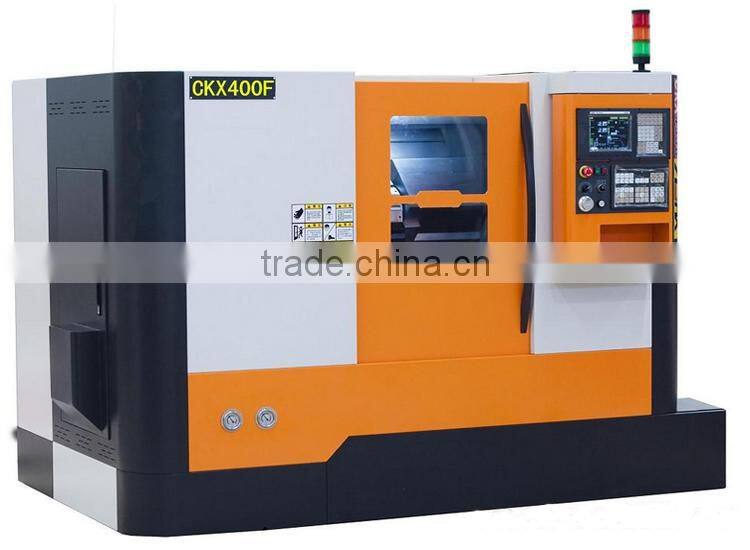

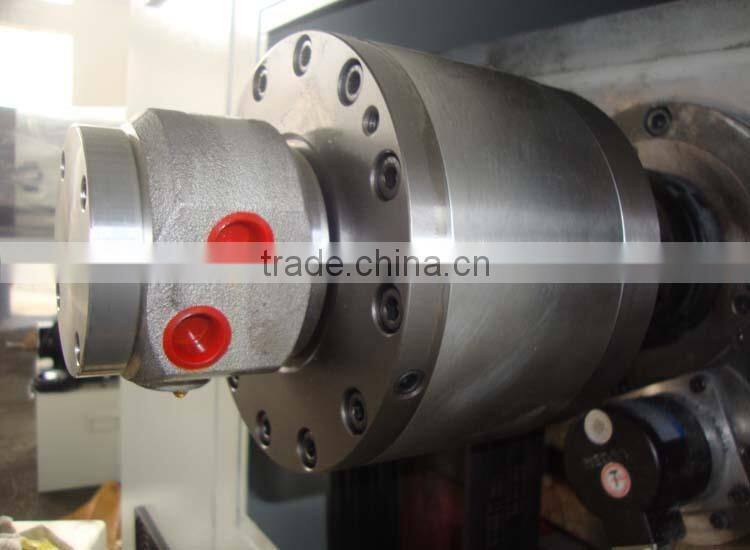

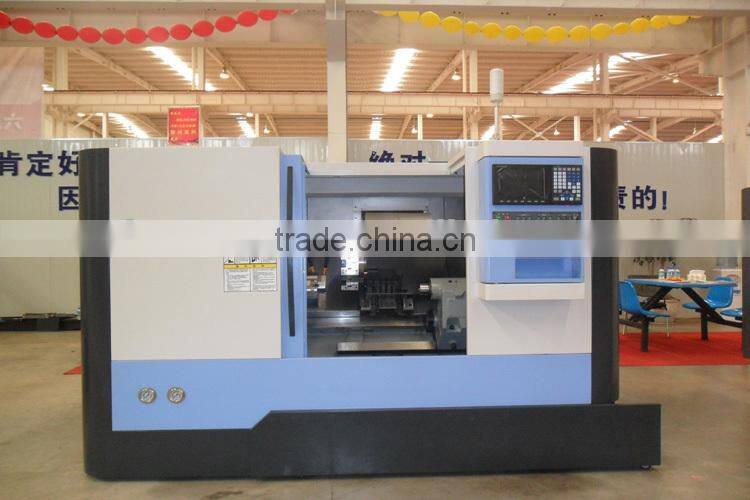

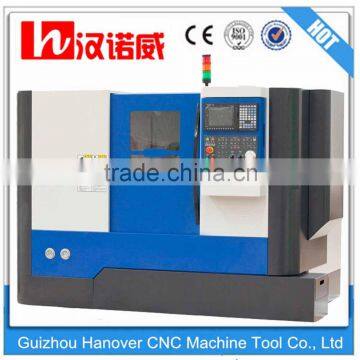

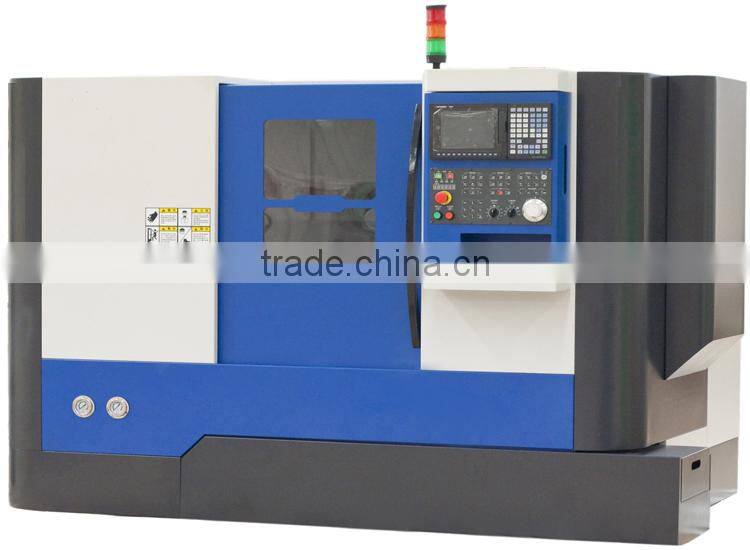

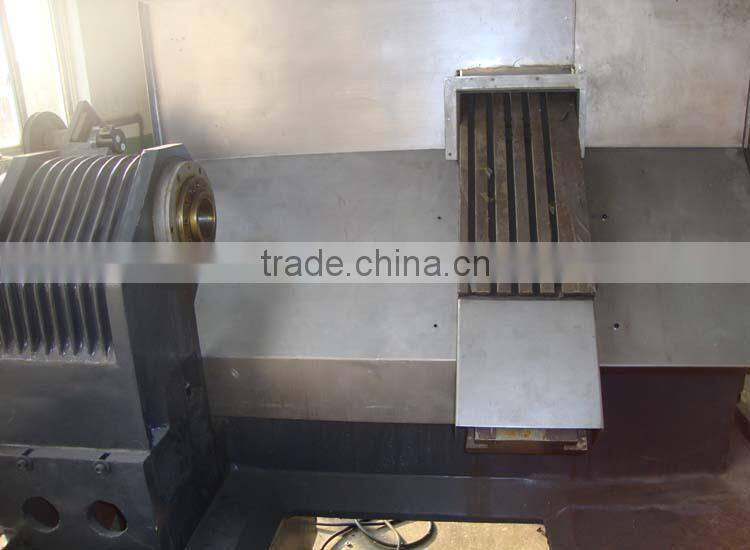

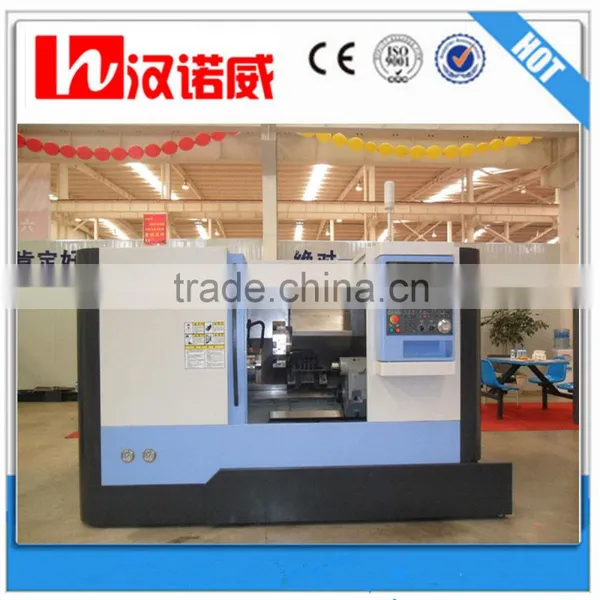

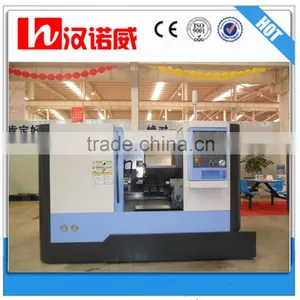

Pictures of CKX400F Inclined bed CNC Lathe:
CKX400F--E-type Slant Bed CNC Lathe packages:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
Guizhou Hanover CNC Machine Tool Co., Ltd was founded in 2013,and is located in Jinzhong Economic Development District, Danzhai County, Qiandongnan Canton, Guizhou Province, China. Its core members and key staff have specilized in machine tools for over fifteen years. It mainly manufactures and sells complete CNC machine tools such as slant bed CNC lathe, flat bed CNC lathe, turning and milling composite machine, vertical machining center, drilling and tapping machining center etc. It aims to develop in the direction of research and develop and manufacture professional CNC machine tools, industrial automation products and flexible production line. Its products are continuous best-selling with superior quality.
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (Owen).
If you like,please cantact me immediately and send me enquiry,thanks!
You are welcomed to vist our factory!
