3D Color Doppler with Convex Probe with CE proved

Specifications

3D Color Doppler with Convex Probe
Scan mode :2D (B mode),TM(M mode),PW,CW.CFM
Display mode
Single frame B/Dual-frame B/Q

Category	Product Name	Model No.
Color Doppler	2D Color Doppler with Convex Probe	iSpark 280
	3D Color Doppler with Convex Probe	iSpark 380
	4D Color Doppler with 4D Real Time Live Probe	iSpark 480
	3D & 4D Color Doppler with 4D Real Time Live Probe	iSpark 480plus

 1. 3D & 4D Color Doppler iSpark 480plus

FULL CLINICAL APPLICATION
3D/4D imaging;
Strain Imaging;
Free-hand 3D;
3D-PW;
Anatomic M Mode;
Trapezoid Imaging;
WFOV;
Color Flow Imaging;
CW;
Power/Directional Power Doppler;
Auto IMT Measurement;
TDI;
THI;
Real Time Triplex;

Clinic Applications
Abdominal, Vascular, OB/GYN, Cardiac, Urology, Breast, Small Parts, Musculoskeletal
Image Modes
B mode, M mode, Color Doppler (CFM), Doppler Spectrum Mode (PWD), Power Doppler Mode

IMAGE FEATURES
1. Display
Display Depth: up to 35cm,
Probe dependent: Convex: 18 steps, Linear: 14 steps
Display Gray Levels: 256; continuous variable contrast and frame rate up to 586/s
Display Format: B, 2B, 4B, M, B/D, B/M, B/C, B/C/MC, B/D, B/P, B/C/D
Image Orientation: Left/right B mode reversal and up/down image invert 90, 1800 rotation
Magnification: Zoom with pan capability in real-time or freeze B, C and M mode
Annotation: Allows the user to annotate anywhere on the image with pre-defined annotation list and anatomical body marks
Screen Display: Display of all patient and exam related imaging parameters, and on-screen documentation of image parameters in single / dual display modes
2. 3D Ultrasound
Offer freehand 3-D ultrasound with user training tools
Offer 3-D viewing and editing slices to remove unwanted tissue structure from arbitrary angles
Offer 3-D display in B-mode and Color Doppler simultaneously
3D Multi-gate Spectrum Doppler
3. 4D package(including Volume probe,4D software,4D hardware)
4. Image Review
CINE Review: Variable speed motion review and frame-by-frame review Storage only limited by internal memory of the system board
Standard: 1,024 B-Mode frame and 170 seconds M-Mode data
Standard: 520 color frames and 380 seconds Doppler Spectrum
Post Procession and measurements
5. Image Management
Storage only limited by hard disk of the system board
Standard: 160 GB hard disk drive for local image storing
CD-RW /DVD Drive as removable read, write, archive & storage, USB, S-Video, VGA
Standard: 2,000 Images w/ TIF format on CD
DICOM & PACs Compatible

2.4D Color Doppler iSpark 480

FULL CLINICAL APPLICATION
4D imaging;
Strain Imaging;
Anatomic M Mode;
Trapezoid Imaging;
WFOV;
Color Flow Imaging;
CW;
Power/Directional Power Doppler;
Auto IMT Measurement;
TDI;
THI;
Real Time Triplex;

Clinic Applications
Abdominal, Vascular, OB/GYN, Cardiac, Urology, Breast, Small Parts, Musculoskeletal

IMAGE FEATURES
1. Display
Display Depth: up to 35cm,
Probe dependent: Convex: 18 steps, Linear: 14 steps
Display Gray Levels: 256; continuous variable contrast and frame rate up to 586/s
Display Format: B, 2B, 4B, M, B/D, B/M, B/C, B/C/MC, B/D, B/P, B/C/D
Image Orientation: Left/right B mode reversal and up/down image invert 90, 1800 rotation
Magnification: Zoom with pan capability in real-time or freeze B, C and M mode
Annotation: Allows the user to annotate anywhere on the image with pre-defined annotation list and anatomical body marks
Screen Display: Display of all patient and exam related imaging parameters, and on-screen documentation of image parameters in single / dual display modes
2. 4D package(including Volume probe,4D software,4D hardware)
3. Image Review
CINE Review: Variable speed motion review and frame-by-frame review Storage only limited by internal memory of the system board
Standard: 1,024 B-Mode frame and 170 seconds M-Mode data
Standard: 520 color frames and 380 seconds Doppler Spectrum
Post Procession and measurements
4. Image Management
Storage only limited by hard disk of the system board
Standard: 160 GB hard disk drive for local image storing
CD-RW /DVD Drive as removable read, write, archive & storage, USB, S-Video, VGA
Standard: 2,000 Images w/ TIF format on CD
DICOM & PACs Compatible

standard CONFIGURATION
iSpark 480 with Two active probe connectors
15 inch high resolution and contrast LCD
4D Real Time Volume Probe
4D package(including 4D software,4D hardware)
3.5 MHz Multi-frequency Convex probe
5120 system processing channels
177 dB dynamic range
Display: B, C, M, CFM(Color Flow Mapping),PWD(Pulse Wave Doppler), PD(Power Doppler), DPI(Directional Power -- Dpower)Pulsed Wave Doppler (PW)
Display mode: B, 2B, 4B, M, B/PWD, B/M, B/C, B/Power, C/Power, B/DPower, C/DPower, B/C/PWD
Scanning Depth: 35cm
Frame: 586 frame/s
DICOM 3.0
160G Hard Disk
DVD RW
Remote system diagnosis and online service



3.3D Color Doppler iSpark 380

General Description
Scanning Techniques
Electronic linear scanning/Convex scanning/Annular array sector scanning/Doppler pencil probe

Scan mode
2D (B mode),TM(M mode),PW,CW.CFM

Display mode
Single frame B/Dual-frame B/Quad-frame B

Cine-loop
282 2D images, 128 color images

Gray Scale/Color Shade
256 white-black gray scale,128 color shade

3D reconstruction technology: provide most practical 3D reconstruction
software packing

Digital image file management and network communication system
160G main unit hard-disk,
Disk and CD memory,
USB connector,
DICOM 3.0 output and input
Ultrasound workstation

Advanced Transducers
Probes for abdomen, cardiology, small parts, perivascular, galactophore, paediatric, muscle cadre, endocavitary (vaginal, rectum), transcranial
Probe characteristic: exceed wide frequency band (1.5-18MHz) multi-frequency
Probe types: Convex, Linear, Annular sector, Pencil
Probe application: Multi-frequency, Multi-technology (M.M.T)
Excellent Image Quality

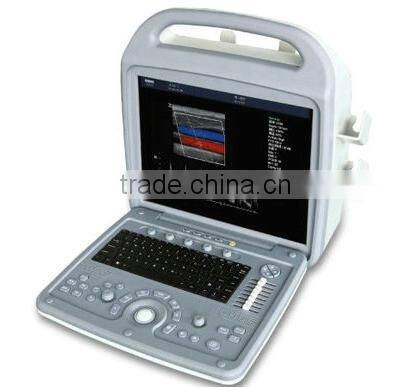

4.2D Laptop Color Doppler iSpark 280



Application
Abdomen, maternity, urology, superficial organization, peripheral vascular, small organ, cavity and other interventional screening and therapeutic use

Features
- Electronic linear array/convex array/micro-convex/phased array scanning
- The dynamic color doppler (CFM), color doppler energy figure (CPD)
- Pulsed doppler (PW), continuous doppler (CW)
- The heart, blood vessel function measurement packages measuring software packages
- General adult and children the heart, diagnosis and treatment of abdominal, gynecology and obstetrics, urology, pediatrician, endocrine division, etc
- Peripheral vascular, small organs (breast, eye, esophagus, muscle, etc) transcranial, during, puncture, etc
- Single frame B/double frame B / 4 frame B, M or B + M, CFM + M, CFM + fig. 3 MCAO
- Digital transmit and receive imaging
- Automatic filter out the blood vessels color doppler spillover, make the image more realistic, and bright
- Improve the color doppler CFM and energy CPD sensitivity
- Complete control of the software beam-forming device
- Faster processing speed, more abundant information
- Organization secondary harmonic imaging
- Expand imaging
- USB interface, network transmission function

Standard Configuration

Main unit with 2 active probe connectors
15" high resolution and contrast LCD Display
2D Standard Package
3.5Mhz multi-frequency Convex probe
Measurement & calculation software packages (General, Small parts, OB&GYN, Urology)

Optional
7.5Mhz multi-frequency Linear probe
6.5Mhz multi-frequency Trans vaginal probe
5.0Mhz multi-frequency Micro-convex probe
