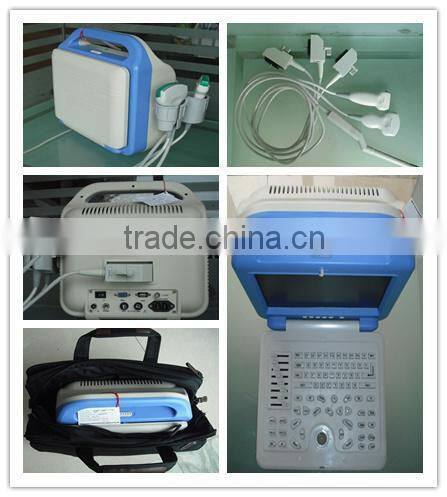

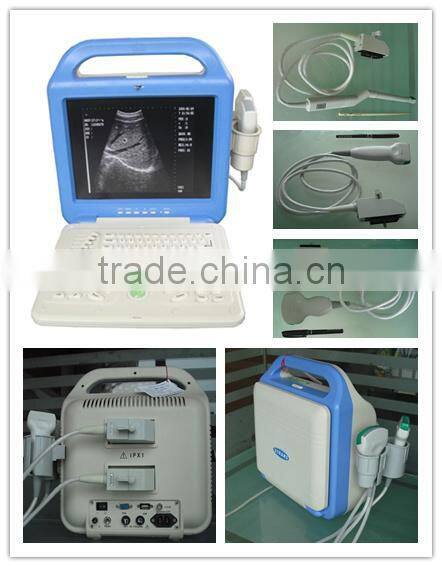

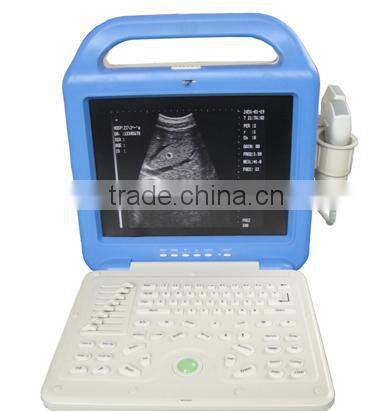

Portable LCD Display Ultrasound Scanner AJ-6100B LCD
- Shanghai
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Vital Signs Patient Monitor(3 Parameters)
-
Full Digital Laptop Ultrasound Scanner AJ-6000Plus
-
ISpark 480plus 3D & 4D Color Doppler
-
3D and 4D Color Doppler With 4D Real Time Live Probe ISpark 480plus/option Trans-vaginal Array Probe (180)
-
Protein Electrophoresis Cell DYCZ-24DN
-
Trolley LCD Display Ultrasound Scanner AJ-6100F
Product Details
| Type | Doppler Ultrasound Equipment | Brand Name | ANJUE | |
| Model Number | AJ-6100B LED | Place of Origin | Anhui, China |
Product Description
Specifications
1.Trolley Ultrasound Scanner2.Scanning mode: Convex, Linear
3.8-Segment TGC adjustment
Portable LCD Display Ultrasound Scanner AJ-6100B LCD
Features
Powerful measurement & calculation software packages
8-Segment TGC ABD Trackball adjustment
10 inch LCD monitor
OB measurements: BPD, GS, CRL, FL, AC, HC, etc
Permanent function of image store: 32 images
Back-lit keyboard
2 probe connectors
Probe automatic identification
Real time pseudo color image display
Specification
Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Body marks: 18;
Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time & froze;
Image conversion: up/down, left/right, black/white;
Function of puncture guide;
Max dynamic range>=100db;
Detecting depth>=190mm, scanning depth>=240mm;
The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;
Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<170mm);
Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<160mm);
Per: 4-stage per function;
Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;
Fixed characters and real-time clock and calendar display;
Software reset function;
Printer function: can connect laser printer and Video printer directly;
Comment: Date, Name, Sex, Age, Hospital, Annotation;
Zooming: *1.0, *1.2, *1.5, *2.0;
Port: USB 2.0, VGA, Video connector;
Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;
USB Function of image store: more than Sixteen thousand images;
Power supply: AC 110V-240V, 50HZ/60HZ;
Probe connector: 2;
USB/VGA/ ports;
Video connector;
Measurement
General menu: Distance, Area, Volume, Angle, Ellipse;
Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight;
Heart menu: Distance, Time, Slope, Rhythm;
Standard Configuration
Main unit 1set;
10 inches LCD monitor 1pc;
60R/3.5MHZ Convex array probe(2.0/3.5/4.5/5.0/5.5/6.5/7.5MHz) 1pc;
Power line 1pc;
Ground line 1pc;
Fuse 4 pc;
User’s manual in English 1pc;
Warranty card 1pc;
Options
L40/7.5MHZ Linear array probe (7.5/8.5/10.5MHz);
20R/5.0MHZ Micro-Convex array probe (4.0/5.0/5.5MHz);
13R/6.5MHZ Trans-vaginal array probe (5.5/6.5/7.5MHz);
7.5MHZ Trans-rectal probe (5.5/6.5/7.5MHz);
Video Printer
