3D & 4D Color Doppler with 4D Real Time Live Probe iSpark 480plus

GENERAL DESCRIPTION

Color Doppler iSpark 480plus is the fruit of innovative technologies, not only professionally support 3D/4D, Strain imaging and Wide field of view etc. high end functions, but also with 3D-PW, adaptive sound optimization, coded excitation and auto IMT etc innovative imaging processing technologies. Ergonomic design is devoting to facilitate exams in a wide variety of clinical environments. Comfort, convenience, scanning flexibility and efficiency is what iSpark 480plus would like to provide to you.

FULL CLINICAL APPLICATION

3D/4D imaging;

Strain Imaging;

Free-hand 3D;

3D-PW;

Anatomic M Mode;

Trapezoid Imaging;

WFOV;

Color Flow Imaging;

CW;

Power/Directional Power Doppler;

Auto IMT Measurement;

TDI;

THI;

Real Time Triplex;



Clinic Applications

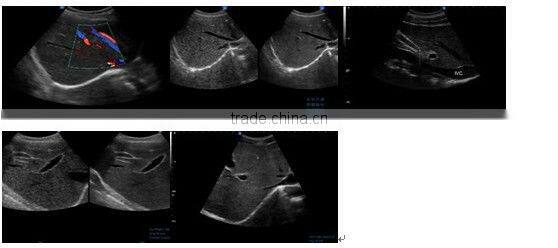

Abdominal, Vascular, OB/GYN, Cardiac, Urology, Breast, Small Parts, Musculoskeletal

Image Modes

B mode, M mode, Color Doppler (CFM), Doppler Spectrum Mode (PWD), Power Doppler Mode

Measurements & Calculations

OB : HR, Velocity(D), Accel, Auto Trace, Point Trace, RI, SI, M Trace(L), M Trace(H), Velocity(C), CRL, BPD, HC, AC, FL, OFD, HL, GS, Radius, Ulna, Tibia, Fibula, N.B.L, AFI…

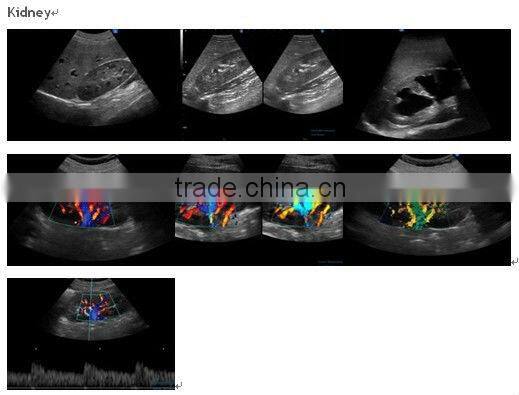

Radiology: Peak Sys, Peak Dys, Mean, Time, HR, Velocity(D), Accel, Auto Trace, Point Trace, RI, SI, M Trace(L), M Trace(H), Flow Velocity, D Flow, T Flow, Lt. Kidney, Rt. Kidney, IMT…..

Cardiac: AR, LVOP, TR, PUL.VALVE, PUL.VEIN, RV, BF, LVET, Time, HR, Auto Trace, Point Trace, LAD/AOD, MPAD, RVEDd, RVEDs, LVM, BSA(Input), HR(Input)……

Vascular: VFD,VFA, Time, HR, Velocity(D), Accel, Auto Trace, Point Trace, RI, SI, M Trace(L), M Trace(H), Velocity(C), IMT, %DST, %AST, Dist, Area, Ellipse, Cross, Angle, Dist Ratio……

GYN: Uterine, Cervix, UT_L/CX_L, Lt.Ovary, Rt.Ovary, Endo L, DO Follicle, Uterus Body, Dist, Area , Ellipse, Cross, Angle, Dist Ratio, Para, M Trace(L), M Trace(H)…….

Small Part: HR, Accel, Velocity(D), Auto Trace, Point Trace, RI, SI, M Trace(L), M Trace(H), Dist, Rt.Thyroid, Lt.Thyroid, Area, Ellipse, Angle, Para, Dist Ratio, Diameter……

Urology: Lt.AG, Lt.AG, Lt.Testicle, Lt.Testicle, Lt.Sperm, Lt.Sperm, Rud.Urine, Prostate, Auto Trace, Point Trace, Accel, HR, RI, SI, Diameter, Joint Angle



IMAGE FEATURES

1. Display

Display Depth: up to 35cm,

Probe dependent: Convex: 18 steps, Linear: 14 steps

Display Gray Levels: 256; continuous variable contrast and frame rate up to 586/s

Display Format: B, 2B, 4B, M, B/D, B/M, B/C, B/C/MC, B/D, B/P, B/C/D

Image Orientation: Left/right B mode reversal and up/down image invert 90, 180⁰ rotation

Magnification: Zoom with pan capability in real-time or freeze B, C and M mode

Annotation: Allows the user to annotate anywhere on the image with pre-defined annotation list and anatomical body marks

Screen Display: Display of all patient and exam related imaging parameters, and on-screen documentation of image parameters in single / dual display modes

2. 3D Ultrasound

Offer freehand 3-D ultrasound with user training tools

Offer 3-D viewing and editing slices to remove unwanted tissue structure from arbitrary angles

Offer 3-D display in B-mode and Color Doppler simultaneously

3D Multi-gate Spectrum Doppler

3. 4D package(including Volume probe,4D software,4D hardware)

4. Image Review

CINE Review: Variable speed motion review and frame-by-frame review Storage only limited by internal memory of the system board

Standard: 1,024 B-Mode frame and 170 seconds M-Mode data

Standard: 520 color frames and 380 seconds Doppler Spectrum

Post Procession and measurements

5. Image Management

Storage only limited by hard disk of the system board

Standard: 160 GB hard disk drive for local image storing

CD-RW /DVD Drive as removable read, write, archive & storage, USB, S-Video, VGA

Standard: 2,000 Images w/ TIF format on CD

DICOM & PACs Compatible







standard CONFIGURATION

1. iSpark 480 with Two active probe connectors
2. 15 inch high resolution and contrast LCD
3. 4D Real Time Volume Probe
4. 4D package(including 4D software,4D hardware)
5. 3D software(B mode)
6. 3.5 MHz Multi-frequency Convex probe
7. 5120 system processing channels
8. 177 dB dynamic range
9. Display: B, C, M, CFM(Color Flow Mapping),PWD(Pulse Wave Doppler), PD(Power Doppler), DPI(Directional Power -- Dpower)Pulsed Wave Doppler (PW)
10. Display mode: B, 2B, 4B, M, B/PWD, B/M, B/C, B/Power, C/Power, B/DPower, C/DPower, B/C/PWD
11. Scanning Depth: 35cm
12. Frame: 586 frame/s
13. DICOM 3.0
14. 160G Hard Disk
15. DVD RW
16. Remote system diagnosis and online service



STANDARD SPEICAL FUNCTIONS

1. Coded Excitation
2. Trapezoid Imaging
3. Automatic Intimate media thickness (IMT) Measurement
4. Tissue Harmonic Imaging(THI-phase)
5. Spatial Compounding Imaging (SCI)
6. Tissue Restoration Image (SRA+Structure enhancement)
7. 2D Color flow estimation
8. Color Zoom
9. Synthetic Aperture
10. Wide Field of View (WFOV) Imaging
11. Automatic Sound Speed Optimization
12. Crystal imaging



Optional

1. Free Steering M software
2. 3D Multi-gate Spectrum Doppler
3. Elastic (Strain) Imaging
4. Cardiac function package(including TDI, Strain Rate Imaging, HPRF Imaging)
5. DICOM ultrasound work station(including Main unit ,software, monitor)
6. DICOM ultrasound work station(including software and monitor)
7. Three probe sockets

OPTIONAL PROBES

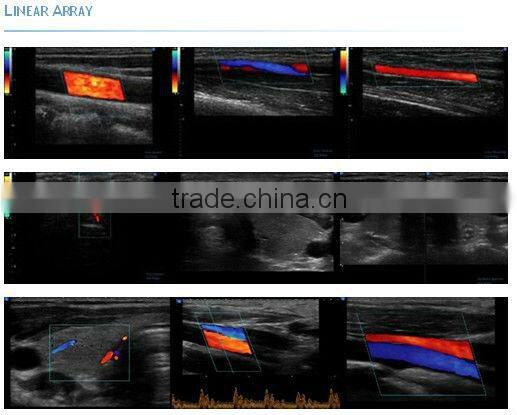

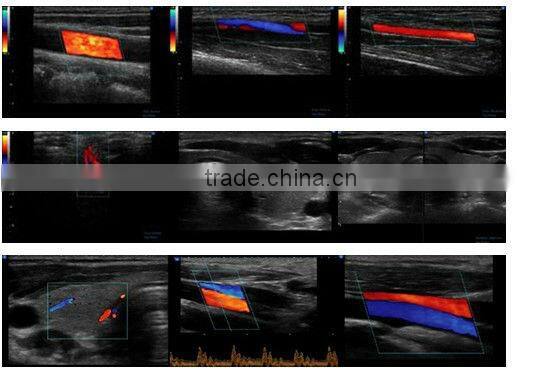

1. Linear probe

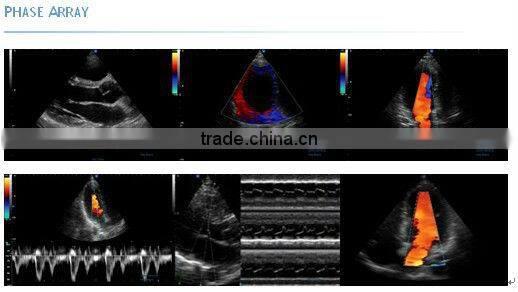

2. Phased Array Probe
3. Trans-vaginal ArrayProbe (180°)
