Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
thefirsttool
Model Number:
TZ20000MZG
Contact Supplier Request Quote Chat Now
Shenzhen Zhouyu Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name thefirsttool
Model Number TZ20000MZG



Company Information
Shenzhen Zhouyu Intelligent Technology Co., Ltd., — Brand :Thefirsttool

We are specializes in the research and development, production and sales of intelligent education tools.  Our mini machines and  classic 6 in 1 kit  are widely applied in teaching, model making and family DIY.
We have in this line with rich experience and also win popular market. As the most specialized manufacturer of intelligent education tools, we have always been basing our survival on our product quality, and our market share has been gradually rising, now ranking at the top of the list.

By using the intelligent machines of Zhouyu education / thefirsttool series, we can :foster children's innovative awareness  ;considerably promote children's subjective initiative and hands-on skills ; stimulate children's creative enthusiasm ; fully satisfy children's curiosity.

THE ! FIRST ! TOOL ! Which makes it possible to release the immagination giving you the possibility to create. The "thing" only depends on YOU !





China supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateur





Features:

1.Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.

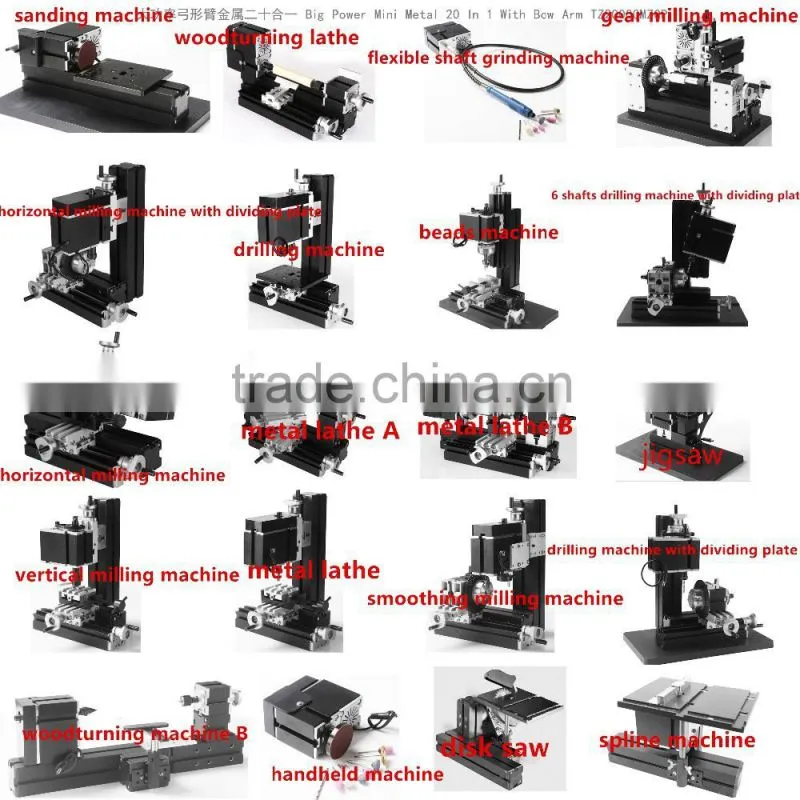

The parts in the kit can be assembled into 20 kinds of machines with different function: bow-arm jigsaw, lathe, drilling machine with dividing plate, wood-turning lathe, drilling machine, milling machine, sanding machine, hand-held machine, gear milling machine, metal lathe B, horizontal milling machine, six shafts drilling and milling machine, flexible shaft sanding machine, milling machine A, beads machine, rotating lathe, big woodturning machine, edge trimmer, disk saw, gear milling machine A ,only one kind of machine can be assembled each time.

2.Main parts: headstock, central block, jigsaw base, jigsaw casing, motor blade, gear, woodturning chisel base, cross slider, big slider, drilling lever, drilling table, jigsaw table, connection piece, tailstock, sanding paper panel, dividing positioner, vice(all of the parts above are made of metal), drive belt cover, grinding wheel, wheel guard.

Technical parameters:



  • 1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
  • 2.Input voltage/current/power:12VDC/5A/70W,
  • Switching power input: 110V—240V
  • 3.Jigsaw working table size:90mm*90mm
  • 4.Maximum working material diameter of metal lathe and woodturning lathe:50mm
  • 5.Working material length of metal lathe and woodturning lathe:135mm
  •  6.Center height of metal lathe:75mm
  • 7. Slider travel: axis X 145, axis Y 32, axis Z 32
  •  8.Collets:1-6mm
  •  9. Drilling working table size: 123*100mm
  • 10. Maximum workpiece size clamped by vice:50mm
  • 11. Maximum bead’s diameter:20mm
  •  12.Maximum cutting thickness of circular saw:23mm
  •  13. Axis Z of 6 shafts dividing machine can spin 180 degrees
  •  14. Maximum workpiece diameter clamped by three-jaw chuck:50mm
  •  15. There are three circles of holes on the dividing plate and each circle with the same ratio holes. The number of the holes on each circle is respectively 36,40,48. We can choose them as needed.
  •  16.Maximum wood bar diameter of woodturning lathe B:150mm
  • 17.Flexible shaft grinding machine can grind workpieces under any angle.
  • 18. All of the machines are safe touch except milling machines. It requests to be used under parents or teachers instruction when the milling machine is being used by the kids. Working material thickness of jigsaw: hardwood 4mm, plywood 7mm, soft wood 18mm, aluminum 0.5mm, acrylic 2mm. It is a good tool for families and schools to do model airplane and other wood model crafts.

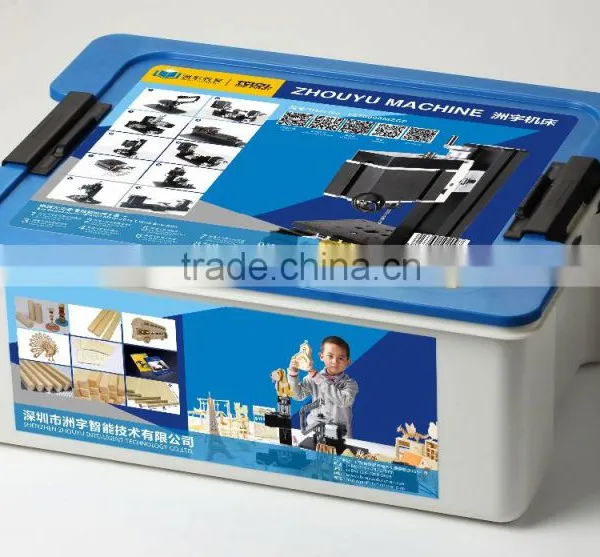

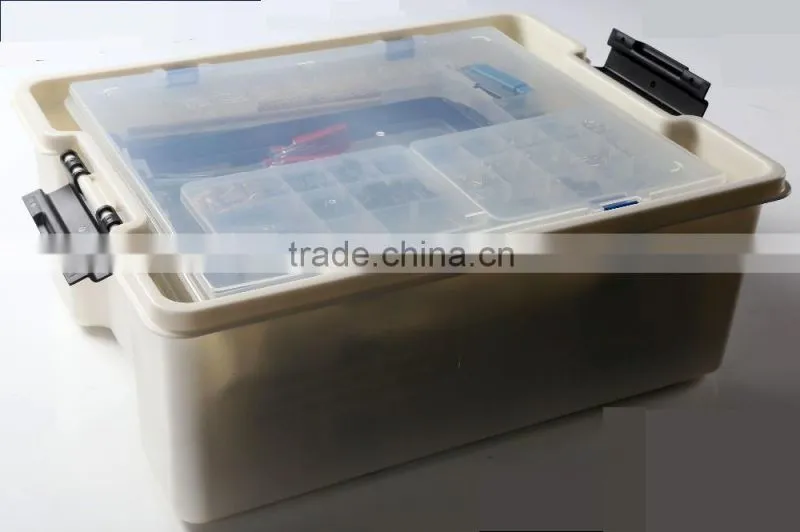

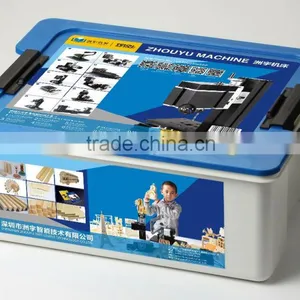

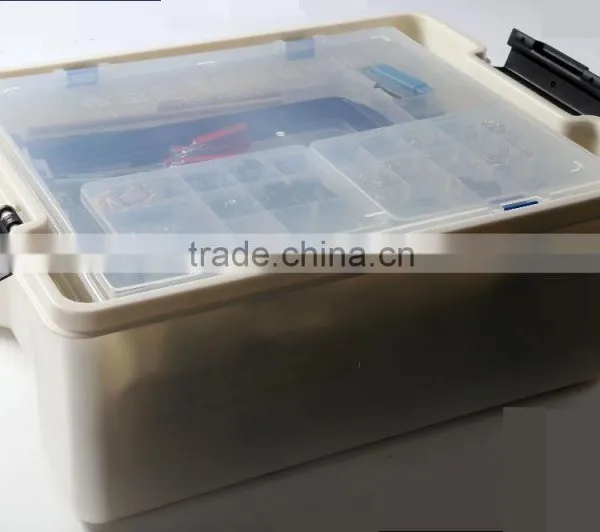

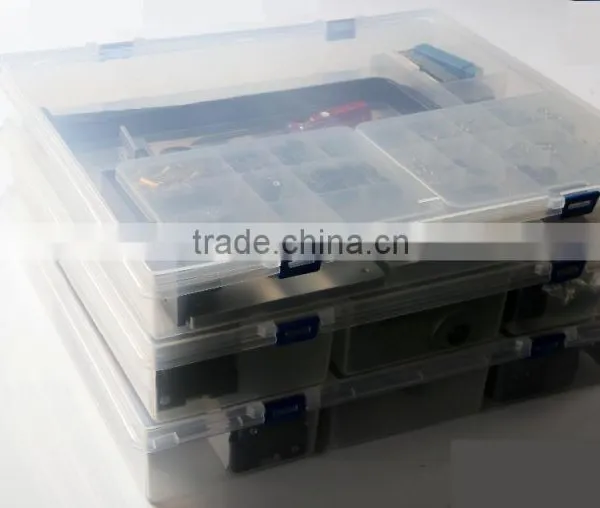

  •  18. The outer package, called as storage box, is made of plastic , not foam. Inside of the storage box, there are 3 transparent food-grade plastic box containing machine parts and other 2 transparent food-grade plastic box containing screws.



With the good package, it is much easier for the students to store the machine parts and it also increases the machines service life.

Remark: to put the certain parts in a certain place, we designed 6 locating slots in the storage box and each locating slots is completely covered by the locating block . Therefore, the machine parts will be well packed and easily taken out.

China supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateur

China supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateurChina supplier newest design Big Power Mini Metal 20 In 1 With Bow Arm cooltool for hobby amateur

  • 1 × Metal 20 In 1 machine kit
  • 1 × Operating Manual
