multipurpose Big Power 60W Electroplated Mini Metal 8 In 1 Kit cooltool for DIY hobby
Features:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.

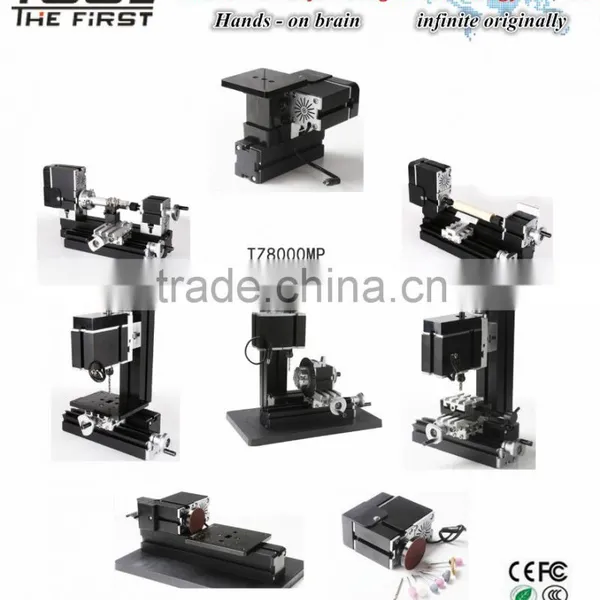

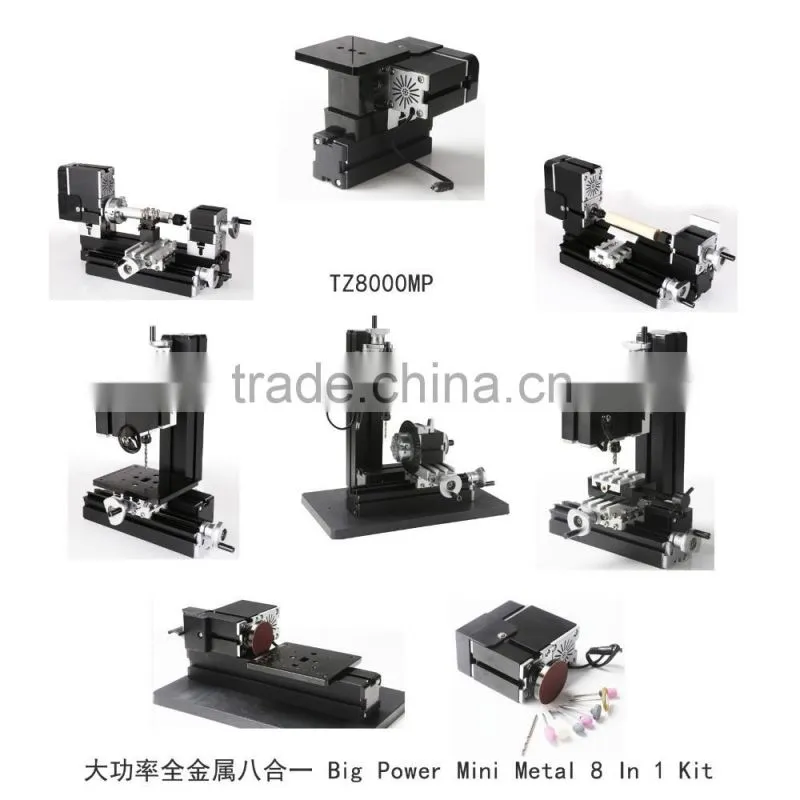

The parts in the kit can be assembled into 8 kinds of machines with different function: jigsaw, wood-turning lathe, metal lathe, milling machine, drilling machine, sanding machine, hand-held machine, drilling machine with dividing plate, only one kind of machine can be assembled each time.

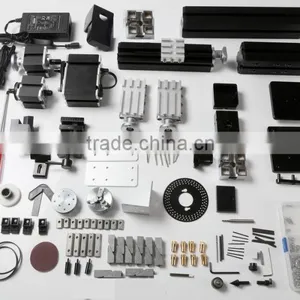

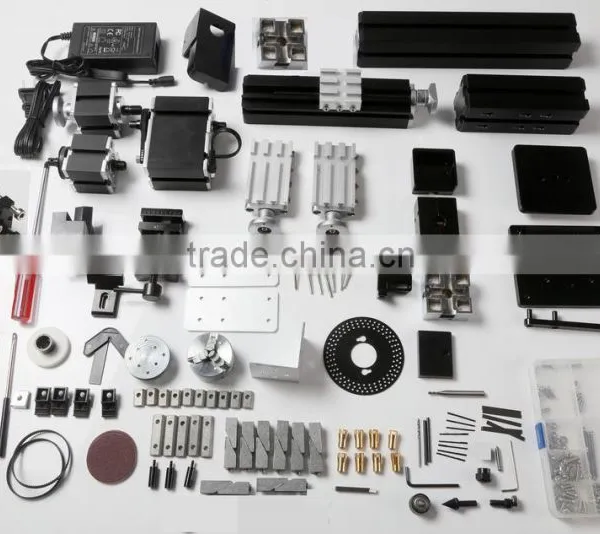

2.Main parts: headstock, central block, jigsaw base, jigsaw casing, motor blade, gear, woodturning chisel base, cross slider, big slider, drilling lever, drilling table, jigsaw table, connection piece, tailstock, sanding paper panel, dividing positioner, vice(all of the parts above are made of metal), drive belt cover, grinding wheel, wheel guard.
Technical parameters:
- 1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
- 2.Input voltage/current/power:12VDC/5A/60W,
- Switching power input: 110V—240V
- 3.Jigsaw working table size:90mm*90mm
- 4.Maximum working material diameter of metal lathe and woodturning lathe:50mm
- 5.Working material length of metal lathe and woodturning lathe:135mm
- 6.Center height of metal lathe:50mm
- 7. Slider travel: axis X 145, axis Y 32, axis Z 32.
- 8.Collets:1-6mm
- 9. Drilling working table size: 123*100mm
- 10. Maximum workpiece size clamped by vice:50mm
- 11. Maximum workpiece diameter clamped by three-jaw chuck:50mm
- 12. There are three circles of holes on the dividing plate and each circle with the same ratio holes. The number of the holes on each circle is respectively 36,40,48. We can choose them as needed.
- 13. All of the machines are safe touch except milling machines. It requests to be used under parents or teachers instruction when the milling machine is being used by the kids.
Working material thickness of jigsaw: hardwood 4mm, plywood 7mm, soft wood 18mm, aluminum 0.5mm, acrylic 2mm. It is a good tool for families and schools to do model airplane and other wood model crafts.

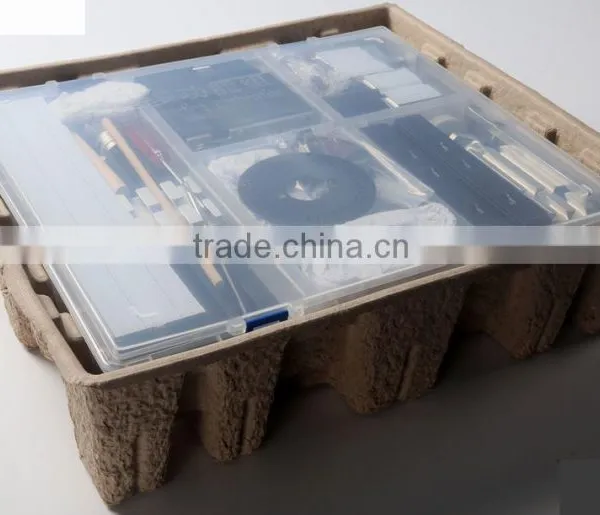

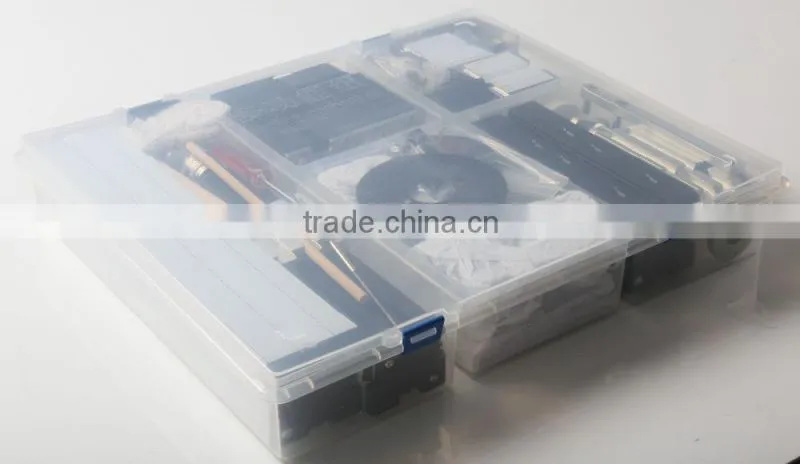

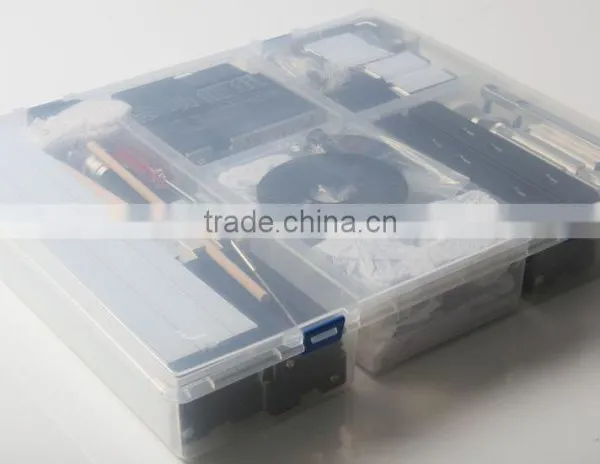

- 1 × Big Power Mini Metal 8 In 1 Kit
- 1 × Operating Manual
