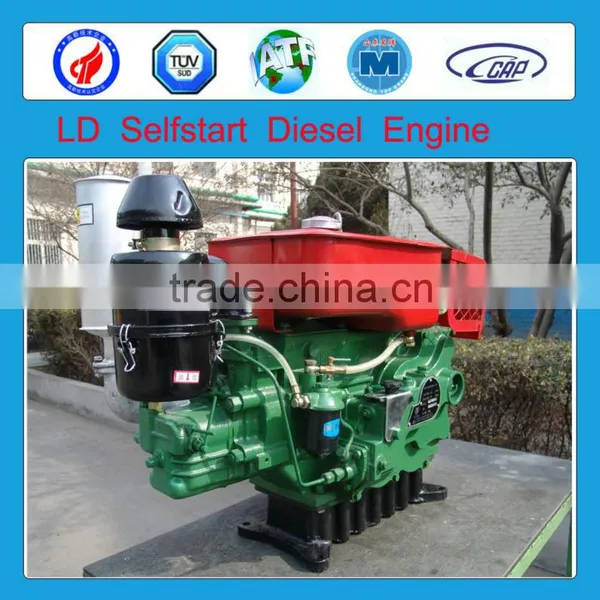

LD Series Single Cylinder Diesel Engine LD1110 LD1115

Name: LD Series Single Cylinder Diesel Engine LD1110 LD1115
Brand: XINYA
SKU: 101748343
Availability: InStock

US$ 290 - 330 MOQ: 84 Sets

Key Specifications

Type:

Other, complete engine

Use:

Tractors

Place of Origin:

Shandong, China

Shandong Liaocheng Yitong Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Other, complete engine

Use Tractors

Place of Origin Shandong, China

Brand Name XINYA

Model Number single cylinder diesel engine

Specifications

single cylinder diesel engine
1.MOQ:84 sets
2.Material:high bearing steel
3.Power:23/25HP
4.Logo: XINYA

Product Name: Single Cylinder Diesel Engine

Mainly Products of YITONG

1.nozzle:P type, S type, PD type, SD type, Common Rail, Yanma type, Marine, CAT type

2.plunger:A type, AD type, P type, PS type, PW type, MW type, Yanmar, Marine

3.delivery valve: A type, P type, VE type, OVE type, Equal pressure, Marine type

4.rotor head: VE type, DPA type, LUCAS type

ntrol valve: BF15, DELPHI 9308-621C, DENSO series

6.diesel engine: LD type, SD type, KM type

r, control piston parts, spare parts, repair kits, relief valve.

Diesel Engine Specification

Material	high bearing steel
Color	silvery
Size	standard
Logo	Your brand printed
MOQ	84 sets
OEM	Accepted
Certification	Available
Package	one nozzle in a plastic bottle, ten nozzle in a box,40 boxes in a carton.
Delivery	within 15 working days after receipt of payment
Payment	TT, Westion Union, L/C

Diesel Engine Details

Model Specification
		Unit	LD1110	LD1115	KM130	KM138
Type		Horizontal type, single, cylinder, four-stork, water-cooling
Cylinder diameter × stroke		mm	110×115	115×115	118×118	122×118
Displacement		L	1.093	1.194	1.29	1.38
Model of combustion chamber			Direct-injection
Compressure chamber			16~18	16~18	17	17
	1 Hour Power	kw/r(min)	14.7/2200	16.2/2200	17.6/2200	18.4/2200
Power
	12 Hour Power	kw/r(min)	13.2/2200	14.7/2200	16.2/2200	17.6/2200
Specific fuel consumption		g/kw.h	≤242.1	≤242.1	≤242.1	≤242.1
Specific oil consumption		kg/h	≤0.036	≤0.040	≤0.044	≤0.048
Max torque		N.m	≥64.2	≥78.8	≥85.6	≥89.4
Lubricating method		Combined pressure and splashing
Cooling method		Water-cooling or hopper cooling
Starting method		Cranking or electric starting
Net weight		Kg	230	230	230	230
Overall dimension		mm	820 x 530 x 750	820 x 530 x 750	820 x 530 x 750	820 x 530 x 750
length×width×height
