High Quality Single Cylinder Diesel Engine

Name: High Quality Single Cylinder Diesel Engine
Brand: XINYA
SKU: 101748407
Availability: InStock

US$ 290 - 330 MOQ: 84 Sets

Key Specifications

Type:

Other, complete engine

Use:

Tractors

Place of Origin:

Shandong, China

Shandong Liaocheng Yitong Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Other, complete engine

Use Tractors

Place of Origin Shandong, China

Brand Name XINYA

Model Number single cylinder diesel engine

Specifications

single cylinder diesel engine
1.MOQ:84 sets
2.Material:high bearing steel
3.Power:23/25HP
4.Logo: XINYA

Product Name: Single Cylinder Diesel Engine

Mainly Products of YITONG

1.nozzle:P type, S type, PD type, SD type, Common Rail, Yanma type, Marine, CAT type

2.plunger:A type, AD type, P type, PS type, PW type, MW type, Yanmar, Marine

3.delivery valve: A type, P type, VE type, OVE type, Equal pressure, Marine type

4.rotor head: VE type, DPA type, LUCAS type

ntrol valve: BF15, DELPHI 9308-621C, DENSO series

6.diesel engine: LD type, SD type, KM type

r, control piston parts, spare parts, repair kits, relief valve.

Diesel Engine Specification

Material	high bearing steel
Color	silvery
Size	standard
Logo	Your brand printed
MOQ	84 sets
OEM	Accepted
Certification	Available
Package	one nozzle in a plastic bottle, ten nozzle in a box,40 boxes in a carton.
Delivery	within 15 working days after receipt of payment
Payment	TT, Westion Union, L/C

Diesel Engine Details

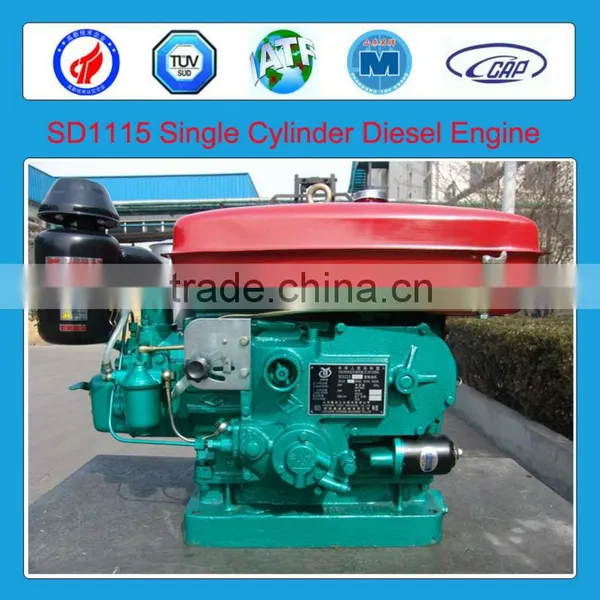

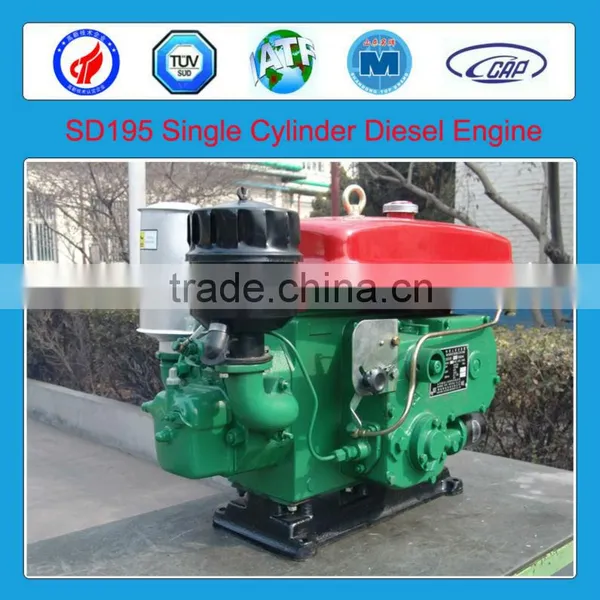

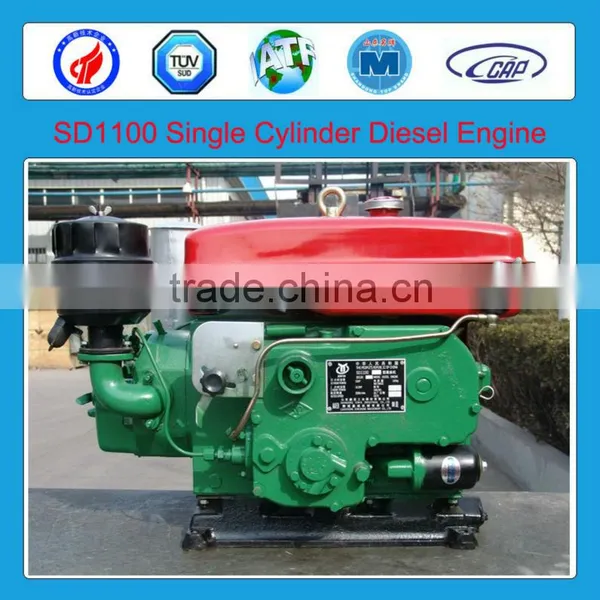

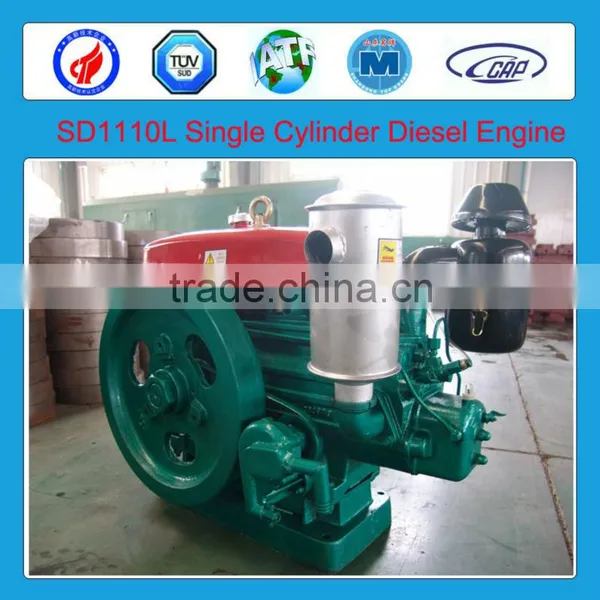

The Model of SD Diesel Engine
Model specification		Unit
			SD195	SD1100	SD1100B	SD1105	SD1110	SD1110L	SD1115
Type		Horizontal type, single, cylinder, four-stork, water-cooling
Cylinder diameter × stroke		mm	95×115	100×115	100×115	105×115	110×115	110×125	115×125
Displacement		L	0.815	0.903	0.093	0.996	1.093	1.18	1.298
Model of combustion chamber			Swirl chamber			Direct-injection
Compressure chamber			19~20	20	20	16.5	16.5	17.5	17.5
Power	1 Hour Power	kw/r(min)	9.7/2200	12.1/2200	12.1/2200	13/2200	14.7/2200	16.17/2200	17.6/2200

	12 Hour Power	kw/r(min)	8.8/2200	11/2200	11/2200	11.76/2200	13.2/2200	14.66/2200	16.2/2200
Specific fuel consumption		g/kw.h	≤262.5	≤262.5	≤262.5	≤250.2	≤250.2	≤250.2	≤250.2
Specific oil consumption		kg/h	≤0.024	≤0.030	≤0.030	≤0.032	≤0.036	≤0.040	≤0.044
Max torque		N.m	≥47.06	≥53.4	≥53.4	≥57.1	≥64.1	≥71.4	≥78.7
Lubricating method		Combined pressure and splashing
Cooling method		Water-cooling or hopper cooling
Starting method		Hand Cranking or electric starting
Net weight		Kg	195	200	200	215	220	225	230
Overall dimension		mm	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	820 x 530 x750	820x530x750
length×width×height									880x530x750
