Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115

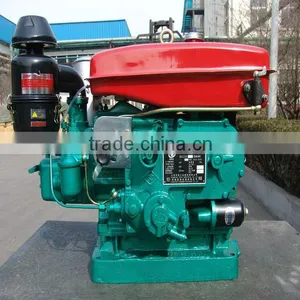

Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115 thumbnail-1
Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115 photo-1
US$ 290 - 330 MOQ: 84 Sets
Key Specifications
Get Latest Price
Type:
Other, complete engine
Use:
Tractors
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Shandong Liaocheng Yitong Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, complete engine
Use Tractors
Place of Origin Shandong, China
Brand Name XINYA
Model Number single cylinder diesel engine

Specifications

single cylinder diesel engine
1.MOQ:84 sets
2.Material:high bearing steel
3.Power:23/25HP
4.Logo: XINYA

  Product Name: Single Cylinder Diesel Engine



Mainly Products of YITONG



1.nozzle:P type, S type, PD type, SD type, Common Rail, Yanma type, Marine, CAT type



2.plunger:A type, AD type, P type, PS type, PW type, MW type, Yanmar, Marine



3.delivery valve: A type,  P type, VE type, OVE type, Equal pressure, Marine type



4.rotor head: VE type, DPA type, LUCAS type



ntrol valve: BF15, DELPHI 9308-621C, DENSO series



6.diesel engine: LD type, SD type, KM type



r, control piston parts, spare parts, repair kits, relief valve.



Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115







Diesel Engine Specification



Material high bearing steel
Color silvery
Size standard
Logo Your brand printed
MOQ 84 sets
OEM Accepted
Certification Available
Package one nozzle in a plastic bottle, ten nozzle in a box,40 boxes in a carton.
Delivery within 15 working days after receipt of payment
Payment TT, Westion Union, L/C



Diesel Engine Details



The Model of SD Diesel Engine
         Model                   specification Unit
SD195 SD1100 SD1100B SD1105 SD1110 SD1110L SD1115
Type Horizontal type, single, cylinder, four-stork, water-cooling
Cylinder diameter × stroke mm 95×115 100×115 100×115 105×115 110×115 110×125 115×125
Displacement L 0.815 0.903 0.093 0.996 1.093 1.18 1.298
Model of combustion chamber   Swirl chamber Direct-injection
Compressure chamber   19~20 20 20 16.5 16.5 17.5 17.5
Power 1 Hour Power kw/r(min) 9.7/2200 12.1/2200 12.1/2200 13/2200 14.7/2200 16.17/2200 17.6/2200
12 Hour Power kw/r(min) 8.8/2200 11/2200 11/2200 11.76/2200 13.2/2200 14.66/2200 16.2/2200
Specific fuel consumption g/kw.h ≤262.5 ≤262.5 ≤262.5 ≤250.2 ≤250.2 ≤250.2 ≤250.2
Specific oil consumption kg/h ≤0.024 ≤0.030 ≤0.030 ≤0.032 ≤0.036 ≤0.040 ≤0.044
Max torque N.m ≥47.06 ≥53.4 ≥53.4 ≥57.1 ≥64.1 ≥71.4 ≥78.7
Lubricating method Combined pressure and splashing
Cooling method Water-cooling or hopper cooling
Starting method Hand Cranking or electric starting
Net weight Kg 195 200 200 215 220 225 230
Overall dimension mm 820 x 530 x750 820 x 530 x750 820 x 530 x750 820 x 530 x750 820 x 530 x750 820 x 530 x750 820x530x750
length×width×height 880x530x750

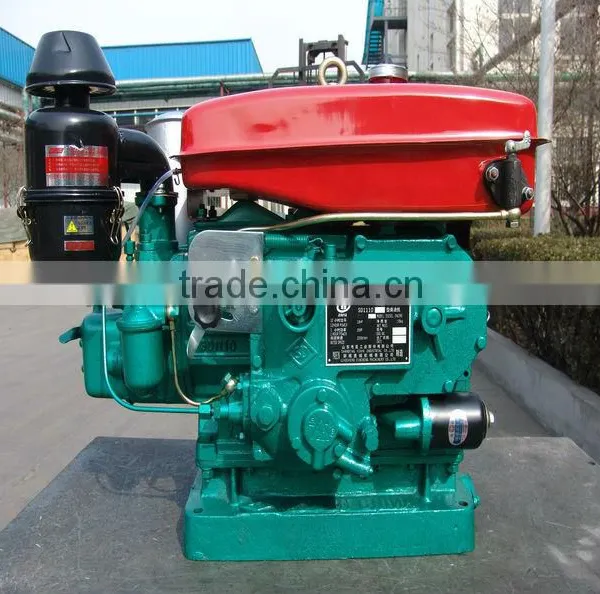

Photo Shows for Reference



Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115



Product Payment&Delivery Terms



 1.Sample order and min order is accepted.



2.Delivery:by sea shippment



3.Payment terms:Westion Union, T/T,L/C.



4.Delivery time:stocked within 5 days, out of stocks within 14 days.



5.Large order depends on the production plan and will be arranged ASAP.



Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115



Our Certification



1.ISO9001



2.ISO9002



3.Certification of  ISO/TS16949 Quality Management System.



4.Certification of Vehicle Products of CCAP.



Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115



Order Process



Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115



Mission & Objective of Yitong

1.Zero Defect Quality,Zero Customer Complaints



2.To be a best professional supplier in the line of diesel engine parts.



Our Promises

1.Reply to your inquiries in 3 working hours



2.Your detail requirement will be responded within 24 hours.



3.Your needs will always be treated as our our top priority.



4.Keep contacting until the goods arrived safely.



5.You can contact me any time while you have questions and demands.



 Agriculture Single Cylinder Diesel Engine SD1100 SD1110 SD1115





 More details please refer our web:
