LD Series Diesel Engine 22HP

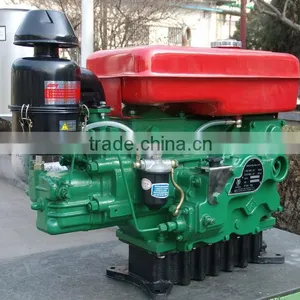

LD Series Diesel Engine 22HP thumbnail-1
LD Series Diesel Engine 22HP photo-1
US$ 290 - 330 MOQ: 84 Sets
Key Specifications
Get Latest Price
Type:
Other, complete engine
Use:
Tractors
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Shandong Liaocheng Yitong Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, complete engine
Use Tractors
Place of Origin Shandong, China
Brand Name XINYA
Model Number diesel engine 22hp

Specifications

1.SD type/ LD type/ KM type diesel engine
able of single cylinder diesel engine
3.low price and best price
4OEM offer



Diesel Engine Specification

 1.22HP  single cylinder diesel engine

2.195kg to 230kg net weight

able goods

4.stable performance

5.low price with high quality

6.welcome to our factory buy diesel engine





                                           Yt diesel spare parts



Shandong liaocheng Yitong Import&Export Trading Co.,Ltd is located in the beautiful Chinese water city-Liaocheng. It has a 43 years history in manufacturing fuel injection parts.We specialise in developing and producing fuel injection pumps, fuel injectors, precision parts of fuel systems, such as nozzles , plungers , delivery valves, rotor heads used on passenger buses, trucks, tractors, agricultural and earthmoving machines, stationary and marine engines.







We have advanced equipments and technique, full testing machines, very strong technical capabilities. And we have large production scale and morden management.







Our products enjoy good sales in the USA, Europe, Africa,the Middle east and Souhteast Asia and East Asia. What’s more we have a good reputation with our clients.







Moreover we have many kinds of packing, such as wax,plastic nylon,color boxes and other materials to meet clients’ demands.







Any question please don’t hesitate to contact me.







We welcome all the customers and will give you the best price, best quality and best service.









Diesel Engine Details



Model                           Specification
Unit LD1110 LD1115 KM130 KM138
Type Horizontal type, single, cylinder, four-stork, water-cooling
Cylinder diameter × stroke mm 110×115 115×115 118×118 122×118
Displacement L 1.093 1.194 1.29 1.38
Model of combustion chamber   Direct-injection
Compressure chamber   16~18 16~18 17 17
  1 Hour Power kw/r(min) 14.7/2200 16.2/2200 17.6/2200 18.4/2200
Power
  12 Hour Power kw/r(min) 13.2/2200 14.7/2200 16.2/2200 17.6/2200
Specific fuel consumption g/kw.h ≤242.1 ≤242.1 ≤242.1 ≤242.1
Specific oil consumption kg/h ≤0.036 ≤0.040 ≤0.044 ≤0.048
Max torque N.m ≥64.2 ≥78.8 ≥85.6 ≥89.4
Lubricating method Combined pressure and splashing
Cooling method Water-cooling or hopper cooling
Starting method Cranking or electric starting
Net weight Kg 230 230 230 230
Overall dimension mm 820 x 530 x 750 820 x 530 x 750 820 x 530 x 750 820 x 530 x 750
length×width×height
FOB PRICE USD 290 305 320 330

 Eletric starting: price add 54.5 dollars

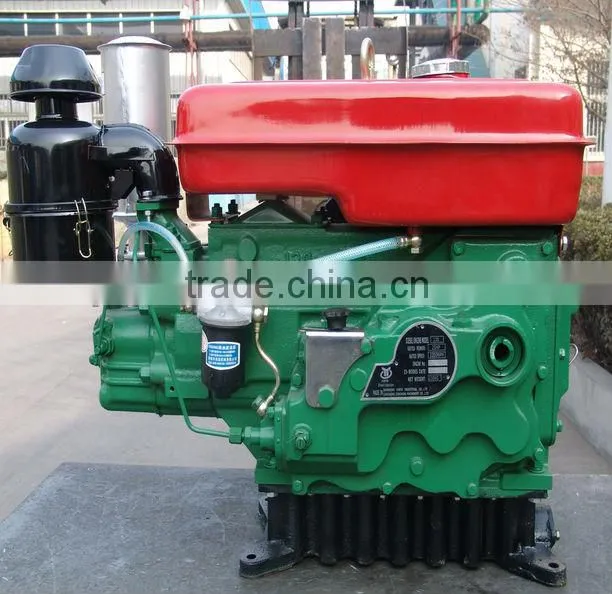

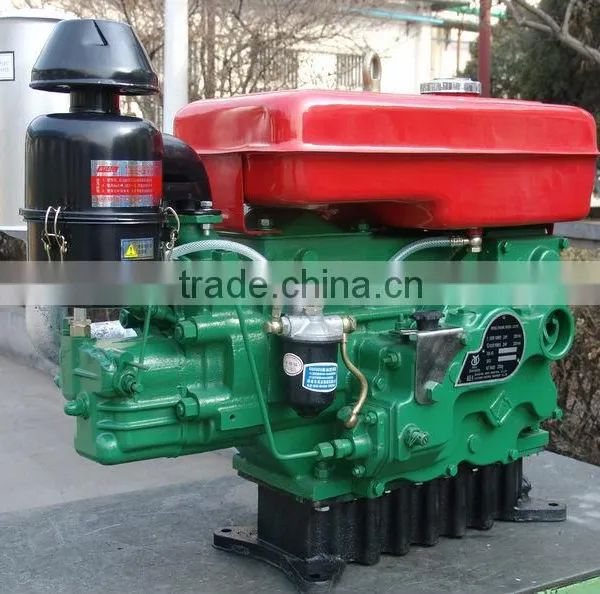

Photo Shows for Reference

LD Series Diesel Engine 22HPLD Series Diesel Engine 22HP



LD Series Diesel Engine 22HP

LD Series Diesel Engine 22HP



Product Payment Terms

 1.A ccepted small order.

2.Ready to delivery by sea, TNT,DHL,as soon as receipt of payment.

3.We accept T/T,Western Union, L/C.



Mission & Objective of Yitong

1.Zero Defect Quality,Zero Customer Complaints

2.To be a best professional supplier in the line of diesel engine parts.



Our Promises

1.Reply to your inquiries in 3 working hours

2.Your detail requirement will be responded within 24 hours.

3.Your needs will always be treated as our our top priority.

4.Keep contacting until the goods arrived safely.

5.You can contact me any time while you have questions and demands.

 LD Series Diesel Engine 22HP
