SD Series Agriculture Diesel Engine
US$ 265 - 285
MOQ: 84 Sets
Key Specifications
Get Latest Price
Type:
Other, DIESEL ENGINE, SD Diesel Engine
Use:
Harvesters
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LD Series Single Cylinder Agriculture Diesel EngineUS$ 290 - 330MOQ: 87 Sets -
Diesel HEAD ROTORUS$ 7.55 - 31.85MOQ: 18 Pieces
-
Single Cylinder Diesel EngineUS$ 210 - 335MOQ: 87 Sets
-
SD Series Agriculture Diesel EngineUS$ 210 - 255MOQ: 87 Sets
-
LD Series Agriculture Diesel EngineUS$ 290 - 355MOQ: 87 Sets
Type
Other, DIESEL ENGINE, SD Diesel Engine
Use
Harvesters
Place of Origin
Shandong, China
Brand Name
XINYA
Model Number
SD1110
Description of SD Diesel Engine
The Model of SD Diesel Engine | |||||||||
| Model specification | Unit | ||||||||
| SD195 | SD1100 | SD1100B | SD1105 | SD1110 | SD1110L | SD1115 | |||
| Type | Horizontal type, single, cylinder, four-stork, water-cooling | ||||||||
| Cylinder diameter × stroke | mm | 95×115 | 100×115 | 100×115 | 105×115 | 110×115 | 110×125 | 115×125 | |
| Displacement | L | 0.815 | 0.903 | 0.093 | 0.996 | 1.093 | 1.18 | 1.298 | |
| Model of combustion chamber | Swirl chamber | Direct-injection | |||||||
| Compressure chamber | 19~20 | 20 | 20 | 16.5 | 16.5 | 17.5 | 17.5 | ||
| Power | 1 Hour Power | kw/r(min) | 9.7/2200 | 12.1/2200 | 12.1/2200 | 13/2200 | 14.7/2200 | 16.17/2200 | 17.6/2200 |
| 12 Hour Power | kw/r(min) | 8.8/2200 | 11/2200 | 11/2200 | 11.76/2200 | 13.2/2200 | 14.66/2200 | 16.2/2200 | |
| Specific fuel consumption | g/kw.h | ≤262.5 | ≤262.5 | ≤262.5 | ≤250.2 | ≤250.2 | ≤250.2 | ≤250.2 | |
| Specific oil consumption | kg/h | ≤0.024 | ≤0.030 | ≤0.030 | ≤0.032 | ≤0.036 | ≤0.040 | ≤0.044 | |
| Max torque | N.m | ≥47.06 | ≥53.4 | ≥53.4 | ≥57.1 | ≥64.1 | ≥71.4 | ≥78.7 | |
| Lubricating method | Combined pressure and splashing | ||||||||
| Cooling method | Water-cooling or hopper cooling | ||||||||
| Starting method | Hand Cranking or electric starting | ||||||||
| Net weight | Kg | 195 | 200 | 200 | 215 | 220 | 225 | 230 | |
| Overall dimension | mm | 820 x 530 x750 | 820 x 530 x750 | 820 x 530 x750 | 820 x 530 x750 | 820 x 530 x750 | 820 x 530 x750 | 820x530x750 | |
| length×width×height | 880x530x750 | ||||||||

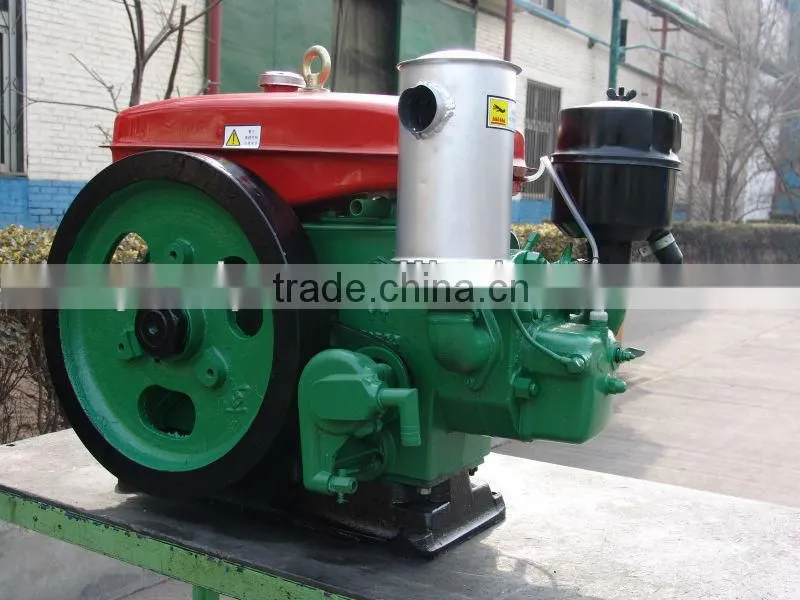

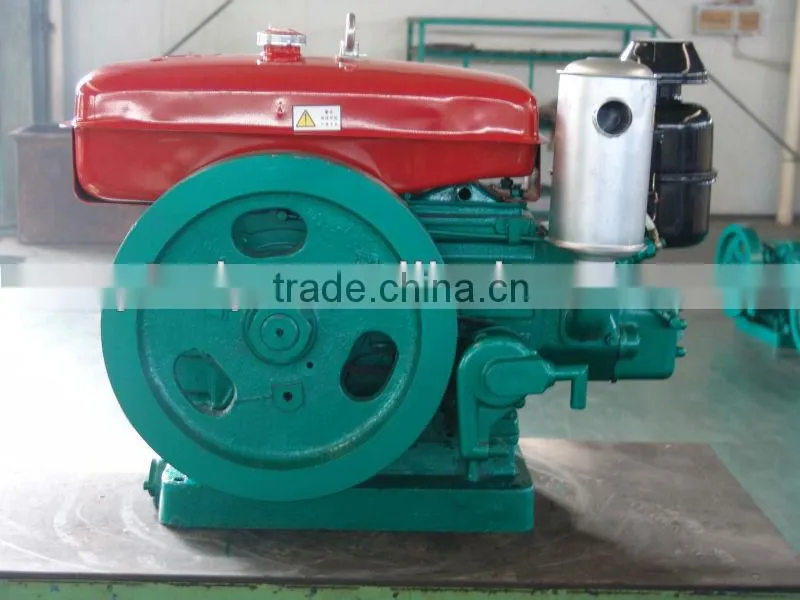

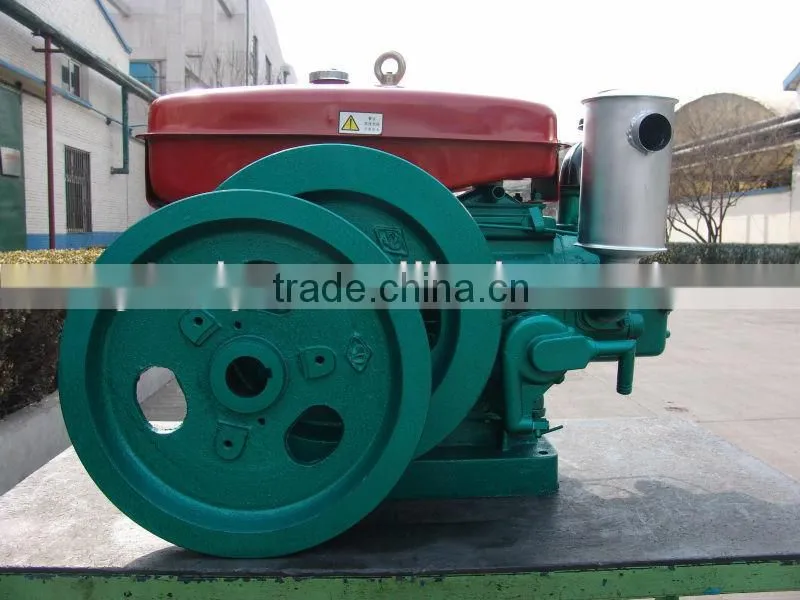

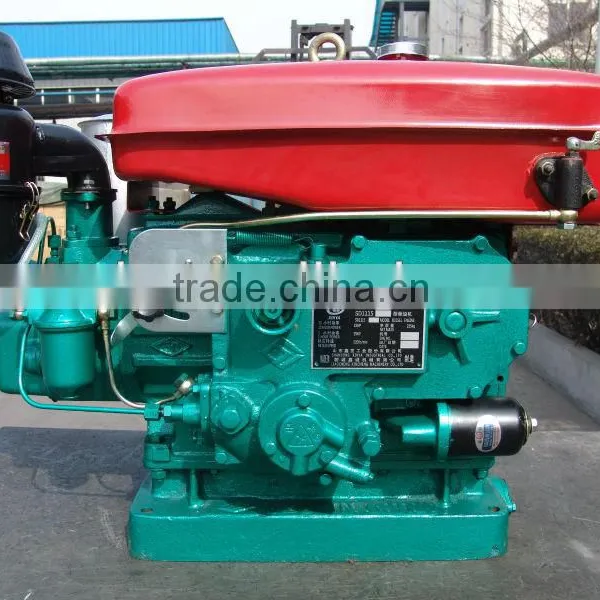

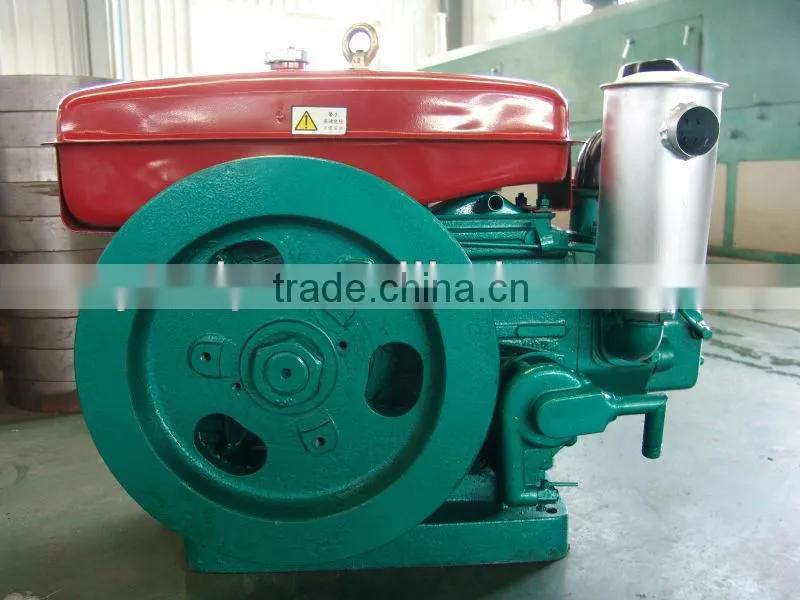

More Photos' of SD Diesel Engine
