Home > Products > Electronic Detectors and Tools > phase rotation tester or meter or indicator

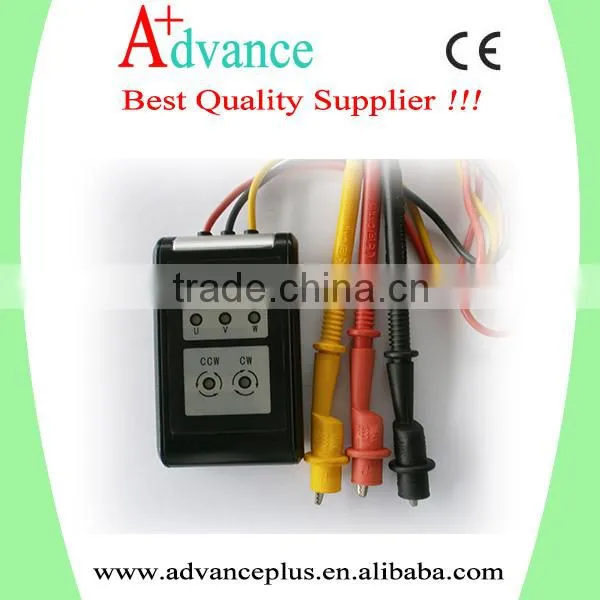

phase rotation tester or meter or indicator
- 50000 Piece / Pieces per Month
- fuzhou
- T/T
Product Details
Place of Origin: | Fujian, China | Brand Name: | eoutil | Model Number: | SK500 |
Product Description
Specifications
1.Phase Rotation Indicator2.Single phase or three phase
3.200V to 480V optional
4.MOQ 1000pcs
5.CE,SG,UL
Features:
1)Phase rotation indicator with open phase checker
2)Large size alligator clips can easily hold terminals of switchboards..
3)Meets IEC -10101(EN61010) safety requirement.
4) Spec: input voltage 200 to 480VAC
5) Frequency: 45 to 70 Hz
TECHNICAL SPECIFICATION:
Operation voltage: 200-480V ~3PH
Time limit for continuous measurement:
60 minutes at 200V AC
4 minutes at 480V AC
Frequency range: 20Hz-400Hz
Indoor use
Altitude up to 2000m
Temperature 5°C to 40°C
Maximum relative humidity 80%
Main supply voltage fluctuations up to ±10% of the nominal voltage
Rated pollution degree Ⅱ
EXTERNAL CONFIGURATION:
Dimension: 102x64x18mm
Test lead: Double insulate line, about the 0.75 m
red line for L1(R)
black line for L2(S)
yellow line for L3(T)
Why choose us?
We have more than 15 years experience producing and selling electronic measuring tools and electronic hand tools for home decoration. And we also have advantage in the field of automotive diagnostic tools and vehicle battery charger. Our engineers have professional knowledge to develop new technology for our items. We have an integrated team to service you. We depend on our products quality and technology to continue our business. Please be sure we will give you a perfect service and products and let you have a perfect experience when cooperating with us.
Sample policy
Sample is charged and you should offer us express account. Once you make order with us, the sample fee will derectly be deducted from the order. If you build a long term business with us, the free samples will offer you for your test and confirm.
Contact Us
- Fuzhou Yu Xin Electronic Co., Ltd.
- Contact nameDavid Wei
- Phone0086-0591-83817013
- Address4F, 53# Building, Juyuanzhou Industrial Zone, Jinshan Development District Fuzhou,Fujian
