Specifications
Single Size Two Station Automatic Heat Transfer Machine1. CE approved
2. large size transfer machine
3. Pneumatic automatic

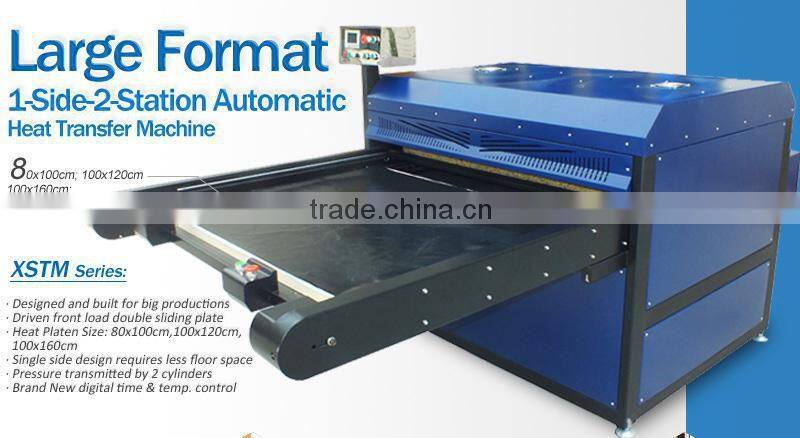

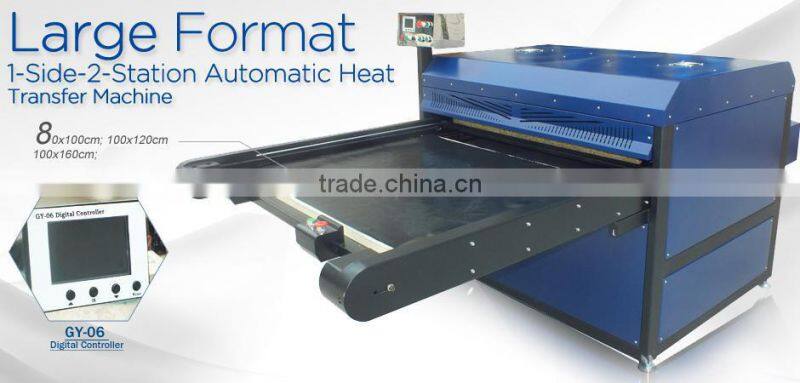

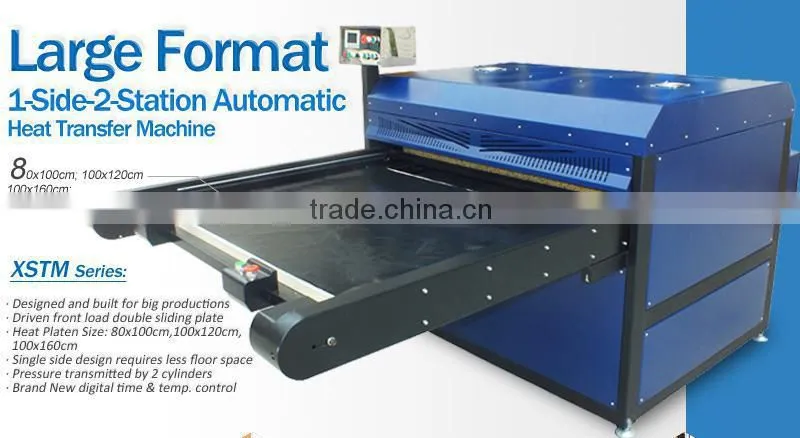

Single Size Two Station Automatic Heat Transfer Machine
Description:
Two working tables designed at one side of the machine, when the printing finished the tables rolls out while another one will roll into the machine for printing automatically. Two working stations take turns to do the printing. And this machine has 2 cylinders.
Feature:
♦ Two work tables, single station
♦ Automatic, large format
♦ Newest DY-06 Digital Temperature & Time Control
♦ With 2 Cylinder
♦ Automatic Alarm
♦ 1 year warranty on entire press
♦ Wooden Package
Advantage:
♦ Smaller handle frame, simple and easy operation
♦ Adopt High Grade New GY-06 digital controller (reference video : /watch?v=71boWLlbUys)
♦ Single-cycle transfer mode or Repeat cycle transfer mode for choice.
♦ Easy adjust the belt tension: adopt specialized hand wheel, very easy to adjust the belt tension. (The belt tension need to be adjusted after a period of using)
♦ Accurate positioning system: high-precision alignment for upper and under plate.
YouTube Link:
/watch?v=oKyT_m3XASI&feature=youtu.be
Specification:
♦ Machine Type: Automatic, Double Station
♦ Platen Size: 32"x40"/40"x48"/40"x64"
(80x100cm/ 100x120cm/100x160cm)
♦ Controller: GY-06 Digital Time & Temp. Control
♦ Printable Articles: Up to 20mm Thickness
♦ Air Compressor Required: Yes
♦ Voltage: 220V 1phase/ 220V 3phase/ 380V 3phase
♦ Power: 5.1KW/ 7.5KW/ 12KW
♦ Time Range: 0-999 sec.
♦ Maximum Temp: 225 C
♦ Temperature Accuracy: ±0.5%
Heat Platen Test:
Each Single Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.
Quality Control on Finished Machine:
All Microtec heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2) Keep the temperature stay at 200 degree Celsius for at least 20 minutes

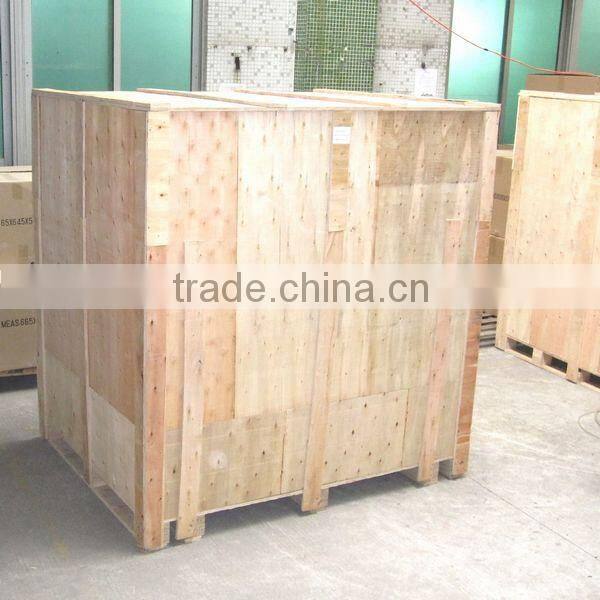

Package:
All the machines are packed in wooden package and provide with manual.
Machine Warranty:
Microtec's primary service goal is to support all of our customers, could deal with their heat transfer business without interruptions.
So Microtec offers FREE SPARE PARTS with quantity order and the following warranty:
*Free lifetime technical support on all heat presses.
*One-year warranty on entire press & parts.
*Five-year warranty on castings and welds.
*Five-year warranty on heat platen.
*Half- year warranty on mug, plate and cap heaters.
Quality Control on Finished Machine:
All Microtec heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2) Keep the temperature stay at 200 degree Celsius for at least 20 minutes
Application
Especially for Large Size cloth, banner, also for T-shirt, Puzzle, Mouse Pad, Metal Board, Fridge Magnet, Coaster, Slipper, Bag, Cushion etc
Product Display
