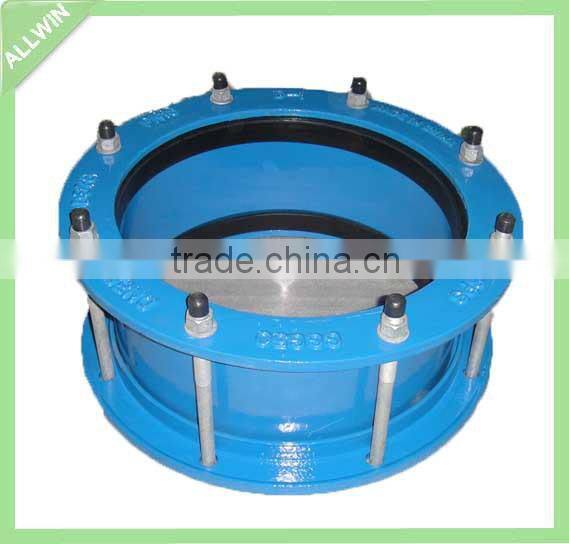

Pipe Coupling Joint, HDPE to Steel Pipe Coupling

Specifications

Pipe Coupling Joint, HDPE to Steel Pipe Coupling
1. Size range: DN50-600
2. Ductile iron sleeve
3. EPDM gasket
4. FBE







  Description

  1. Material: Ductile Iron sleeve, Steel bolts and nuts
  2. Gaskets : EPDM

  3. Coating: epoxy in blue,black or red.

  4. Size range: DN50-600 /2"-24"

  5. Packing: standard Wooden pallets or cases





 Dimensions

No.	Size	Outside Dia. of Pipe	Weight
		DE= mm	kg
1	DN50/2 inch	(59-73mm)	3.2
2	DN65/2.5 inch	(72-85mm)	4.2
3	DN80/3 inch	(88-103mm)	5.2
4	DN100/4 inch	(108-128mm)	5.9
5	DN125/5 inch	(132-146mm)	7.7
6	DN150/6 inch	(158-181mm)	9.7
7	DN175/7 inch	(192-209mm)	11.6
8	DN200/ 8 inch	(218-235mm)	11.6
9	DN225/ 9 inch	(250-267mm)	16.5
10	DN250/ 10 inch	(262-289mm)	18.9
11	DN300/ 12 inch	(315-332mm)	20.4
12	DN300/12 inch	(322-339mm)	20.9
13	DN300/12 inch	(340-360mm)	22
14	DN350/ 14 inch	(351-368mm)	31.9
15	DN350/14 inch	(374-391mm)	33
16	DN400/16 inch	(400-429mm)	38.5
17	DN400/16 inch	(425-442mm)	40.7
18	DN450/18 inch	(455-472mm)	45.1
19	DN450/ 18 inch	(476-493mm)	47.3
20	DN500/ 20 inch	(500-532mm)	52.8
21	DN500/ 20 inch	(527-544mm)	53.9
22	DN500/ 20 inch	(555-572mm)	55
23	DN500/ 20 inch	(566-583mm)	55
24	DN500/ 20 inch	(582-599mm)	57.2
25	DN600/24 inch	(600-630mm)	71.5
26	DN600/ 24 inch	(630-647mm)	72.6
27	DN600/24 inch	(645-662mm)	74.8
28	DN600/ 24 inch	(662-679mm)	77
29	DN600/24 inch	(675-692mm)	79.2
