Universal Coupling
- TIANJIN
- T/T Credit Card
You May Like
Product Details
| Material | Iron | Technics | Casting | |
| Type | Coupling | Place of Origin | Shanxi, China | |
| Model Number | DN40-600mm | Brand Name | Allwin | |
| Connection | Other, by bolts and nuts | Shape | Equal | |
| Head Code | Other, round |
Product Description

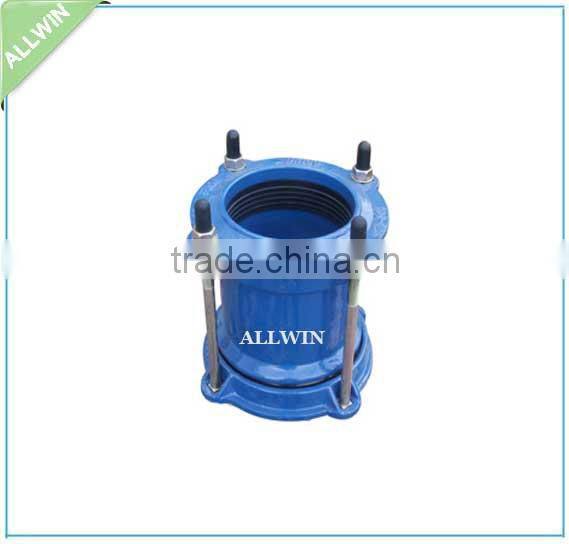

Universal Coupling
Description
1. Sleeve Material: Ductile Iron
2. Gaskets :EPDM/NBR
3. Coating: epoxy in blue,black or red.
4. Size range: DN40-600mm
5. Bolts and nuts: carbon steel
6. Packing: standard Wooden pallets or cases

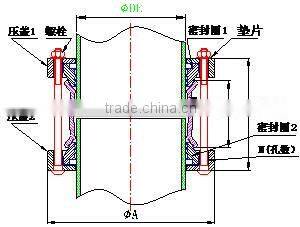

Dimensions
DN | DE | A | B | H | N |
40 | 48-58 | 141 | 95 | 145 | 2 |
50 | 59-73 | 165 | 95 | 159 | 2 |
65 | 72-85 | 185 | 98 | 162 | 2 |
80 | 88-103 | 200 | 98 | 162 | 4 |
100 | 108-128 | 225 | 98 | 162 | 4 |
125A | 132-146 | 250 | 98 | 162 | 4 |
125B | 138-153 | 250 | 98 | 162 | 4 |
150A | 138-153 | 272 | 100 | 174 | 4 |
150B | 158-181 | 272 | 110 | 184 | 4 |
175A | 192-209 | 296 | 130 | 194 | 4 |
175B | 192-209 | 324 | 130 | 194 | 4 |
200A | 200-225 | 325 | 130 | 194 | 6 |
200B | 218-235 | 325 | 130 | 194 | 6 |
250A | 250-267 | 380 | 130 | 194 | 6 |
250B | 272-289 | 380 | 130 | 194 | 6 |
300A | 315-332 | 430 | 140 | 204 | 6 |
350A | 351-368 | 490 | 140 | 204 | 8 |
400A | 390-410 | 540 | 235 | 305 | 8 |
450 | 476-493 | 595 | 235 | 305 | 10 |
500 | 527-544 | 654 | 235 | 305 | 10 |
600 | 630-647 | 757 | 235 | 305 | 10 |
More Models for your choice
If you are interested in any of our products, please feel free to contact us!
