Specifications
1.high efficiency2.low power consumption
3.easy to operate

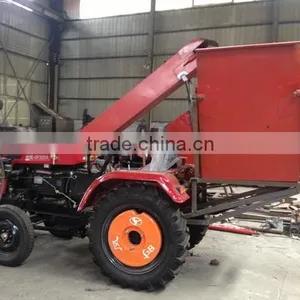

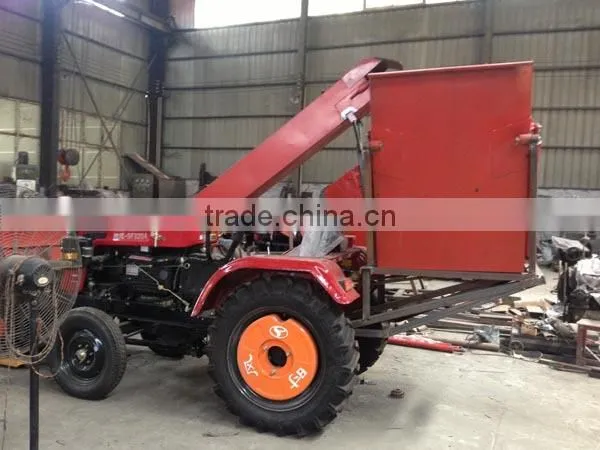

Introduction of corn harvester machine :
Our harvester has many features: small size of the scale, turn dexterity, reasonable desighed, low failure rate, high quality and efficiency. The machine is a ideal-production. It is helpful in reducing labor burden and making profit for farmers.
Corn harvester main features machine:
1.small volum,not affected by planting spaced limits,need not artificially,suitable for different kinds of planting mode.
2.hydraulic elevator platform,the field cut through sexual good,samll corn harvester according to dar height,adjust defferent machines,to achive the best effect cut.
3.hydraulic unloading grainmcan be directly uninstalling to farm transport vehicle,saves time and effort.
4.smooth operation,reliable,maintenance is convenient.
5.offer professionals to install the machine.
6.whole lift service after sale.
Working principle of corn harvester machine :
This corn harvester machine for sale mainly has cut rod device, transmission device, hydraulic elevator, etc. When start to work, this corn harvester machine for sale goes forward along the ridge direction of corn; the cutter to cut the corn straw, and straw is output through upper, middle and lower three conveying chain on the right side of the direction with naturally put, thus finish the harvesting.
Power separation is the pilot operating tractor hydraulic lift system, to promote host up to the stop position, and the two type B triangles will stop running to cut off the diesel engine power input which realize the separation of power. Then cutters and conveyer belt will stop running. Otherwise, the corn harvester machine for sale will be in a state of rotation.
Technical specifications:
| Model | 4YB-2 | 4YZ-3A | 4YZC-5 | 4YZC-4C |
| Matched power | 18-32HP | 115HP | 164HP | 128HP |
| Capacity | 0.3-0.5 hm2/h | 0.36-0.54 hm2/h | 0.5~1.2hm2/h | 0.33~0.58 hm2/h |
| Working rows | 2 | 3 | 5 | 4 |
| Peeling rate | 70-85% | 70-85% | >85% | >85% |
| Grain loss rate | ≤2% | <2% | <1.5% | <1.5% |
| Breakage rate | ≤1% | <1% | <1% | <1% |
| Outside size | 4.5x1.3x2.65m | 6.4x2.15x3.45m | 9.3x3.05x3.8m | 7.5x2.3x3.55m |
| Weight | 600kg | 4850kg | 9100kg | 6100kg |
Welcome to order ,welcome to visit our factory!
