Specifications
wood ships making machine1.durable structure
2.high efficiency
3.low energy consumption
4.CE ISO

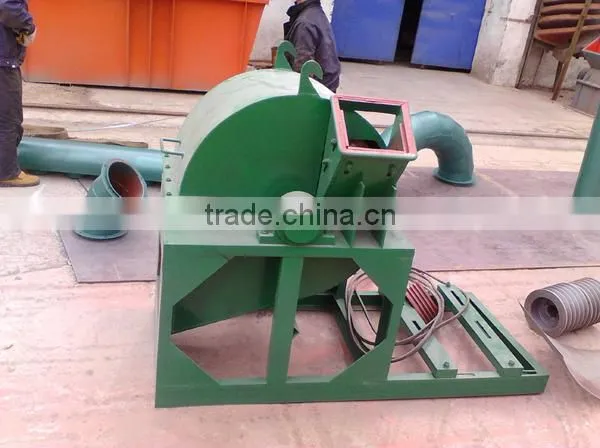

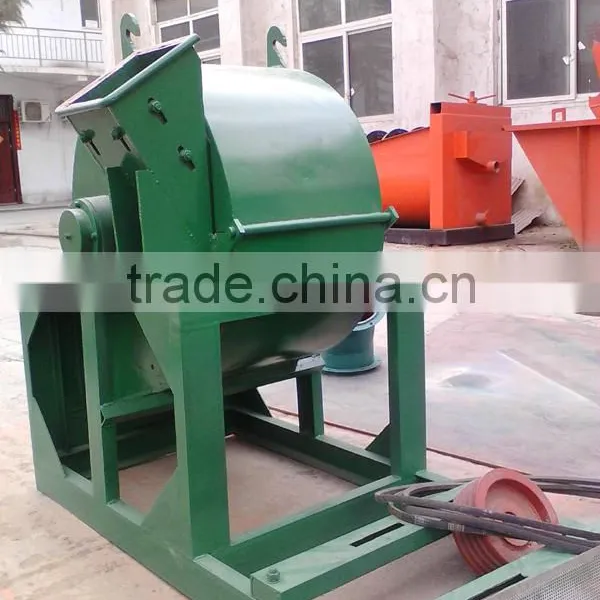

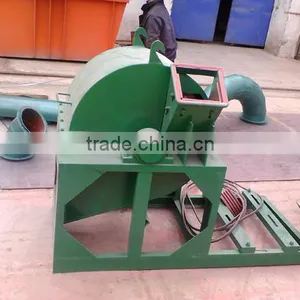

Most efficient wood chips machine, wood ships making machine
Brief introduction of Wood Chips Making Machine
There are two knifes in the wood chipping machine, the big wood across the knifes crush into the small wood
chips. Wood chips making machine has a 4m long feeding belt conveyor, the speed can adjust.
Wood chipping machine is widely used in the raw material preparing process in the factories of flakeboard,
papermaking and wood chips making plants.

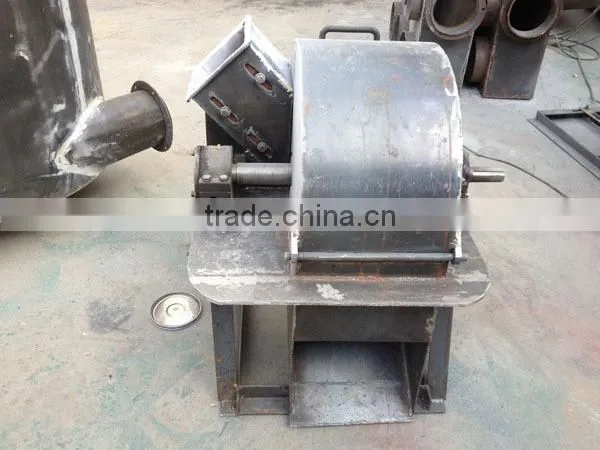

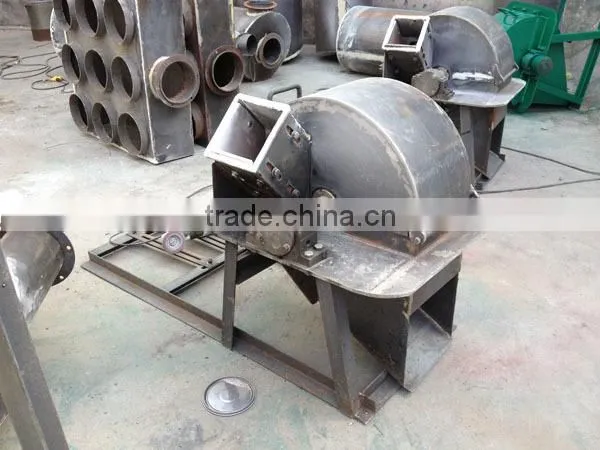

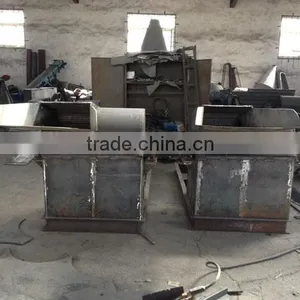

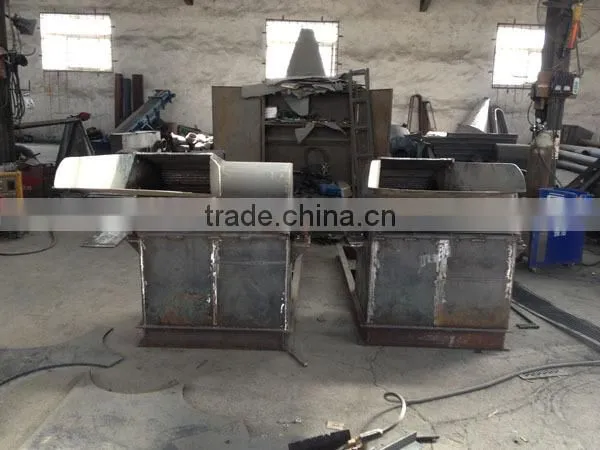

Unpainted chips making machines

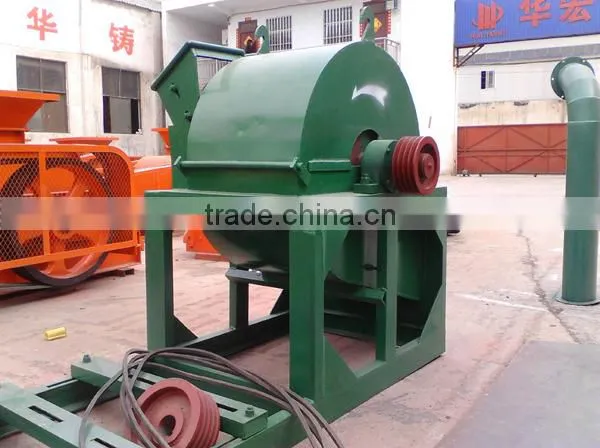

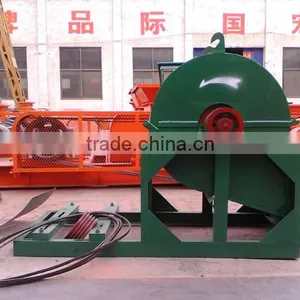

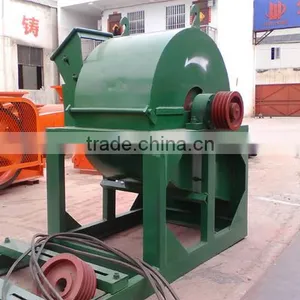

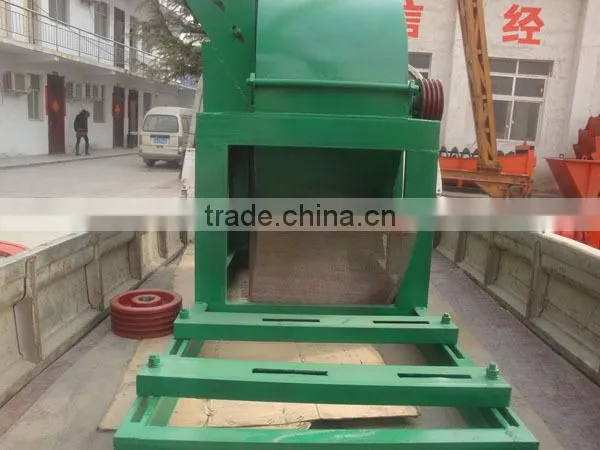

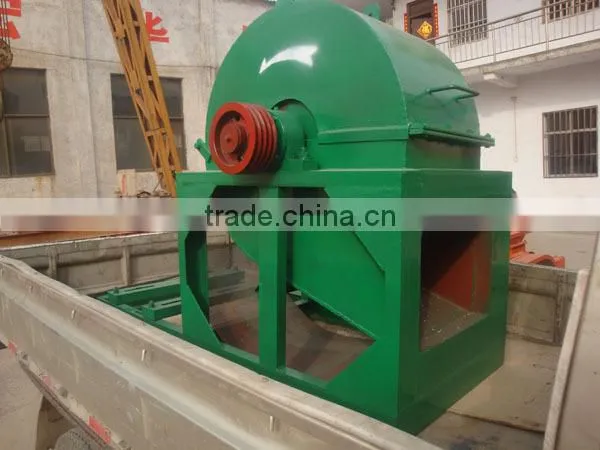

Big model wood chips making machine
Parameters of Wood Chips making machine
| Model | DWC-18 | DWC-22 |
| Engine | 18hp Yanmar diesel engine | 22hp Yanmar diesel engine |
| Chipper capacity | 8"/200mm | 8"/200mm |
| Feed method | Hydraulic feed | Hydraulic feed |
| Rotor disk diameter | 640mm | 640mm |
| Rotor disk weight | 85kg | 85kg |
| Knives number | 1 stationary, 2 rotor knives | 1 stationary, 2 rotor knives |
| Hopper discharge dimension | 1200x1400x1100mm | 1200x1400x1100mm |
| Feed hopper inner opening | 200x220mm | 200x220mm |
| Discharge hood height | 1800mm | 1800mm |
| Rated RPM | 1080 | 1080 |
| Weight | 630kg | 690kg |
| Efficiency | 9-11 cbm/hour | 10-13 cbm/hour |
| Tyre | high speed tyre | high speed tyre |
| Chips size | 2-20mm adjustable | 2-20mm adjustable |
|
Discharge hood rotates
|
360 degrees | 360 degrees |
Note: If the type is not what you need, please contact us and more other types are available.
Skype: huahongmachine11
Welcome to visit our factory !
