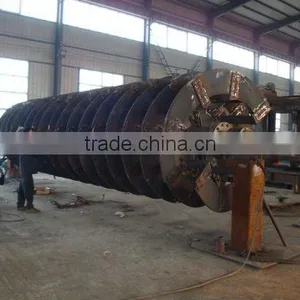

Screw Sand Washer 's Price --the Cheapest !

Screw Sand Washer 's Price --the Cheapest ! thumbnail-1
Screw Sand Washer 's Price --the Cheapest ! photo-1
US$ 1 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Sand washing machine
Application:
Mining and quarry
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin or depend on your requirement
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Sand washing machine
Application Mining and quarry
Motor Type AC Motor
Power(W) 5-50kw
Capacity(t/h) 3-120
Place of Origin Henan, China
Brand Name Huahong
Model Number XS series
Dimension(L*W*H) Refer to specification
Weight Due to models
Certification ISO9001:2008;CE
Warranty 1 year
After-sales Service Provided Overseas service center available

Specifications

1.Small power consumption
2.High clean ability
3.High product effiency
4.stable small product

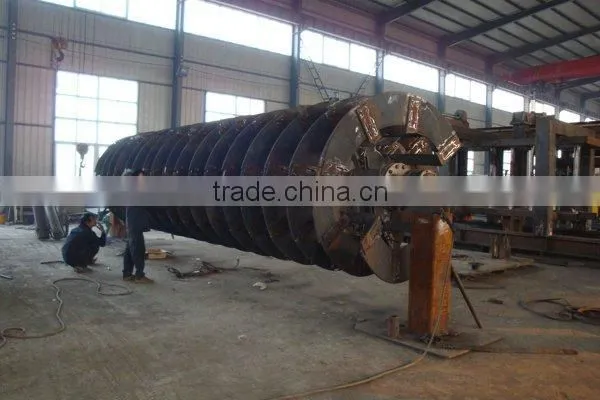

Introduction of screw sand washer:

 Screw sand washer is the professional sand washing machine developed on the basis of previous technology and combined with the actual situation of sand and gravel industry. It is a high-efficiency sand washer which can separate the excess powder and mud and so on in the raw material. When working, the sand will grind each other under the driving of the impellers. By this way it can not only remove the impurities wrapped on the surface of the sand, nut also destroy the vapor layer wrapped around the sand, and completes the impurity cleaning processing in powerful water flow.

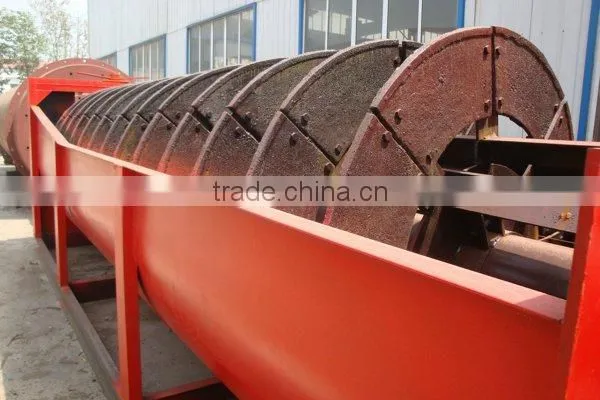

screw sand washer 's price --the cheapest !

Application of sand washer:
It is suitable for washing, grading, impurity cleaning for metallurgy industry, construction material, etc. It is the indispensable sand washing equipment for housing construction, bridge construction, highway and railway project, etc.

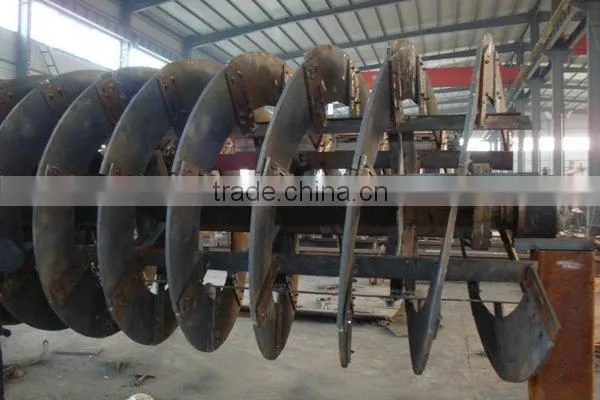

screw sand washer 's price --the cheapest !

Features of screw sand washer:
Three functions: cleaning, dewatering and grading.

2. Cleaning and upward conveying at the same time.
3. Low water consumption; durable.
4. Impellers use wear resisting plate or polyurethane material, reduce the running cost.
5. Designed according to low volume, low investment.

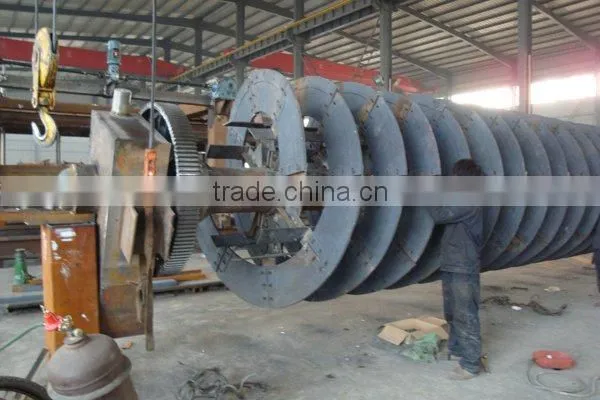

screw sand washer 's price --the cheapest !

Principle of screw sand washer:

Screw sand washer is developed according to the principle of different particles with different fall velocities because of their sizes and densities. Fine particles float in the water and form the overflow; coarse particles fall down to the bottom of the trough and are pushed to the top port by the impellers and discharge. During working, the motor drives the impellers to rotate slowly by triangle belt, decelerating motor and gears. Sand enters the washing trough from the fed trough, roll and grind each other under the driving of impellers. Then wrapped impurity around the sand surface is removed and the vapor layer is destroyed at the same time. While the impurities and dirt is removed by the added water flow, cleaned material is conveyed upward by the rotating impellers to the discharge chute.

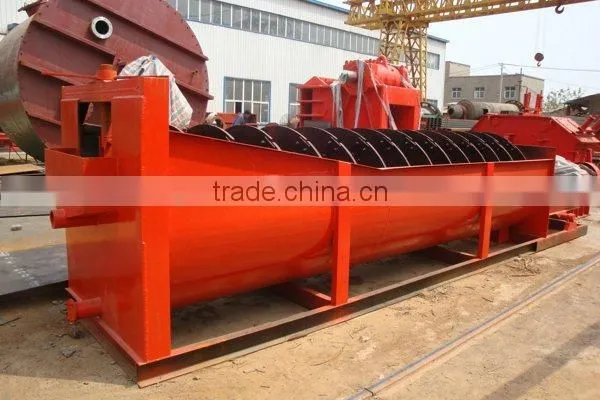

  screw sand washer 's price --the cheapest !
screw sand washer 's price --the cheapest !screw sand washer 's price --the cheapest !screw sand washer 's price --the cheapest !



Specification:



Models

XS0540

XS0745

XS1050

 XS1070

XS1254

XS1554

XS2060

Diameter of screw (mm)

500

750

1000

 1000

1200

1500

2000

Length of tub (mm)

4000

4500

5000

 7000

5400

5400

6000

Capacity (t/h)

3-10

5-20

10-30

 15-40

30-50

50-80

80-120

Speed of screw (r/min)

18

18

18

 18

16

16

14

Electric Motor Power(kw)

5.5

7.5

11

 15

15

22

30

Dimension (mm)(L×B×H)

6200X670

X1300

6200X800

X1500

7300X1250

X2200



8700x1250

x2200mm

7300X1440

X2400

7300X1850

X2800

8200X2450

X3200





Our Services



  screw sand washer 's price --the cheapest !

Pre-sale services:

Multiple models to choose.

Customized products according to your requests.

Professional technicians at your side any time.



Services during the sale:

Pre-check  and safeguard products before delivery.

Provide solutions for any possible problems occured.



After-sales services:

 Assist clients to prepare for the primary construction scheme.

 Help to install and debug the equipment.

 Help to train people how to perform the device on site.

24-hour Services.Contact us if you have any questions.

 screw sand washer 's price --the cheapest !





   Welcome to visit our factory and to order!



         We will provide you our best equipments at the



           reasonable price to meet your requirements.
