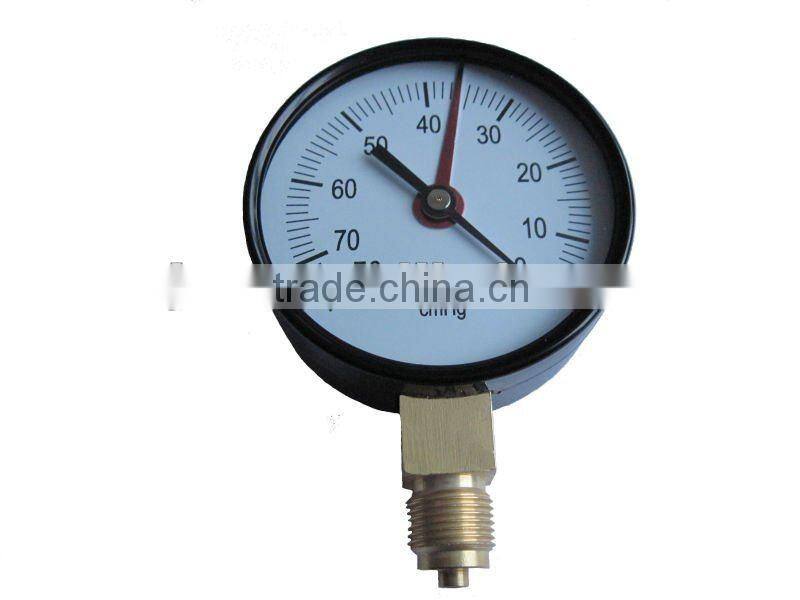

Y80 vacuum pressure gauge with red pointer
Specifications can be made per customer's order
Applications:
1.General pressure gauges are suitable for measuring the pressure of liquid, gas, and steam or vacuum, which are non-crystalloid and non-concretionary, and have no danger of explosion and do not erode steel and copper alloy.
2.Heating ,air-conditioning technology, pneumatics,air compressor, vacuum pump, pressure air regulating, testing equipment, medical sterilizer,etc
Special features:
1.Safety and reliable
2.Nominal size 40,50,63,80,100,160
3.Scale ranges up to 0 ... 400 bar
Descripation:
Nominal size:40,50,63,80,100,160
Accuracy:2.5,1.6
Permissible temperature:
When temperature departure is ±5°C,additional temperature error is not more than 0.4%°C/10°C.
Standard version:
Process connection:Cu-alloy, Radial and axial
Φ40: G 1/8 B (male), 14 mm flats
Φ50 or Φ63: G 1/4 B (male), 14 mm flats
Φ80,Φ100 or Φ160: G 1/2 B (male), 22 mm flats
Pressure element:Cu-alloy,
≤ 60 bar: C-type
> 60 bar: Helical type
Movement:Cu-alloy
Dial:Aluminium, white, with pointer stop pin
Black or red lettering(can be with customer's logo)
Case: Plastic or Steel , black Φ160 Steel, black
Design for window:snap on plastic(for plastic case ),screw in polycarbonatesteel,
steel black bezel(two screws )with glass window
Note:1.There are radial and axial for selecting
2.Thread :NPT,BSP,BSPT etc
3.Rubber for gauges in Φ40,Φ50,Φ63 and Φ80
4.U-clamp for gauges in Φ40,Φ50,Φ63 and Φ100
5.Flange Φ40,Φ50,Φ63,Φ100 and Φ160
Special versions:
1.With retard scale spacing ,adjustable green sector and red mark pointer for heating systems,
2.With additional temperature scale for refrigerants in °C
3.With othe unit according requirement,such as bar,psi,kg/cm2 in dial
4.Pneumatictool with rubber
Company introduction:
Cixi City Jiu Zhou Special Pressure Gauges Factory is located in Cixi, Ningbo, which is beautiful, rich and strong economic city.We are a manufacturer of press instruments, and are specialized in producing and developing. After 10 years of effort, our company has already had advanced craft equipment and complete test facilities, ensuring high quality products. With the help of China Jiliang University, by heaps of times of innovation and practice, our products have been mainly exported to overseas markets. We also have won a good credit standing in the field.
We will give all support to our distributors, and will cooperate with each other to enlarge the market share together. We will try our best to create cleaner and leisure life for you with our quality products and the best after-sales service. You are welcome to visit our factory.
