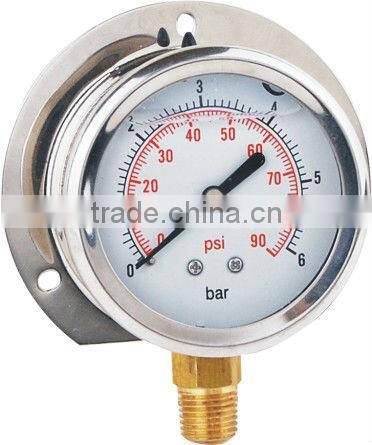

63mm(2.5") silicone filled pressure gaugewith back flange ,YN63ZC
BRIEF INTRODUCTION
Oill filled pressure gauge is filled with damping liquid good performance of shock proof.This sort of maters is suitable for locations where the pressure of medium changes intensely and pressure shock proof exists, or pressure is released suddenly in the course of manufacturing, or working environment shock largely. The meter can measure average of gas and liqu id mediums.Thus damage to meter induced byintensive fluctuation and environmental shock can be over come smoothly and accuracy of freading is ensured.
APPLICATIONS
Process industry, Chemical/petro-chemical, Power stations, etc.
DESCRIPTION
| Nominal Size : |
1.5"(40mm) , 2.0"(50mm), 2.5"(63mm), 3.0"(75mm) ,4.0"(100mm), |
| Pressure Range : | -1~0bar to 0~400bar |
| Accuracy : | ±1%, ±1.6%, ±2.5% |
| Working Temperature: | -20°c~70°c |
| Case: | Stainless steel |
| Bezel : | Stainless steel |
| Flange: | Stainless steel |
| Bourdon tube : |
Phosphor bronze OR Stainless steel ≤ 60 bar: C-type > 60 bar: Helical type |
| Connection: | Back,Brass Or Stainless steel |
| Movement: | Brass Or Stainless steel |
| Dial: | Aluminium |
| Pointer: | Aluminium ,black |
| Window: | Glass Or Plastic |
| Thread: | 1/8",1/4", 3/8",1/2", PT,BSP,NPT etc. |
| Fill: |
Glycerine(standard) Silicone(optional) |
| Gaskets/Filling cap: | Neoprene Or Silica gel |
OPTION
1. With red mark adjustable pointer ,
2. With othe unit according requirement, such as bar,psi,kg/cm2 in dial
3. With rubber

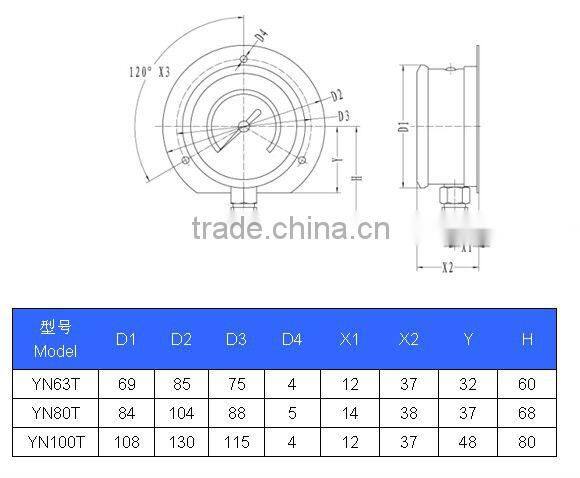

DIMENSIONS IN mm
ORDERING INFORMATION
Model / Nominal size / Scale range / Connection size / Options
Note: The requirements can be customized
