Specifications
1.Less capital input,fast economic returns2.Advanced technology ,less consumption.
3.No water/binder/drying
The instruction of double roller granulator machine
This set of equipment has scientific design and rational, and advanced technology. Energy consumption, no waste discharge, operation stability, reliable operation and easy maintenance. Wide adaptability of raw materials for fertilizer, pharmaceuticals, chemicals, feed and other raw materials, granulation, the product high into the grain. Can produce a variety of concentrations of various types (including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer) fertilizer. In particular, rare earth, potassium, ammonium bicarbonate series fertilizer granulation, filling the domestic blank, the leading in China
Features of double roller granulator machine
1.simple structure, easy-to-adjust and excellent in performance.
2.fertilizer machine
3.low malfunction rate
4.high quality
5.suit for various fertilizer
6.roller extruding granulator
Working principle of fertilizer granulator machine
The series of roll granulation is extrusion model , its working principle is the belt and pulley driven by electric motors , to the driving shaft to pass through the reducer , and synchronization off then gear and the driven shaft opposite the work. Material from the hopper to join, after the roll extrusion molding , mold release , making the ball , and after a chain sent to the broken screen studio , under the screen and the separation of the finished pieces (the ball) tablets . And then return the mixture of material with new material , refor granulating . With the continuous rotation of motor , the material continues to enter in order to achieve mass production .
Specifications
| Model | DZJ~I 1.0 | DZJ~I 2.0 | DZJ~I 3.0 | DZJ~I 4.0 | DZJ~II 1.0 | DZJ~II 2.0 |
| Product capacity(t/h) | 1~1.5 | 1.5~2.5 | 2.5~3.5 | 3.5~4.5 | 1~2 | 1.5~2.5 |
| Power | 15KW | 18.5KW | 30KW | 45KW | 15KW | 18.5KW |
| Pressure roller Spececification | Φ150×22O | Φ150×30O | Φ186×30O | Φ300×30O | Φ150×22O | Φ150×30O |
| Feed size | ≤0.5mm | ≤0.5m | ≤ 0.5mm | ≤ 0.5mm | ≤0.5mm | ≤0.5mm |
| Finished product Spec | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ30 | Φ2.5~Φ10 | Φ2.5~Φ20 |
| Speed reducer Model | ZQH350 | ZQH400 | ZQH400 | ZQH500 | dedicated | dedicated |
| Material moisture content | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% |

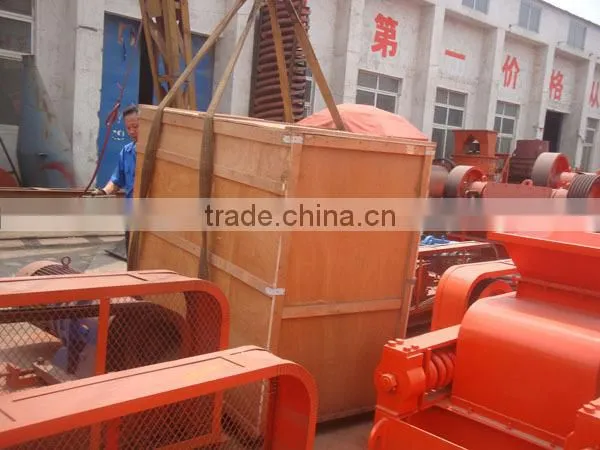

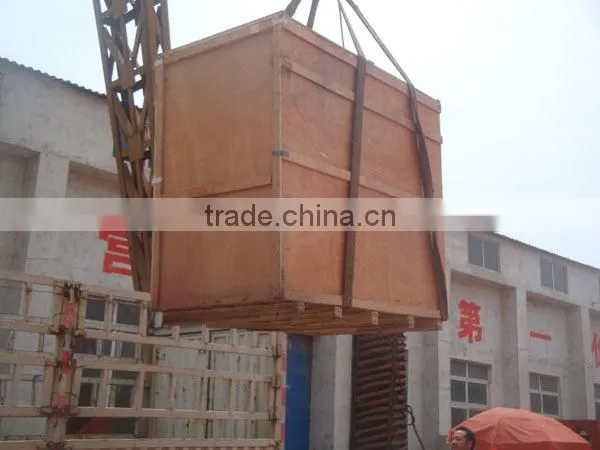

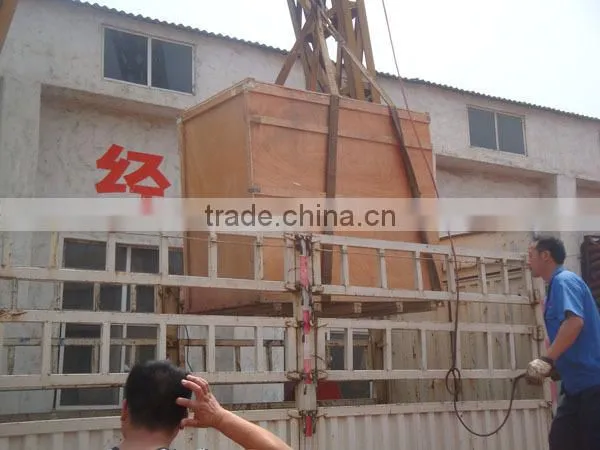

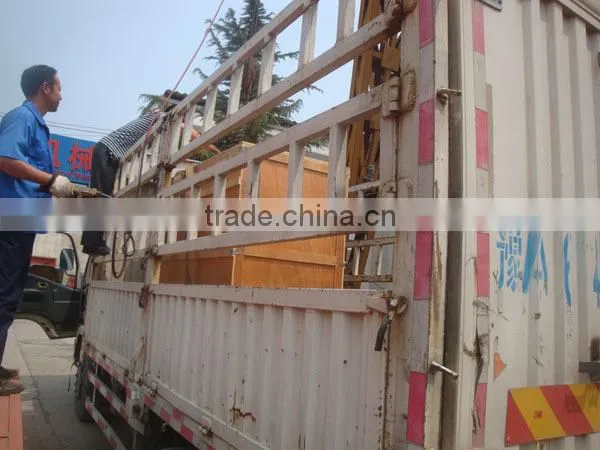

Shipments to Africa
Any more questions , please do not hesitate to contact us and welcome your enquiry .
