Help CenterAutomatic Slitting Line for Thin and Medium Material
Related Products
Specifications
Automatic slitting line for thin and medium material*coil width: 2000mm
*coil thickness: 0.5-3mm
*coil weight: 25t

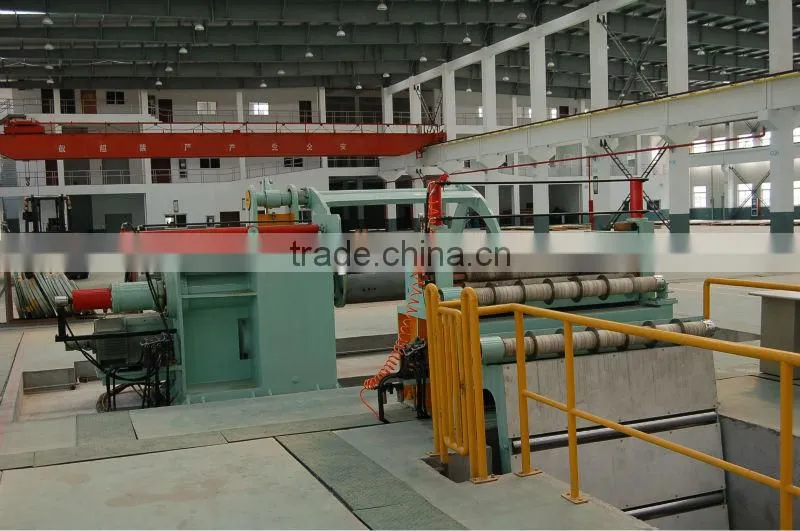

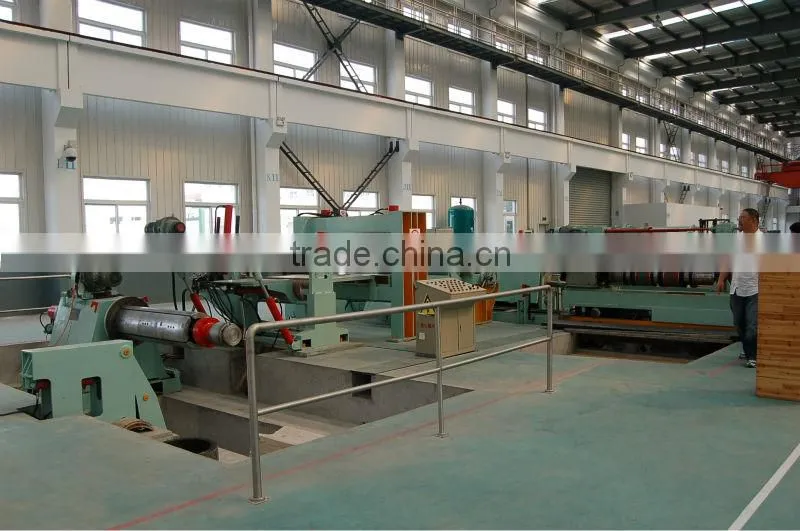

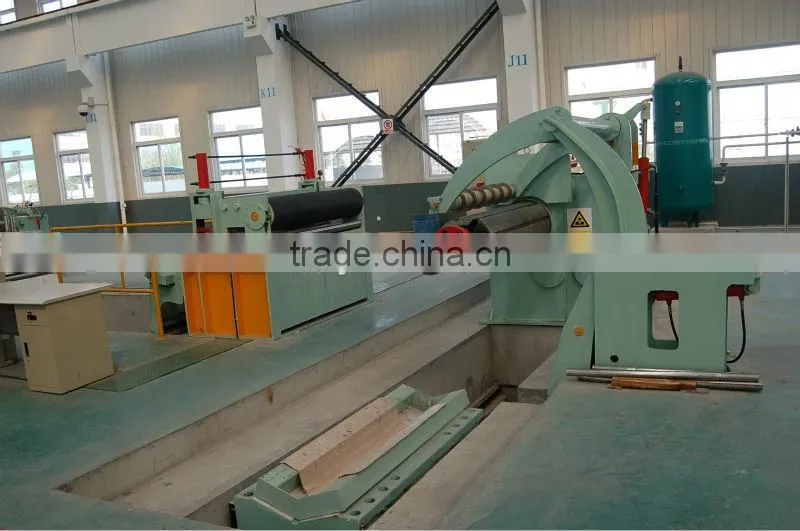

Automatic slitting line for thin and medium material
1.Each production line is designed and made strictly according to customer requirements. Not only this, our engineers carefully think over in customer's shoes, making sure whole metal coil slitter to be compact, smooth, solid and easy to operate.

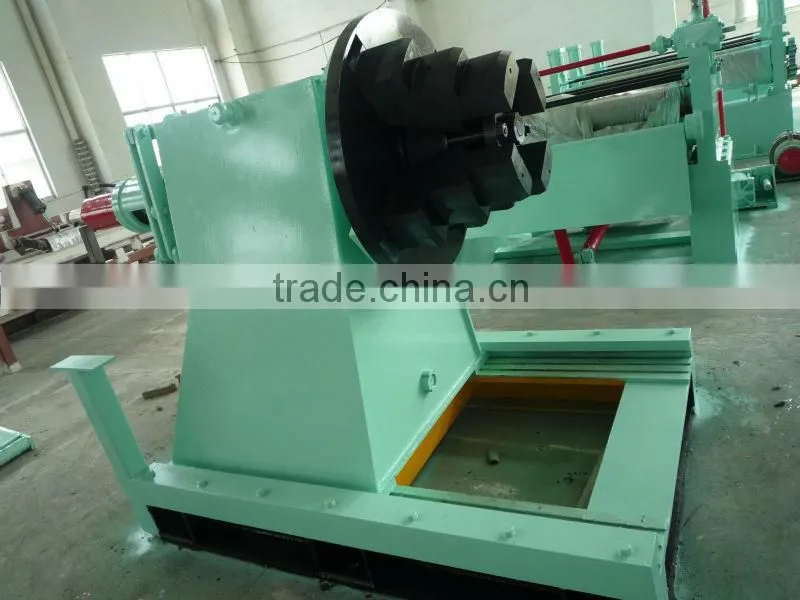

2.Thin coils differ in coil weight, when max coil weight is small, usually single mandrel (cantilever) uncoiler is adopted for the metal coil slitter; when max coil weight is up to 25Tons, it is proper to use double mandrel uncoiler for the coil slitting machine.

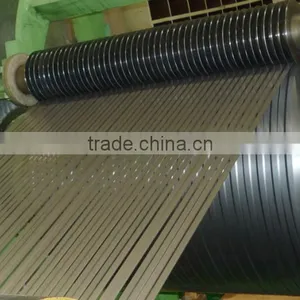

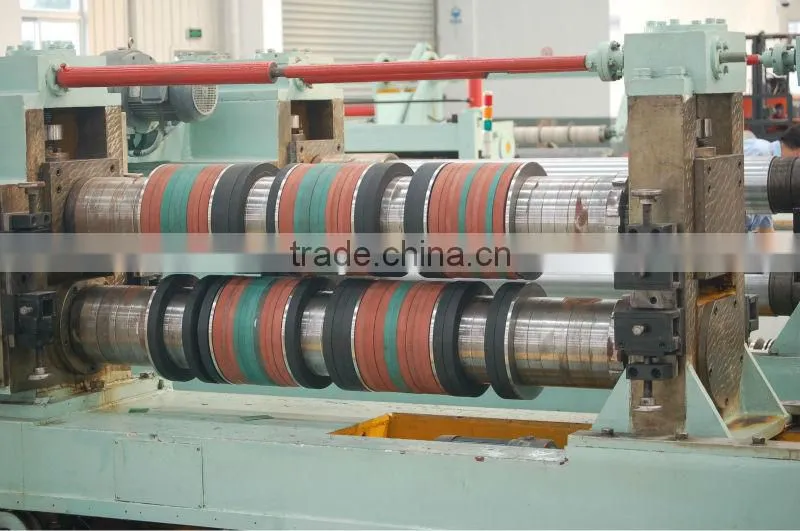

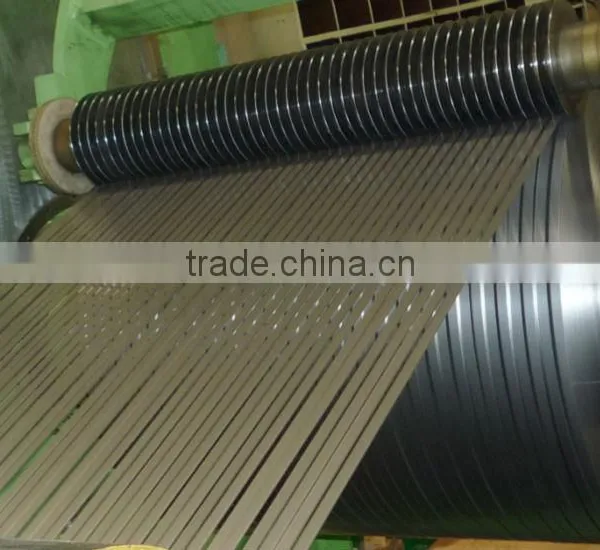

3.Customer usually need narrow thin strips in high slitting precision. We attend much attention to centerline control, slitting accessories precision control, recoiling precision control, etc to make sure slitting precision at thin thickness.
4.When stainless steel, galvanized steel, colored steel coils are concerned, we take delicate measures such as rubber rollers, smooth transmit plates to protect sheet perfect surface not injured.
5.We have obvious advantage in hydraulic system design and production for this the thin sheet slitting line.
6.We always choose good suppliers of hydraulic parts, motors, speed reducers, electric parts. As well, we like to purchase those parts according to customer requirements for special metal coil slitter.
7.We strictly control each link of production process, from material purchase, to welding, machining, hardening & grinding, to assembly, to painting. Therefore, we can make sure good quality metal coil slitter.
8.We can supply same quality coil slitting machine at cheaper prices because we are good at production cost management.
9.AC motor or DC motor drive, customer can freely choose. Usually we adopt DC motor and Eurotherm 590 DC driver due to its advantages of stable running and big torque.
10.Safety operation is ensured by clear indications on thin sheet slitting line, safety devices such as emergency stop, etc.
Specification form of Coil Slitting Machine:
Model |
Thickness |
Width |
Coil Weight |
Finished slit width |
Max Slitting speed |
SW-1 x 600 |
0.2-1mm |
100-600mm |
Max 8T |
Min. 20mm |
50m/min |
SW-2 x 1300 |
0.3-2mm |
300-1300mm |
Max 15T |
Min. 25mm |
80m/min |
SW-3 x 1600 |
0.3-3mm |
500-1600mm |
Max 20T |
Min 25mm |
100m/min |
SW-4 x 1600 |
0.4-4mm |
500-1600mm |
Max 30T |
Min 30mm |
80m/min |
Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer's specific requirements, so each customer can buy his own well-content line from us. | |||||
Wuxi Sunway Machinery Co.Ltd is a professional manufacturer and supplier of thin sheet slitting line, Coil Slitting Machine. For more information about coil slitting machine, please send us inquiry.
