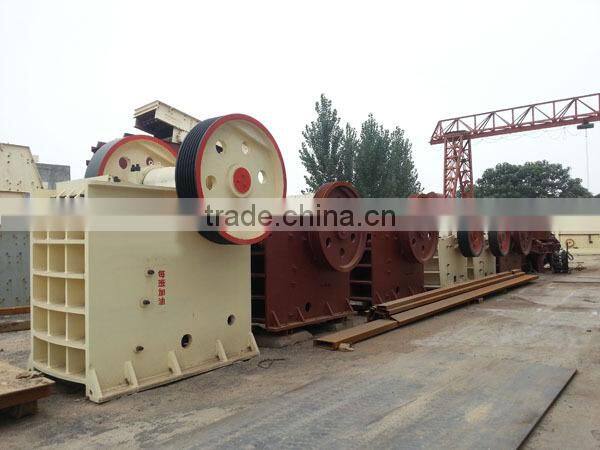

Help CenterTop of Same Product of Jaw Crusher on Sale
Related Products
-
Huahong Brand Vibrating Feeder /Vibration Feeder for Metal Industry and ChemicalUS$ 2,000 - 9,800MOQ: 1 Set -
2015 Pop Vibrating Feeder Use in Cement/limestone With High OutputUS$ 2,000 - 9,800MOQ: 1 Set
-
Hot Sale !!! Vibrating Feeder Use in Cement/limestone With Capacity(t/h) 280-500US$ 2,000 - 9,800MOQ: 1 Set
-
The First-class Vibrating Feeder to Obtain CE , ISO CertificationUS$ 2,000 - 9,800MOQ: 1 Set
-
China's Supply ZSW Series Vibrating Feeder , Stone Feeding Equipment With Low PriceUS$ 2,000 - 9,800MOQ: 1 Set
6.This machine causes low noise and creates little dust.

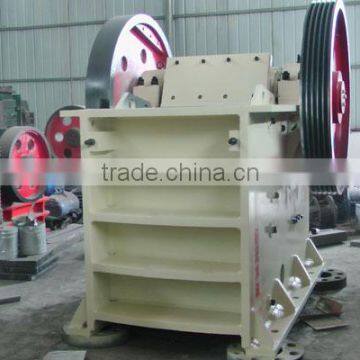

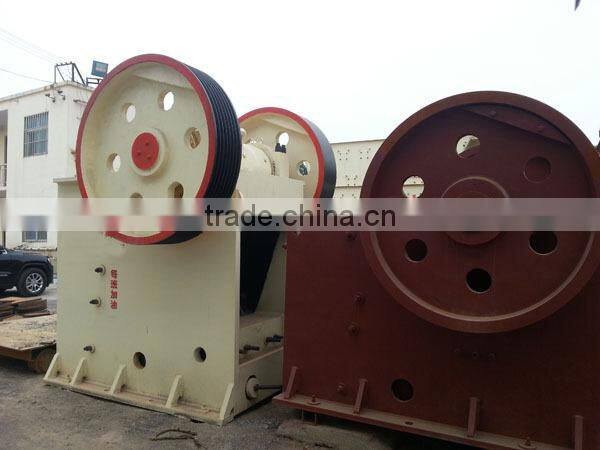

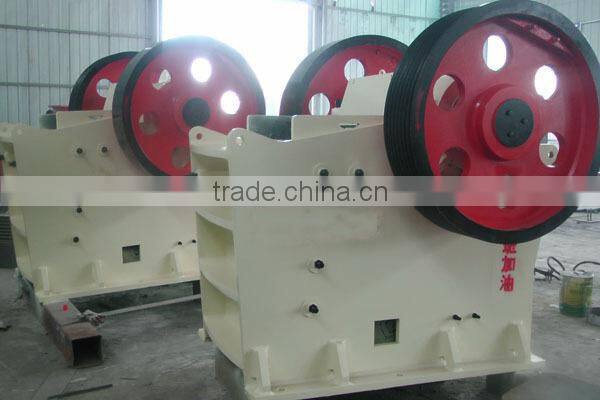

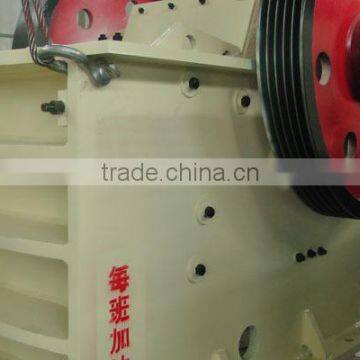

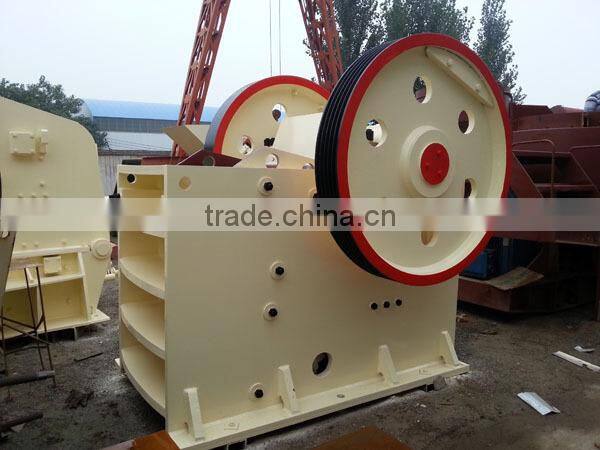

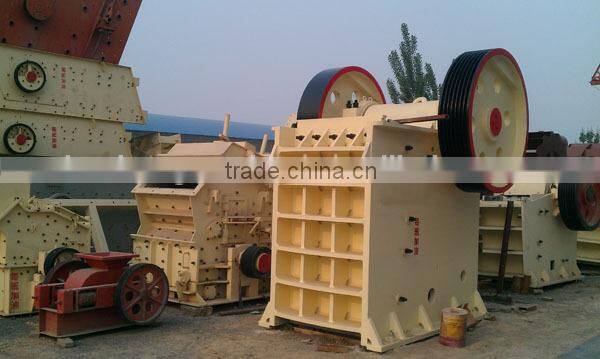

1. Jaw fine crushers are composed of bracket; jaw; eccentric shaft; jaw plate; spring, etc.
2. One of the most popular stone crushing machines used in mining, metallurgy, construction, road,etc.
3. Jaw fine crushers are widely applied to crush high hardness, mid hardness and soft rocks and ores such as ore,quartz, granite,limestone,slags, construction materials, marble, etc.
Features of jaw crushers
1.Crushing cavity is deep without dead zone.
2.The gasket type adjusting device of the discharge gate is characterized by reliable performance, convenient use, large adjusting range, and improves the equipment flexibility.
3.The lubricating system is safe and reliable.
4.A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
5.To meet different client needs, the discharge gate is designed with a large adjusting range.
Working principles of jaw crushers
1.Belts and pulleys are driven by motor.The eccentric shaft makes movable jaw moves up and down
2.When the movable jaw moves up, the materials are crushed or split pieces
3.When the movable jaw moves down, the materials are discharged from the bottom of the cavity
4.The jaw crusher realizes its batch production through the movable jaw's periodic up and down
Technical paremeters
|
Specification models
|
Max.size of
feed material (mm)
|
Adjustable range ofdischarge opening (mm)
|
Productvity
(t/h)
|
Electric motor power
(Kw)
|
Overall dimensioms (L×W×H) mm
|
Weight
(Kg)
|
PE150×250 |
125 |
10-40 |
1-4 |
5.5 |
875×745×935 |
860 |
PE250×400 |
210 |
20-80 |
5-20 |
15 |
1430×1310×1336 |
2650 |
PE400×600 |
340 |
30-90 |
15-43 |
30 |
1565×1732×1586 |
6500 |
PE500×750 |
425 |
50-100 |
45-100 |
55 |
1890×1920×1960 |
11100 |
PE600×900 |
500 |
65-160 |
50-120 |
75 |
2520×1840×2300 |
15500 |
PE750×1060 |
630 |
80-140 |
115-220 |
110 |
2722×2472×2840 |
29000 |
PE900×1060 |
750 |
120-250 |
290-360 |
110 |
2872×2472×2840 |
31000 |
PE900×1200 |
750 |
230-290 |
290-360 |
160 |
3335×3180×3025 |
500 |
Company profile
About our company
1.Zhengzhou Huahong Machinery Equipment Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.
2.We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3.We attach thedevelopment of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.
4.Honesty and credit is our bussiness value, customer first.First-class quality and
first-class service is the business life.
