Specifications
1. suitabe for large scale produciton2. high efficiency belt dryer
3.Wide range of application

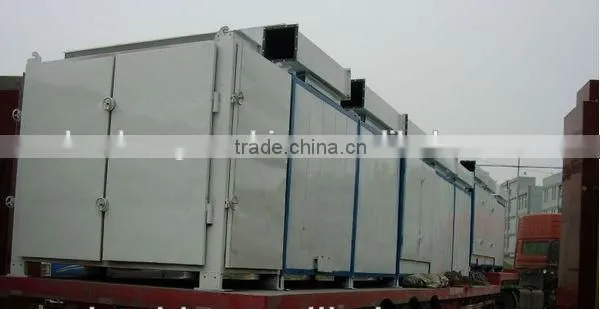

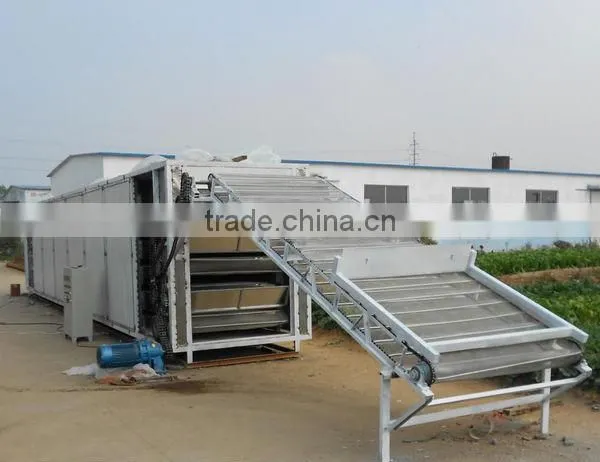

General Description of Sawdust Mesh Belt Dryer
- Sawdust mesh belt dryer is widely used to drying briquettes in sawdust / coal / charcoal / carbon black / mineral powder briquettes production line.

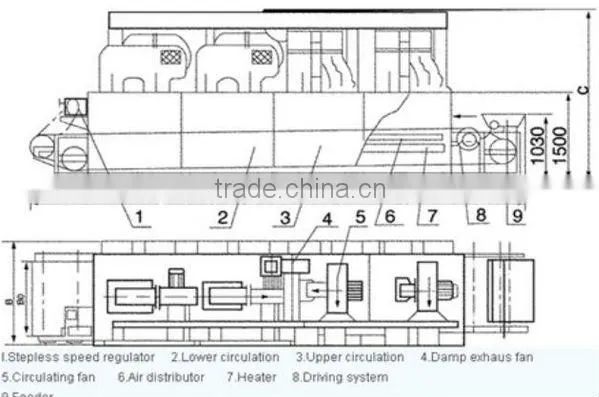

Working Principle of Sawdust Mesh Belt Dryer

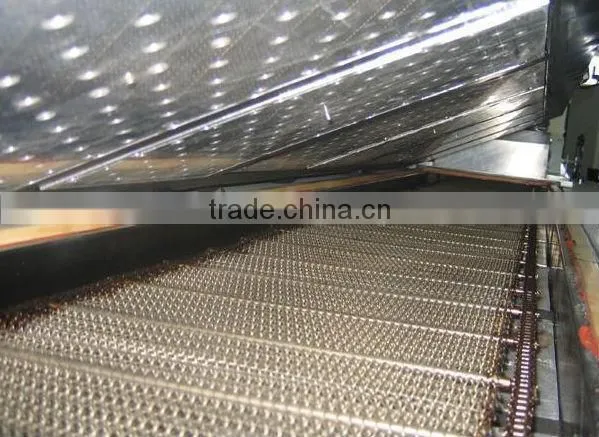

- The material evenly tile in mesh belt, drag from the gear moves back and forth in the sawdust mesh belt dryer, and hot air in between the material running through it, humidity and water vapor from the exhaust hole, so as to achieve the purpose of drying.
Features of Sawdust Mesh Belt Dryer
- A small investment, quick drying speed, high evaporating intensity.
- High efficiency, high yield, good quality of product.
- Can regulate air quantity, heating temperature, residence time of materials on the dryer
- The heat source may be heat conduction oil, or gas hot air furnace.
Main Technical Parameters of Sawdust Mesh Belt Dryer
Type |
HH-1.2-8 |
HH-1.2-10 |
HH-1.6-8 |
HH-1.6-10 |
HH-2-8 |
HH-2-10 |
|
Quantity of unit |
4 |
5 |
4 |
5 |
4 |
5 |
|
Belt width(m) |
1.2 |
1.6 |
2 |
||||
Length of drying section(m) |
8 |
10 |
8 |
10 |
8 |
10 |
|
Thickness of raw material(mm) |
≤60 |
||||||
Operation temperature(°C) |
50-140 |
||||||
Steam pressure(MPa) |
0.2-0.8 |
||||||
Steam consume(kg/h) |
120-300 |
150-375 |
150-375 |
170-470 |
180-500 |
225-600 |
|
Drying time(h) |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
|
Drying strength(kg/h) |
60-160 |
80-220 |
75-220 |
95-250 |
100-260 |
120-300 |
|
Power equipped(kw) |
11.4 |
13.6 |
11.4 |
13.6 |
14.7 |
15.8 |
|
Overall dimensions |
L(m) |
9.56 |
11.56 |
9.56 |
11.56 |
9.56 |
11.56 |
W(m) |
1.49 |
1.49 |
1.9 |
1.9 |
2.32 |
2.32 |
|
H(m) |
2.3 |
2.3 |
2.4 |
2.4 |
2.5 |
2.5 |
|
Weight(kg) |
4500 |
5600 |
5300 |
6400 |
6200 |
7500 |
|
Perfect Service System
- (1) Pre-sale Service
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
- (2) After-sale Service
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
1. What is requirement for mositure before drying and mositure after drying?
- Generally, mositure before drying is within 8%-12% and moisture after drying is within 1%-3%.
2. Do you provide custom-made service?
- We are manufacturer, so the machine can be designed as your wish.
3. How is the machine price?
- We can provide the machine at the factory prices.
Contact Information
- Contact person: Niki Zhang
- Tel:0371-67898087
- Cell phone: +86 15225930308
- Skype: huahongmachine12
- Website: http://www.
With over 30 years manufacturing experience.our factory are ready to serve you now !
If you want to know more details or any other related machines, please don't hesitate to contact me!
