Endurable frp solar photovoltaic bracket roll forming machine

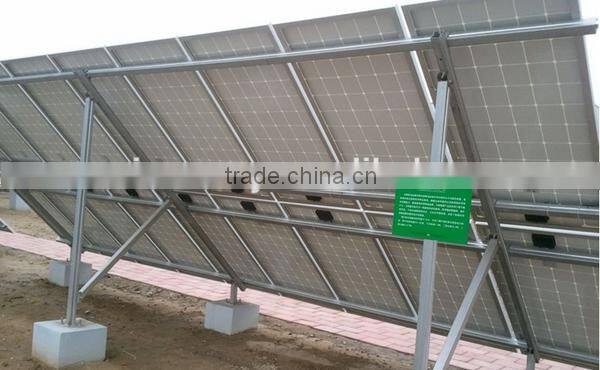

Brief Introduction of Solar photovoltaic bracket
The application of the solar energy support system in the support of solar panels is much more than simple production and installation. Solar panels can also be moved according to the sun's rays and seasons. Just as in the first installation, the inclined plane of each solar panel can be fixed on the specified position by moving the fastener to adjust the bevel to meet the different angles of the light.
The related products of the solar energy support system are carbon steel and stainless steel. The surface of the carbon steel is made of hot dip galvanized, and the outdoor use is not rusty for 30 years. Features: no welding, no drilling, 100% adjustable, 100% can be reused.

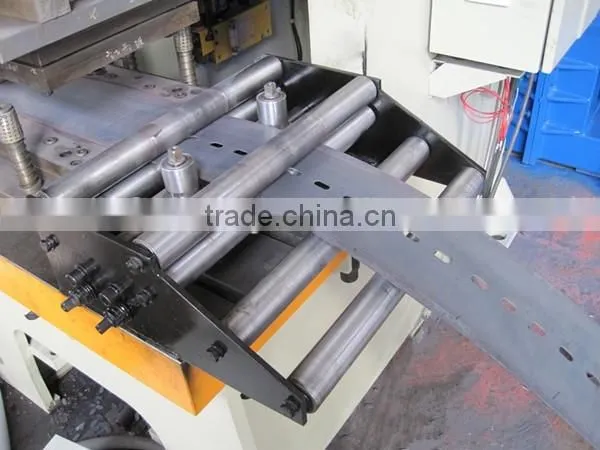

Solar Bracket/Photovoltaic Stents/Solar Panel Mounting Bracket roll forming machine is composed of de-coiler, leveler&servo feeder, continuously punching machine, roll forming, correction, cutting, collection table, electrical control system etc.

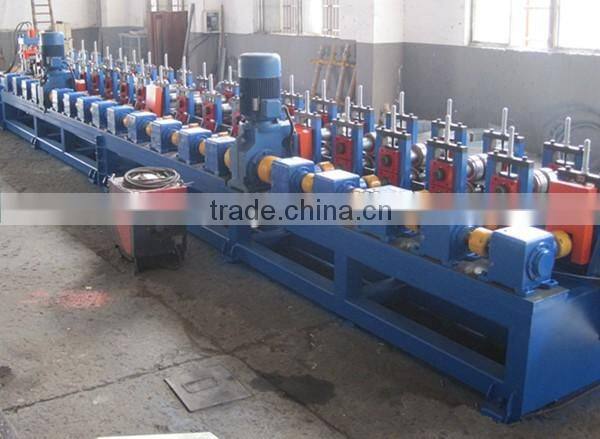

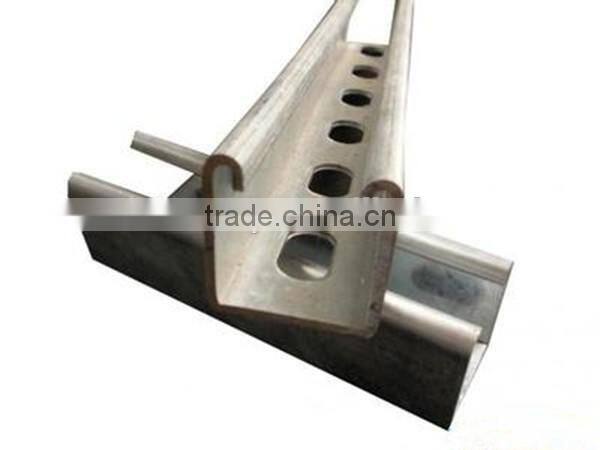

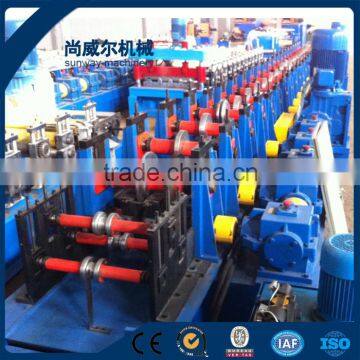

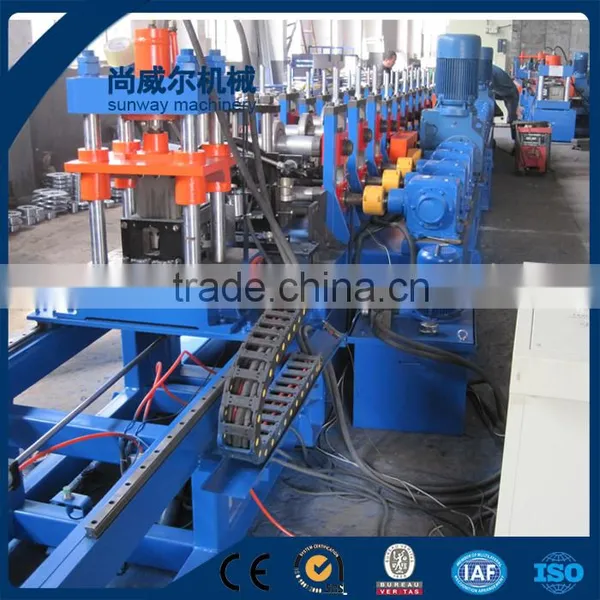

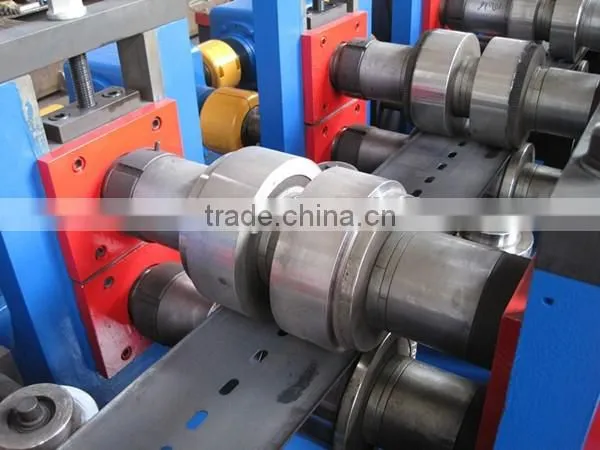

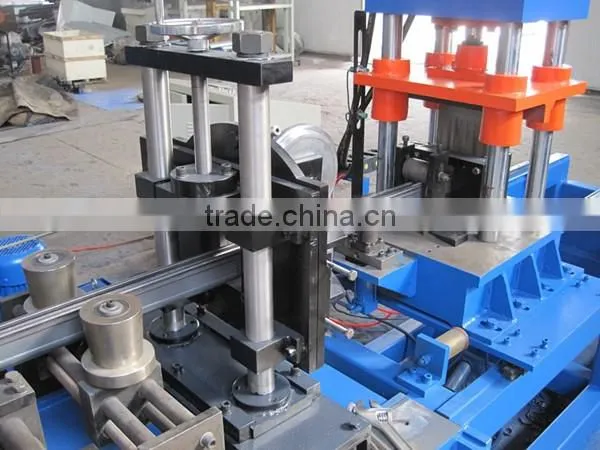

General machine photo show with different profiles
Machine Technical parameter
The technical parameter will be some different if with different profiles!
We can design and make machines according to customer profiles!
No |
Part |
Model and specific |
Quantity |
Remarks |
1 |

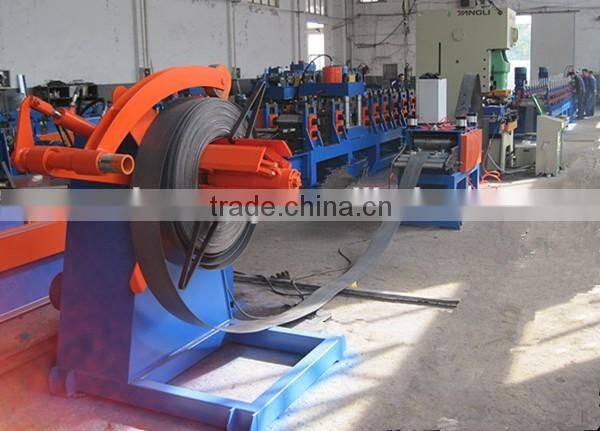

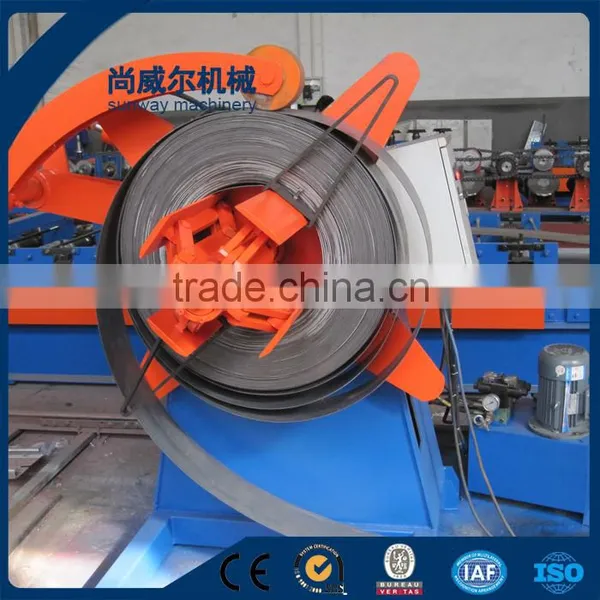

Uncoiler |
5T Automatic |
1 set |
5.5KW+3KW |
2 |

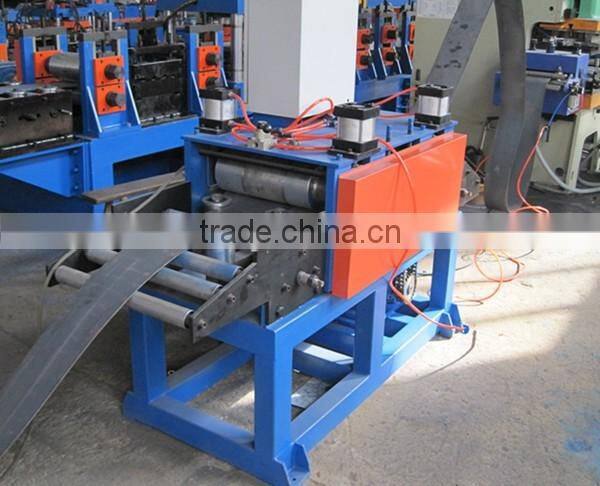

Servo feeder & Straightener |
With individual control system |
1 set |
5.5KW |
3 |

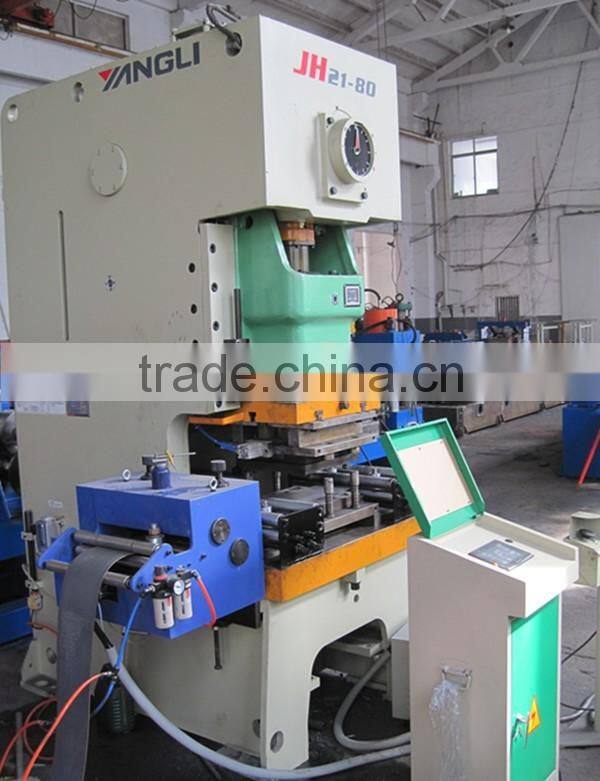

Press machine |
80T |
1 set |
YANGLI |
4 |
Punching mould |
SKD11 |
|
According to hole layout |
5 |
Roll forming machine |
Single station. By gearbox |
1 set |
22KW |
6 |
Hydraulic cutter |
|
1 set |
5.5KW |
7 |
Conveyor |
Length: 3m |
3 sets |
|
8 |
Controller |
Whole machine PLC |
|
|
9 |
Spare part |
|
|
|
Payment Term and condition
* Payment Term: 30 T/T in advance, 70% T/T before delivery
* Delivery Time: Within 50 Days after receipt of the down payment
* Warranty: 1 year and life-long maintainance
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 80 USD/day, and provide accommodation, food and the round-trip ticket fee.
* Installation Days: about 5 days
* Transporting: 2x40ft container

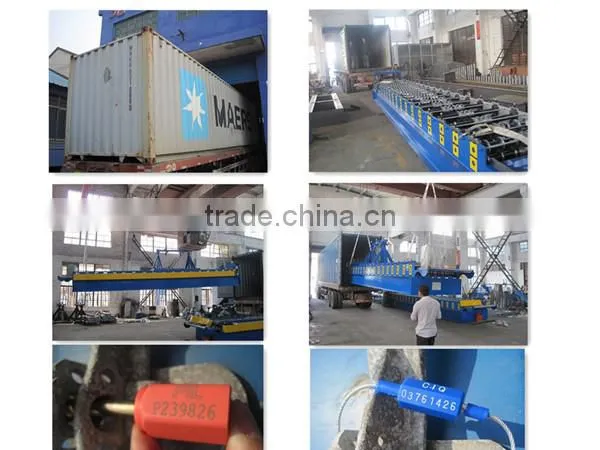

Container loading
Service
1. Design and produce machine full according client's requirement.
2.We will offer the include foundation drawing ,water ,electric,air layout drawing after we sign the contract. Operating manual will come along with the machine , the size and model of the purchased part and easily damaged part drawing also include.
3.My company will send 1-2 engineer(according your requirement) to installing the machine and responsible for training the worker of customer until they can operating the machine skillful.

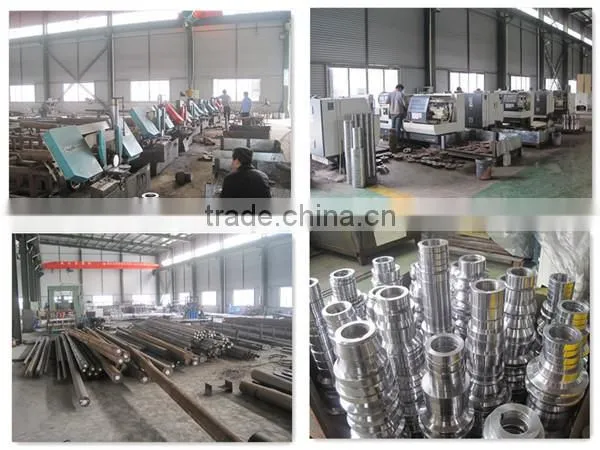

Factory picture
If you need more information, please be free to contact me anytime!
I am sincerely to offer our best quality and service to meet your requirements!!!
Solar Bracket/Photovoltaic Stents/Solar Panel Mounting Bracket roll forming machine
Endurable frp solar photovoltaic bracket roll forming machine
