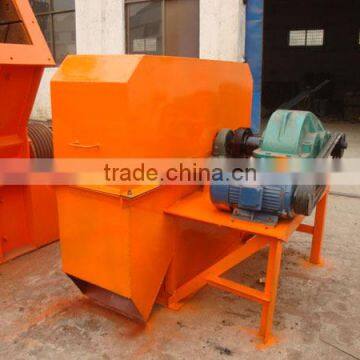

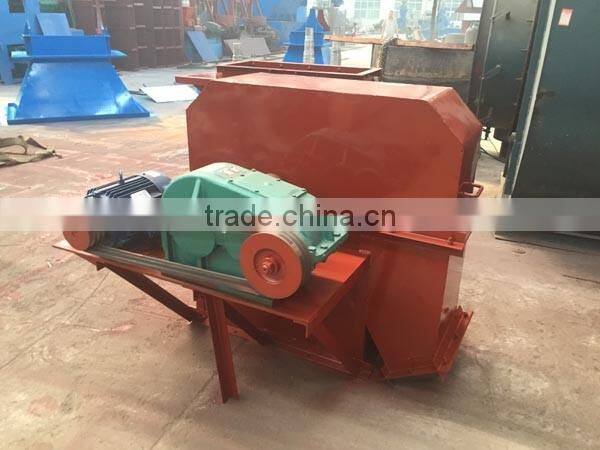

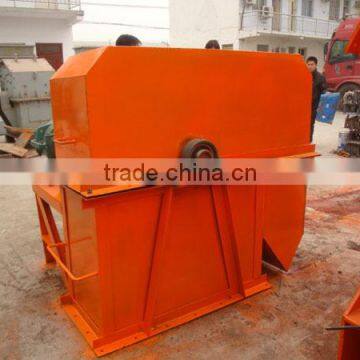

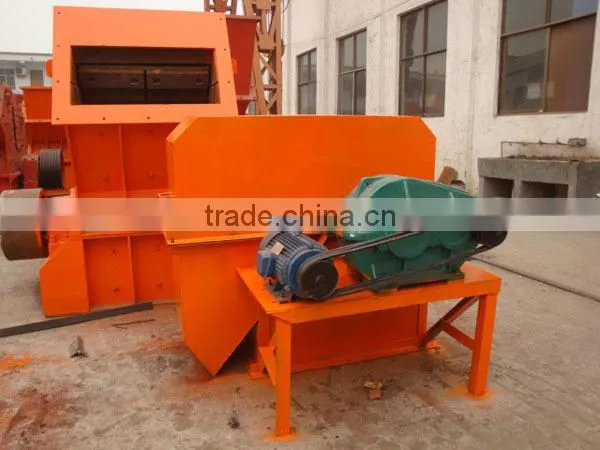

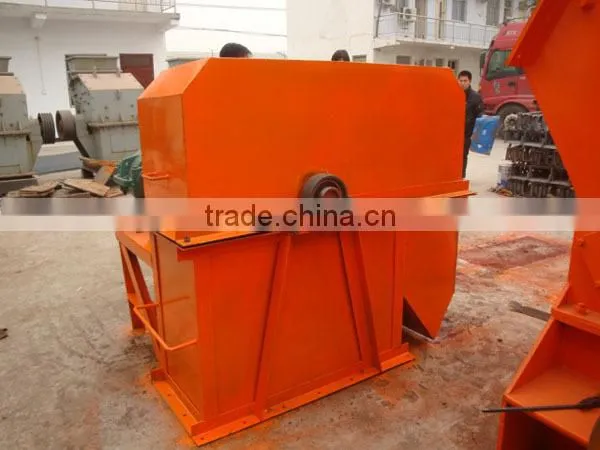

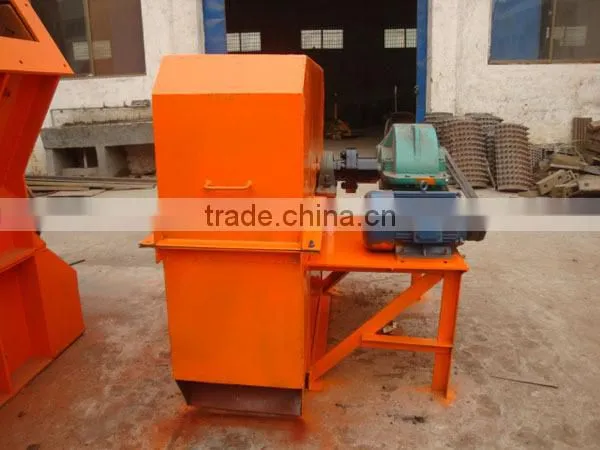

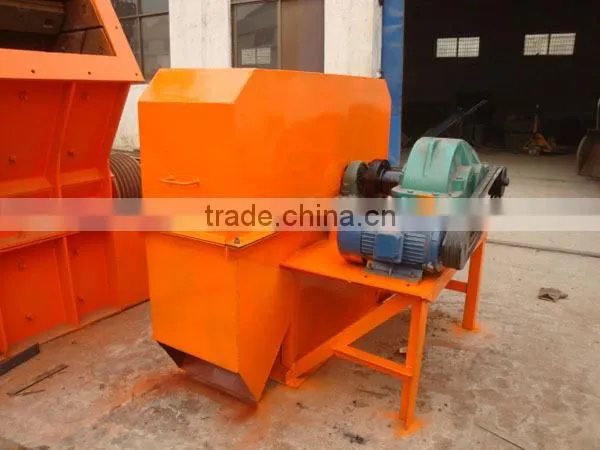

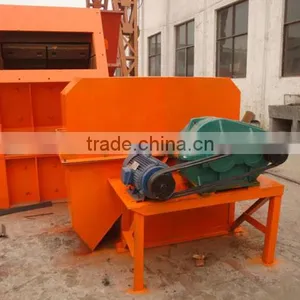

Huahong elevator bucket,grain bucket elevator,rice mill bucket elevator for sale
1. Brief introduction of bucket elevator
(1Bucket elevator has characteristics of large transport capacity, high elevation, stable operation and long working life.
(2The machine is applicable for conveying the powder, grain and small block materials, such as coal, cement, block, sand, clay and ore.
(3)The bucket elevator is allowed to convey materials with high temperature(250c)when armed with special chain structure, and the elevating height can reach 40m.
2.Features of Bucket Elevator
A.Obvious features like low power required, effective inflow feeding & guiding discharge.
B.It has vast range of application with almost no limitation for lifting material forms and properties. Materials like power, grain or big lump could be all applicable .Also its good sealing condition could effectively reduces the environmental pollution.
C.Excellent running reliability. Advanced design and processing method ensure the running reliability of the complete machine.
D.Long service life. The design of this machine ensures that the materials is seldom scattered while feeding and discharging, which reduces the mechanical wearing.
3.Features:
1. Large capacity. (~240 m3/h)
2. Small space on the floor.
3. Higher lifting height (~40 meters)
4. It takes belt or chain as traction device. So less wear parts, longer life.
5. Running stably. AC motor and reduction gears are as its driving device. Lowfailurerate. It can be also suitable for continuous working.
6. Environmental, no pollution. Low noise (68~76 dB), good sealing, no dust leakage, no dust pollution.
4.Main technical parameters
Model |
Lifting Capacity (m3/h) |
Bucket-Speed (m/s) |
Feeding |
Bucket Volume (L) |
Bucket Spacing (mm) |
||
Zh |
Sh |
Zh |
Sh |
||||
TH160 |
15.77 |
24.97 |
1.4 |
≤25 |
1.2 |
1.9 |
500 |
TH200 |
17.87 |
28.6 |
1.4 |
≤30 |
1.5 |
2.4 |
500 |
TH250 |
31.43 |
48.19 |
1.4 |
≤35 |
3.0 |
4.6 |
500 |
TH315 |
35 |
60 |
1.4 |
≤40 |
3.75 |
6 |
512 |
TH400 |
58 |
94 |
1.4 |
≤45 |
5.9 |
9.5 |
512 |
TH500 |
75 |
118 |
1.4 |
≤50 |
9.3 |
15 |
688 |
TH630 |
114 |
185 |
1.4 |
≤660 |
14.6 |
23.6 |
688 |
Hey, friend, I'm so glad you can focus on the products of our company.
We are direct factory. Our company can customize professional product according to the client's desire. We are designed to raise the quality, improve the efficiency, cut down the capitalized cost, reduce labor, as well as supporting the production line.
