EAS Digital Security Label Detection Antenna for Retail Loss Prevention

EAS digital security label detection antenna for Retail Loss prevention  WT9500RF3DS

Electronic Article Surveillance ( EAS ) is a kind of electronic anti shoplifting system that can decrease shoplifting when retailing enterprise implement open-shelf sale ,so increase sales and profit .EAS system consists of electronic sensors , deactivator system and label or tag .Electronic sensor that are located at store exits , a transmitter sends a unique signal at certain frequencies to a receiver , which creates a “surveillance area “ at a stire exit  when a product with an active label or hard tags is moved past a sensor , the sensor sets off an alarm .

Technical specifications :

RX&TX Panel    EAS digital security label detection antenna for Retail Loss prevention

Model name      WT9500RF3DS

Introduction :

High grate Aluminum Alloy Al2O3 Anodic oxidation wire drawing process ;

Domestic exclusive DSP technology , three bar design ,small blind, Ultra wide door distance installation ;

Designing for the large and medium-sized clothing store ,shoes & hats store , cosmetics store , package store etc ;

Inspected by National Quality testing central , selling well in overseas market

Product image :

Electric Circuit board :

The domestic only real digital eas board !

" The First Clock Theory " patent solved the bottleneck problem of domestic DSP Technology ,

 which means using the digital method for reference pulse .

We are the only real digital eas board manufacturer in China .

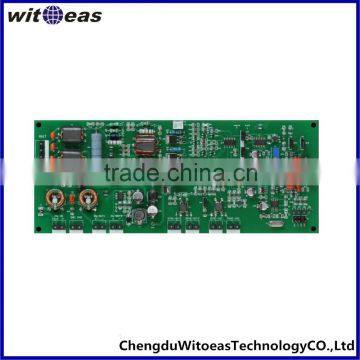

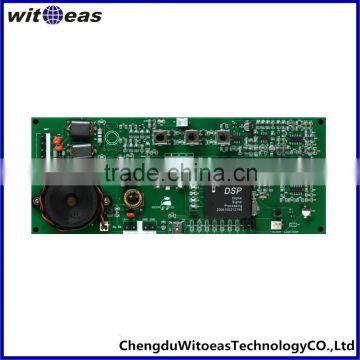

This board is our DC12V high digital eas pcb board for our RF3 series .

1-Green board , environmental protection ; 2-MINI board design , high intergration ; 3-DC12V , high digital ;

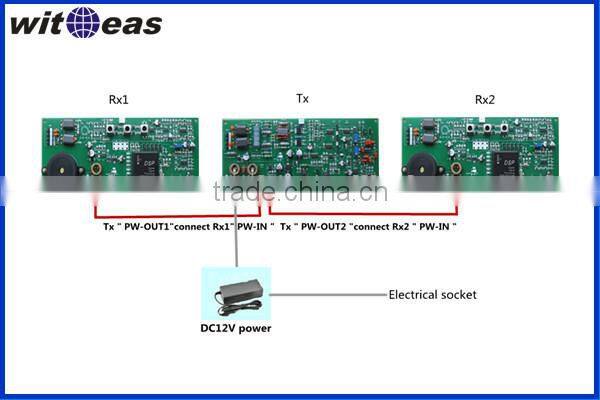

2 RX & 1 TX

2 Rx & 2 Tx

Our advantages :

1-Only one Potentionmeter , easy to debug;

2-We only have8 chips , common type have 15 and even more ;

3-We are the domestic only real Digital EAS board manufacturer , We emphasize " Processing ,but not just a processor ,   we have patent in this technology .

Function performance :

Aesthetics : Adopt High grate Aluminum alloy drawing process,  fashion atmosphere.

Fashion :In accordance with modern decorate style ;

Stability : Adopt DSP technology , high alarm rate ,low rate of false alarm;

Advancements : Patent design and with independent Intellectual property rights;

Operability: manual adjustment ,only one potentiometer to commissioning the sensitivity .

Independence: Transceiver , mono can be work

Install method : Embedded parts, cutting, trunking

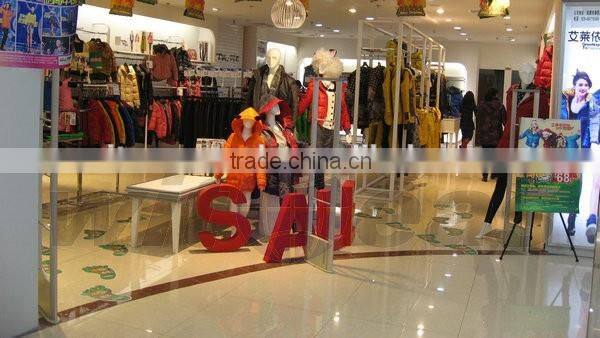

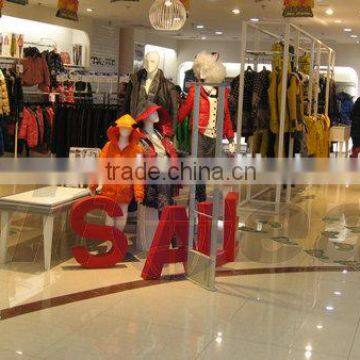

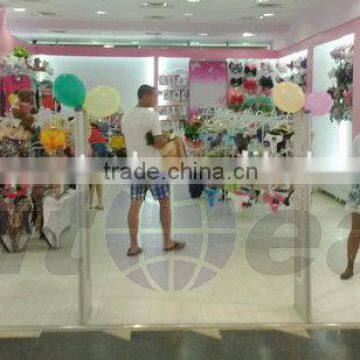

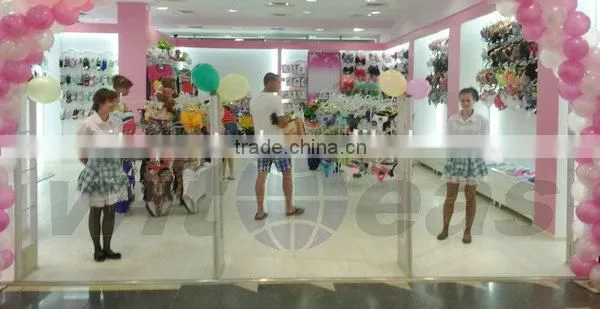

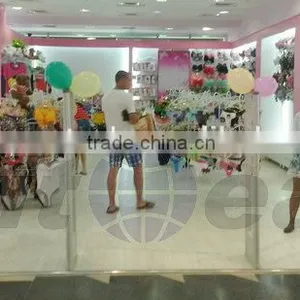

Installation cases :

Chengdu Witoeas Technology Co.,Ltd have been focused on EAS ( Electronic Article Surveillance ) systems since the first domestic EAS systems MG2000 born in Chengdu , China , 1995.

We manufactures a complete line of Radio Frequency (RF) systems, Acousto-Magnetic (AM) systems that are compatible with all industry standard security tags , labels , and label deactivators , detacher.

Our technologies utilize the latest in digital signal processing (DSP) to assure high detection rate and virtually trouble free operation. The loss prevention and theft detection solutions under Acusto-Magnetic (AM) and Radio Frequency (RF) technologies help reduce shoplifting in retail stores and supermarket.

Certifications :

In May 2006,We won the patent certification of EAS Appearance design ;

In July , 2006 , We won the patent certification of Commodity inspection signal receiver;

In August , 2006 , We won the patent certification of Commodity electronic detection synchronization;

In July , 2007 , We won the patent of Self-help type Commodity Anti-theft system and using method ;

In 2010 , we become the member of CHINA SECURITY & PROTECTION INDUSTRY ASSOCIATION ;

IN 2013, we got the patent certification of AM inspection systems ;

Delivery Time: 2-5 working days for sample, 5-20 working days for bulk.

Payment: T/T

Shipping: By sea ( For Big order )

                  By air, DHL, FEDEX, TNT, UPS, etc. ( For sample order )

1. MOQ——For eas system / eas board , MOQ : 1 set ; For eas label , eas tag , MOQ : 1000pcs

2.Quickly Delivery Time:

   2-5 working days for sample, 5-20 working days for bulk.

3.Quickly reply :

  All inquiries will be replied within 24 hours ;

4.We are professional manufacturer , welcome to visit our website .

5. Warranty: 1 years warranty. ( From EXW date ) ;

6.After sales service :

   1)All products will have benn strictly Quality inspection before packing ;

   2)All products will be well packed before shipping ;

7. Payment terms : T/T

8.Shipping: By sea, by air, DHL, FEDEX, TNT, UPS, etc.
