High digital dsp board 8.2Mhz eas anti-shoplifting system WT9500RF3DP
Electronic Article Surveillance ( EAS ) is a kind of electronic anti shoplifting system that can decrease shoplifting when retailing enterprise implement open-shelf sale ,so increase sales and profit .EAS system consists of electronic sensors , deactivator system and label or tag .Electronic sensor that are located at store exits , a transmitter sends a unique signal at certain frequencies to a receiver , which creates a “surveillance area “ at a stire exit when a product with an active label or hard tags is moved past a sensor , the sensor sets off an alarm .
Here’s how EAS systems benefit you
• Reduces your shoplifting losses
• Identifies thieves as they walk out
• Provides a deterrent effect
• Creates a more pleasant shopping environment
Technical specifications :
RX&TX Panel High digital dsp board 8.2Mhz eas anti-shoplifting system
Model name WT9500RF3DP
| Frequency: | 8.2MHz |
| INPUT POWER: | 220VAC |
| Work Voltage: | DC 12V |
| ALARM INDICATION | SOUND & FLASH |
| SIGNAL PROCESSING MODE: | DSP |
| DETECTION RANGE: | |
| Soft Label (4*4cm) | ≤ 140cm |
| Mini Hard Tag | ≤180cm |
| Hard Tag | ≤230cm |
| Warranty | 12 months |
Introduction :
High grate Aluminum Alloy fashionable design , perfect crow's feet pressure membrane process;
Domestic exclusive DSP technology ;
Three bar design , small blind , ultra wide door distance installation ;
Designing for the large and medium-sized clothing store ,shoes & hats store , cosmetics store , package store etc ;
Inspected by National Quality testing central , selling well in overseas market.
Product image :
Our advantages :
1-Only one Potentionmeter , easy to debug;
2-We only have 8 chips , common type have 15 and even more ;
3-We are the domestic only real Digital EAS board manufacturer in mainland , China , We emphasize " Processing ,but not just a processor , we have patent in this technology .
4-Green eas board , environmental protection ;
For Example :

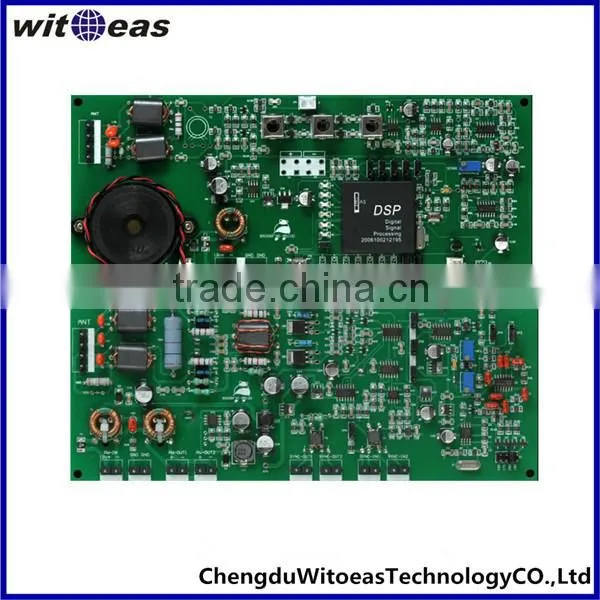

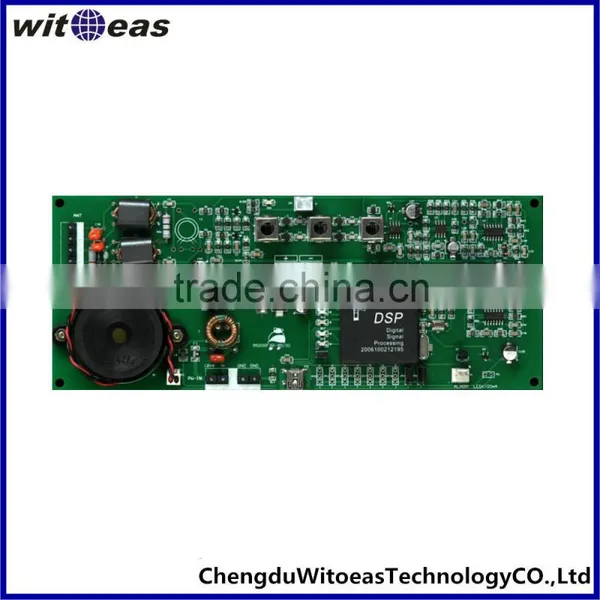

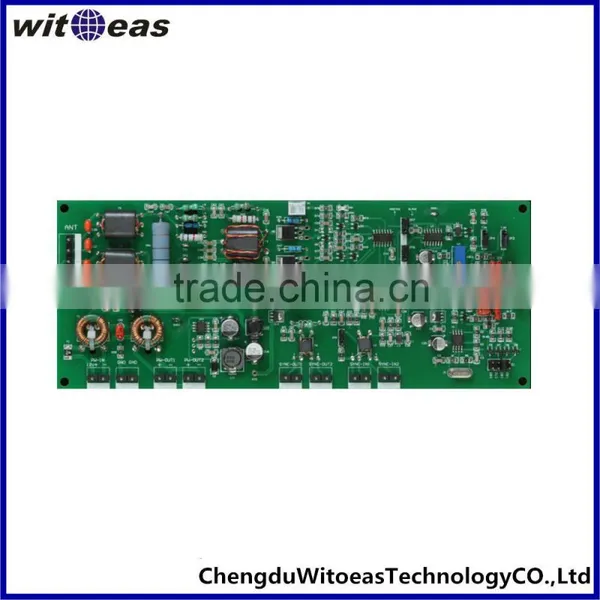

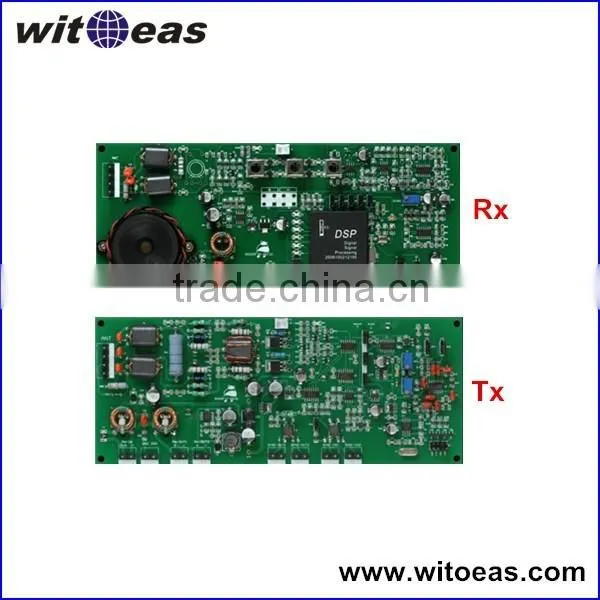

The model is eas pcb board for our eas rf system RF3 series : Rx board , Tx board
Model Name : DC12V high digital eas pcb board WT9500RF3 | |
Specifications | |
Size |
21.7 *8.7cm |
N.W |
152G ( Tx board ) 140G ( Rx board ) |
Label frequency optional |
7.2M , 8.2M |
Modulation Frequency optional |
160Hz , 170Hz , 180Hz , 190Hz |
Detection range : | |
Soft label ( 4*4cm) |
140cm |
Small square |
170cm |
Big square |
200cm |
Function performance :
Aesthetics : Adopt High grate Aluminum Alloy drawing process, fashion atmosphere.
Fashion :In accordance with modern decorate style ;
Stability : Adopt DSP technology , high alarm rate ,low rate of false alarm;
Advancements : Patent design and with independent Intellectual property rights;
Operability: manual adjustment ,only one potentiometer to commissioning the sensitivity .
Independence: Transceiver , mono can be work
Install method : Embedded parts, cutting, trunking
Installation cases :
Chengdu Witoeas Technology Co.,Ltd have been focused on EAS ( Electronic Article Surveillance ) systems since the first domestic EAS systems MG2000 born in Chengdu , China , 1995.
We manufactures a complete line of Radio Frequency (RF) systems, Acousto-Magnetic (AM) systems that are compatible with all industry standard security tags , labels , and label deactivators , detacher.
Our technologies utilize the latest in digital signal processing (DSP) to assure high detection rate and virtually trouble free operation. The loss prevention and theft detection solutions under Acusto-Magnetic (AM) and Radio Frequency (RF) technologies help reduce shoplifting in retail stores and supermarket.
Certifications :
In May 2006,We won the patent certification of EAS Appearance design ;
In July , 2006 , We won the patent certification of Commodity inspection signal receiver;
In August , 2006 , We won the patent certification of Commodity electronic detection synchronization;
In July , 2007 , We won the patent of Self-help type Commodity Anti-theft system and using method ;
In 2010 , we become the member of CHINA SECURITY & PROTECTION INDUSTRY ASSOCIATION ;
IN 2013, we got the patent certification of AM inspection systems ;
1. MOQ——For eas system / eas board , MOQ;1 set ; For eas tag / eas label , MOQ :1000pcs
2.Quickly Delivery Time:
2-5 working days for sample, 5-20 working days for bulk.
3.Quickly reply :
All inquiries will be replied within 24 hours ;
4.We are professional manufacturer , welcome to visit our website .
5. Warranty: 1 years warranty. ( From EXW date ) ;
6.After sales service :
1)All products will have benn strictly Quality inspection before packing ;
2)All products will be well packed before shipping ;
7. Payment terms : T/T
8.Shipping: By sea, by air, DHL, FEDEX, TNT, UPS, etc.
Q : Are you manufacturer ?
A: Definitely we are manufacturer , Our factory located in Chengdu City , Sichuan , China .
Q : What's your main products ?
A: Our main products include EAS RF systems , EAS AM systems , Eas board , EAS accessaries etc .
Q: Why choose Witoeas? Any advantages?
A: The answer is Yes. There are 4 advantages.
(1) MUTUAL BENEFIT: We are a factory, our price will be cheaper in the same quality.
(2) MIX ORDER: We accept mix order, different model and small quantity order.
(3) AFTER SERVICE: (a)1 Years Guarantee. (b) ALl products will be strictly inspected before shippment .
(4) The best After-sales service : Keep in touch with customer anytime .
Q:What we can benefit from our cooperation ?
A: Steady quality , Fast delivery , Competitive price .
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order. Welcome to place sample order .
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested models in our site.
B: Please send inquiry to me .
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Thanks for your time of viewing. E-catalogue and Quotation sheet will be sent .Write to me and let's talk details .
