Uhf Rfid Container Lock for Container Management With Rfid Handheld Reader

Uhf Rfid Container Lock for Container Management With Rfid Handheld Reader photo-1
Uhf Rfid Container Lock for Container Management With Rfid Handheld Reader photo-2
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VANCH
Model Number:
VT-117
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name VANCH
Model Number VT-117

uhf rfid container lock for container management with rfid handheld reader

System Introduction

When the container installed with the RFID seal tag, the seal tag will communicate with the handheld reader the customs officer hold. The tag will be read by the reader and the reader will transfer the data to database of the management software. This could distinguish if the container is the correct ones.  UHF RFID container with seal tag management is based on the IOT technical framework, use the handheld equipment to read the information, combine the RFID and pc software to build the information management platform.



The Systems including:

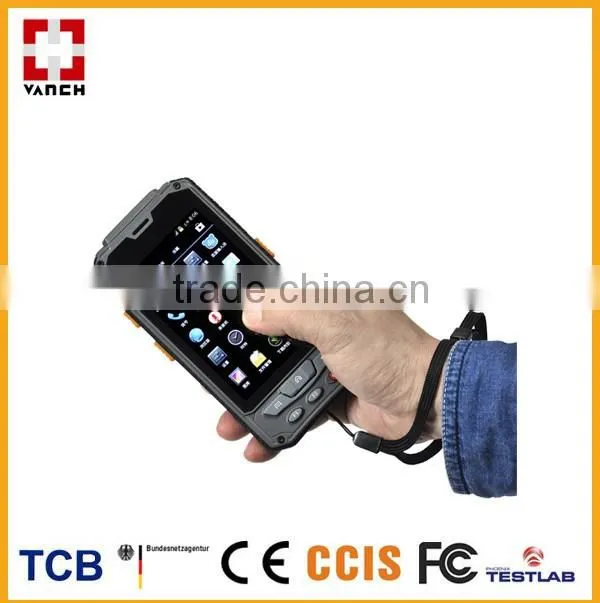

UHF RFID handheld reader VH-70A;

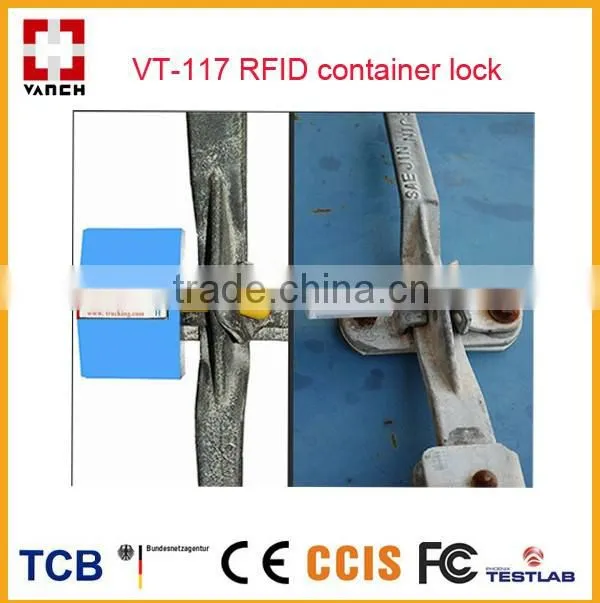

UHF RFID seal/container tag VT-117;

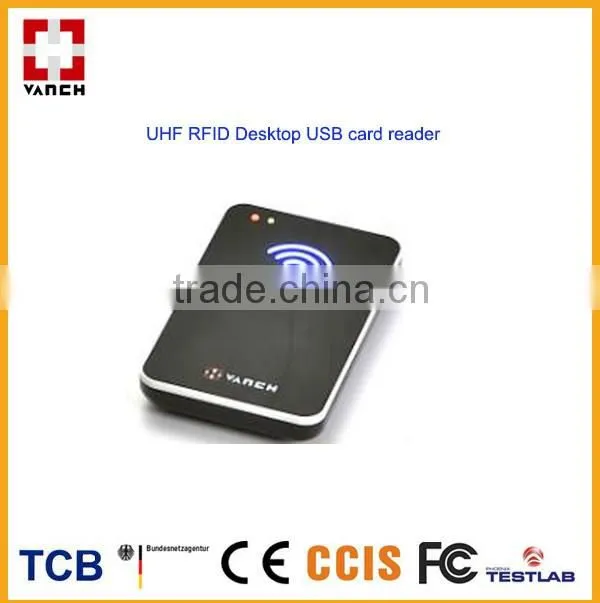

uhf rfid desktop reader VD-67;

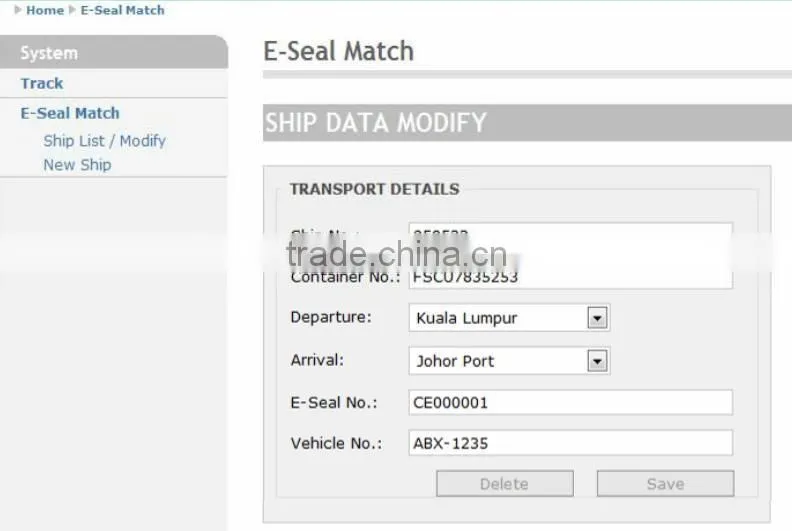

Application management software, we will provide the SDK for customer to develop the software part.

uhf rfid container lock for container management with rfid handheld readeruhf rfid container lock for container management with rfid handheld readeruhf rfid container lock for container management with rfid handheld reader





Application

RFID container tracking system.

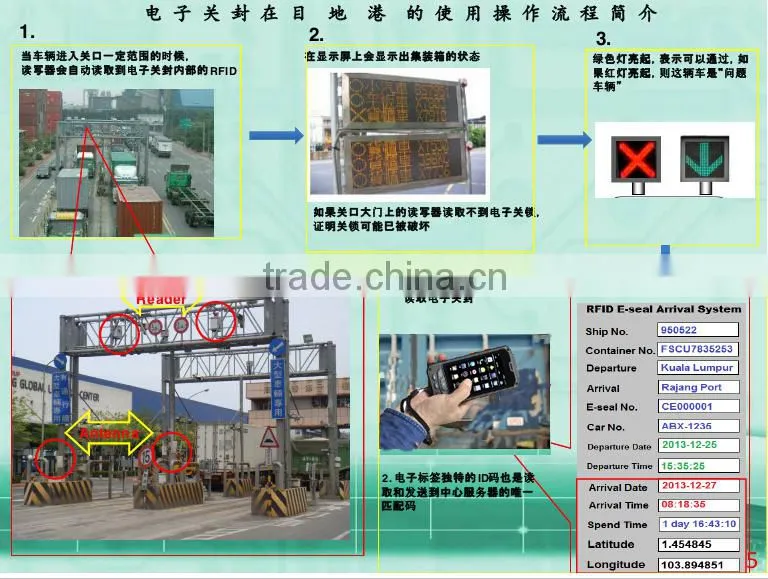

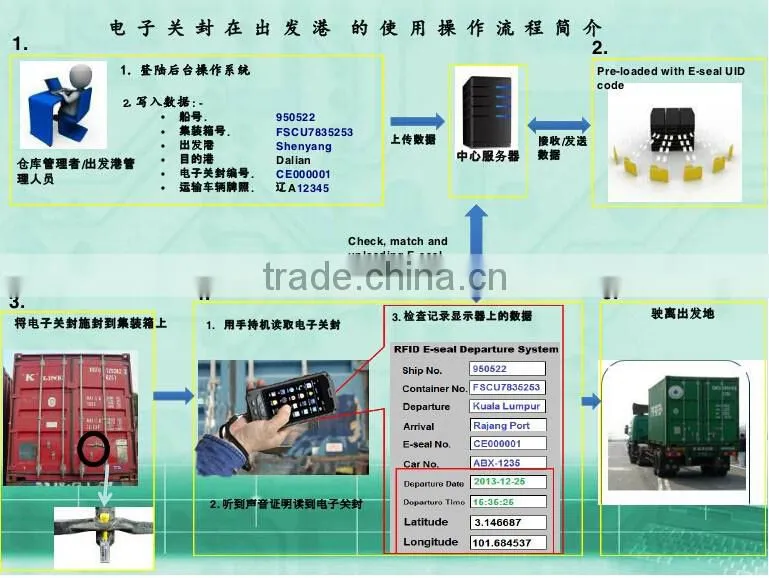

1. Write the related data information----2.Brief introduction for Seal tag operation procedure at departure port---3.Brief introduction for Seal tag operation procedure at destination port-----4. RFID automatically detects the door----5.RFID Vehicle access tags-----6.Data tracking and checkout

uhf rfid container lock for container management with rfid handheld readeruhf rfid container lock for container management with rfid handheld readeruhf rfid container lock for container management with rfid handheld reader



uhf rfid container lock for container management with rfid handheld readeruhf rfid container lock for container management with rfid handheld readeruhf rfid container lock for container management with rfid handheld reader





Specification



Model

VT-117



Performance index

Protocol

EPC CLASS1 Gen 2 / ISO 18000-6C

Chip

MONZA4 or Alien

Working frequency

840—960MHZ

EPC capacity

96bit

Unit dimension

Length 115*  diameter 24MM

weight

31 g

Reading distance

Over 6 meters over

Working model

Read/write

Storage time

>10 year

Cycling use

>100,000 times

Working temperature

-20°—85°

installation

locked

application

Container tracking

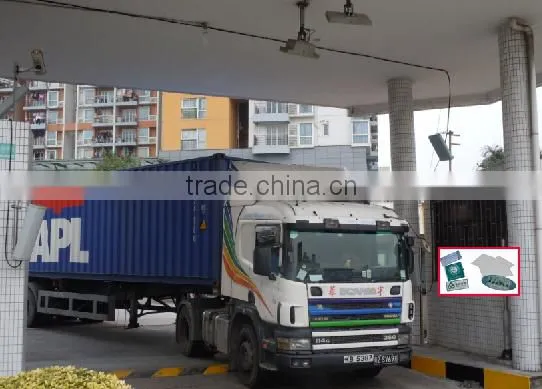

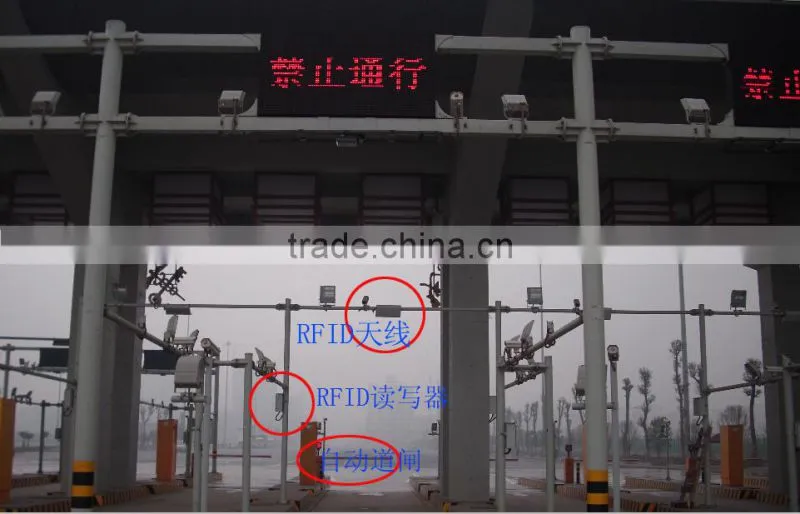

project pictures

Not only for this, we did some other related projects as well, pls check the project pictures.

Welcome to contact me at mail beata at if you have any interest!

uhf rfid container lock for container management with rfid handheld reader





Why choose us

** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.

** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.

** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.

uhf rfid container lock for container management with rfid handheld reader

uhf rfid container lock for container management with rfid handheld reader

If you want to know more details, please kindly contact me as the following:

Tel: 0086-755-82426775-622
Skype: beata1208x

Website:

ADD: Room#318, 502, Block#535, Buagualing, Futian District, Shenzhen, China
