UHF RFID READER for Production Line Inventory Systems

Name: UHF RFID READER for Production Line Inventory Systems
Brand: VANCH
SKU: 101693357
Availability: InStock

US$ 190 - 230 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VI-89F

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shezhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VI-89F

UHF RFID READER for production line inventory systems

Brief introduction

*Standard protocol: ISO-18000-6B, ISO-18000-6C (EPC G2), TK900.

*Antenna and reader integrated in one, small size, light weight, IP67 grade waterproof quick connector for easy installation.

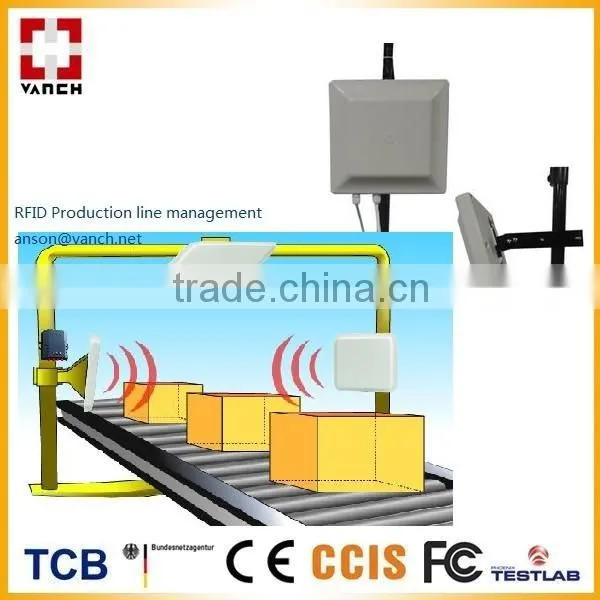

*Application for: logistics, access control systems, automatic parking management and production process control and other RFID systems.

Features

1, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard

2, Operating frequency is between 865-868MHz / 902- 928MHZ (can be adjusted according to different countries or regions)

3, RS232, RS485 and TCP / IP communication

4, Output power reach 30dbm, it is adjustable. Support auto mode, command mode and trigger mode.

5, highly reliable design of industrial structure to meet the requirement of work environment

Model#	VI-89F
Performance Index
Frequency range	902-928MHZ/865-868MHZ(or customized)
polarization	right-handed circularly polarized
Half-power beamwidth (°)	Horizontal polarization:65 Vertical:60
FM mode	FHSS or fixed frequency, set by the software
RF output	30dBm adjustable;50Ω load
Communication interface	LAN,RS232,RS485,Wiegand26/34,IEEE 802.11
Communication rate	Serial port 9600~115200bps,RJ45 10Mbps
GP I/O interface	I/O 12 pin + 4 pin
Power dissipation	average<10W
Application software	Provide with API SDK and VC, VB, Java application routines
Tag Operation Performance
Reading distance	6~10m equipped with 9dbi antenna(depends on the tag)
Air interface	EPCglobal UHF ISO-18000-6C(EPC G2),ISO-18000-6B
Mechanical and Electrical Performance
Dimension	26026065mm(excluding mounting bracket and external wiring)
Power supply	Equipped with power convertor 220V AC input, +9V/3A DC output
Working instruction	LED light indicator
Radome material	ABS Engineering Plastics
Radome Colour	White or grey
Weight	3kg
Installation	Embrace rod mounting
Diameter of support rod	35-50mm
Humidity	5% to 95%, non-condensing
Protection grade	IEC IP65
Operation temperature	-20 ºC to +60 ºC
Lightning protection	DC Ground
Connector interface	IP67 Grade waterproof quick connector
