Specifications
Vanch VM-5 RFID smart card reader module uhf rfid passive1: high-performance RF discrete components
2: 32-bit ARM processor

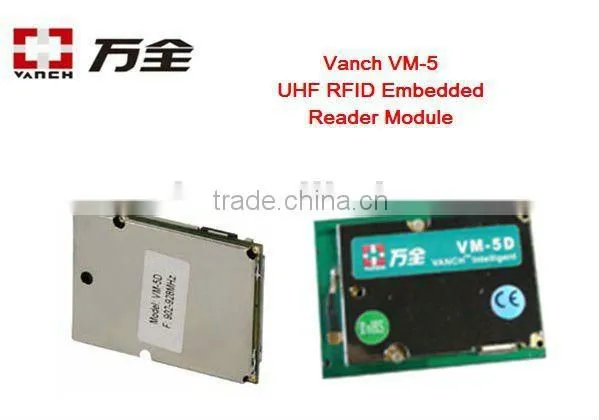

Vanch VM-5 RFID smart card reader module uhf rfid passive
Introduction
The module is small, low power consumption; its size is only half-card size, the preferred choice of embedded RFID reader
Features
1. The high-performance RF discrete components and 32-bit ARM processor design framework
2. Reading distance can reach 1.5 meters above, is best choice to apply RFID reader integration and development
Detailed Product Description:
1, comply with EPC G2 protocol
2, used to integrated into handheld terminal
3,1meter reading distance
4,rfid reader module
Overview:
This UHF RFID Reader chip is extensively applied to the integration of all kinds of handheld reader. It can be compitable with existing handheld terminal device. it is best choice for data collection.
Features:
1, comply with EPC G2 protocol
2, used to integrated into all kinds of handheld terminal
3, more than 1 meter reading/writing performance
4, with SDK for second development
Specification |
|
Model(order code) |
VM-5D |
Performance Index | |
Frequency range |
860-868MHZ,902-928MHZ(can be customized) |
Frequency modulation |
FHSS or fixed-frequency, can be set by software |
RF output |
30 dBm adjustable |
Communication |
RS232 (3V TTL Level) |
Tag Operation Performance | |
Reading distance |
Reading distance>150cm,writing distance>20cm* |
Reading time |
Per word (32bits)Read time 6ms,Per word (32bits)Write time 50ms; |
Protocol |
ISO-18000-6B,ISO-18000-6C(EPC G2) |
Mechanical electrical performance | |
Dimension |
61 (L) * 44 (W) * 8 (H) mm |
Power |
Low-power design, a single +5 V power supply; |
Weight |
30g |
Humidity |
5% to 95%, Non-condensing |
IP rating |
IEC IP40 |
Operating Temp. |
-20 ºC to +60 ºC |
Storage Temp. |
-40°C to 80°C |
