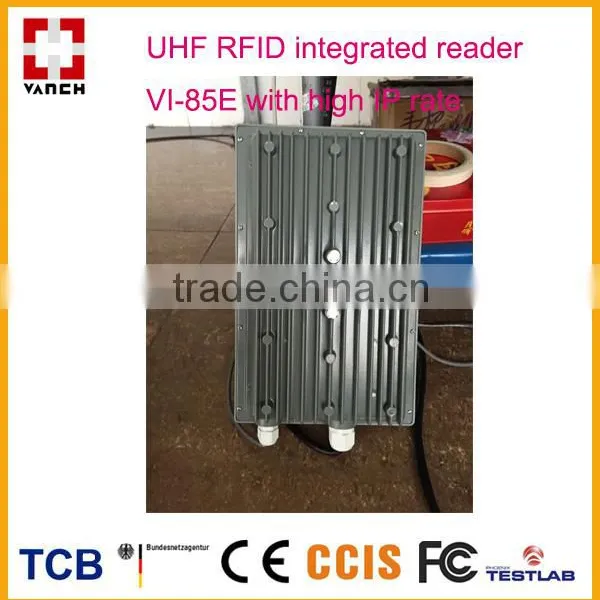

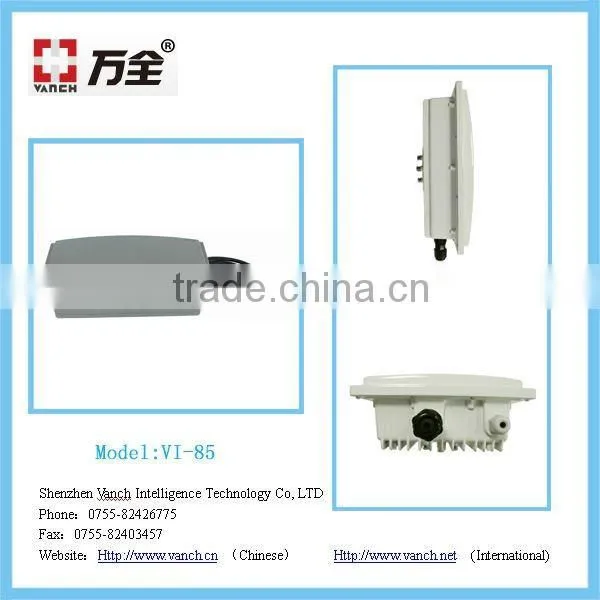

Help CenterUHF RFID Passive Long Range Card Tag Reader
Related Products
Data sheet of parameters
Model |
VI-85 |
Dimension |
260*260*45mm |
Weight |
1.5KG |
Operating Temp |
-20°C to 60°C |
Storage Temp |
-30°C to 80°C |
Humidity |
10% to 95% |
Non-condensing Enclosure |
IP-65 |
Frequency Range |
902-928MHZ or Customized |
Operation Mode |
FHSS or fixed frequency (set by software) |
Reading Mode |
Command, Trigger, Continuing |
Read speed |
32bits/6ms |
Write speed |
32bits/50ms |
RF power control |
20-30dBm |
Protocol |
EPC Class 1 Gen 2,ISO 18000-6B |
Communication Interface |
RS232/RS485/Wiegand26/34(Option:RJ45) |
Power supply |
External 110-220V AC,DC +9V 3A Power adapter |
Antenna |
Built-in 9dBi Circular Antenna |
Reading Clue |
Buzzer |
Reade range |
5~10m |
This reader can read and write for ISO-18000-6B,ISO-18000-6C(EPC G2),TK900 standard RFID TAGS. Integrated with antenna and reader, small volume, light weight, easy to install. Apply for vehicle access management, ETC, personnel access management, electronic security, logistics monitor, production automation management and other industry.

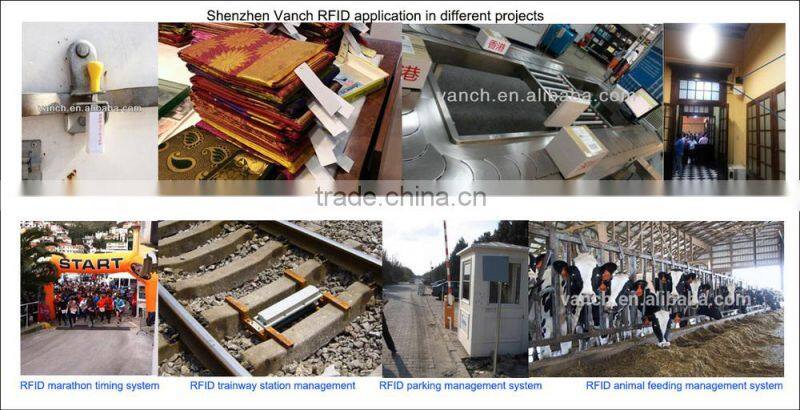

Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
If you want to know more details, please kindly contact me as the following:
