UHF RFID Impinj R2000 Reader Module For Handheld Reader

Name: UHF RFID Impinj R2000 Reader Module For Handheld Reader
Brand: VANCH
SKU: 101691903
Availability: InStock

Shenzhen Vanch Intelligent Technology Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VM-61

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VM-61

UHF RFID Impinj R2000 Reader Module For Handheld Reader

Brief Introduction

l Adopt high performance Impinj UHF Reader chip IndyR2000

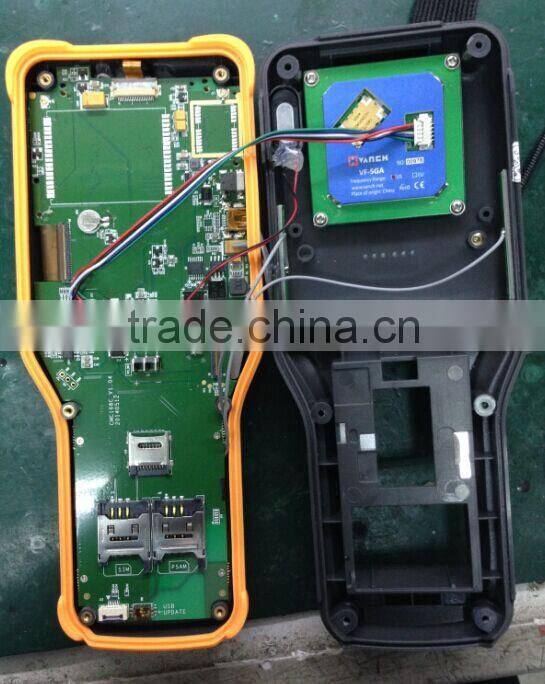

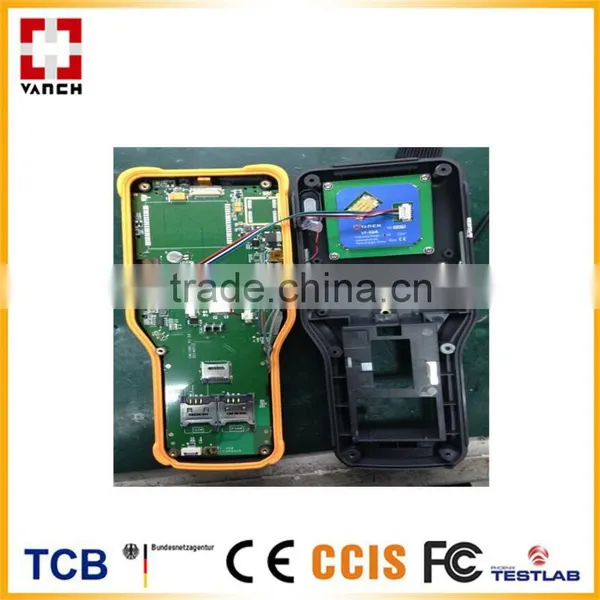

l Small dimension, low power, convenient to integrate into internal of handheld reader

Features

1, Full support protocols of ISO-18000-6B,ISO-18000-6C(EPC G2)

2, Working frequency: 865-868MH /902-928MHZ (can be customized)

3, Reading distance can reach 4 meters above, is best choice to apply RFID reader integration and development

Physical parameters:

Length (PCB length) mm	55.5 mm
Length (Including the RF connector) mm	55.5 mm
Width mm	39.5 mm
Height mm	7.5 mm
Operating Temp.	-20°C – +60 °C
Storage Temp.	-20°C – +85 °C
Operating Humidity	< 95% ( + 25 °C)

Antenna connector

MMCX connector	50 Ohm
SMA connector	50 Ohm	option

Electrical parameters

	minimum	typical	Maximum
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Frequency	860MHz		960MHz
Voltage	3.7V	4.2V	5V
Operating Current (30dBm output)	1.1A	1.2A	1.3A
Standby current	50mA	60mA	70mA
Maximum output power		33dBm
Minimum output power		20dBm
Output power accuracy		+/-1DB
Output power flatness		+/-0.2DB
Antenna connector protection		Support
Tag RSSI		Support
Antenna impedance matching measurement		Support
Dense reader mode (DRM)		Support
Ambient temperature measurements		Support
ESD protection		Multiple
