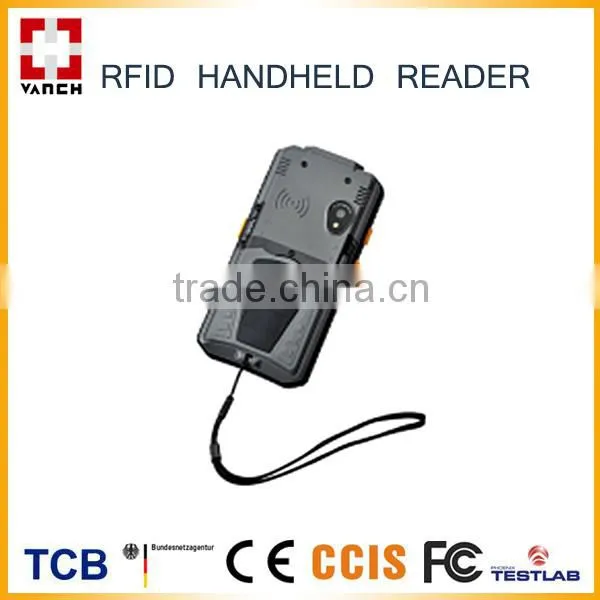

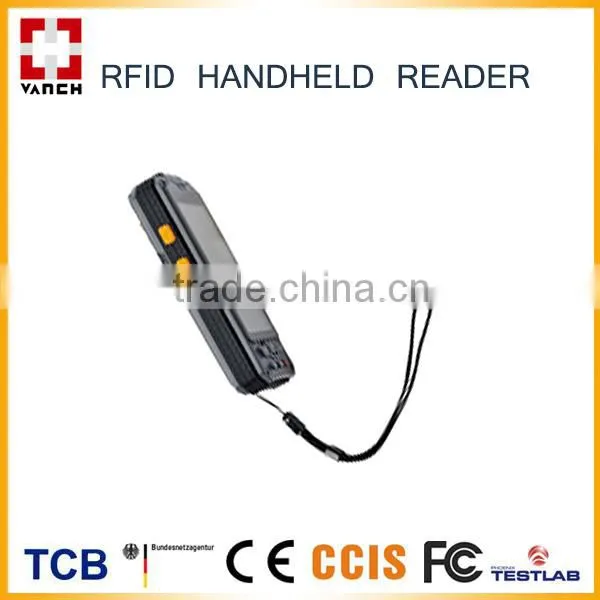

Bluetooth Handheld Rfid Card Reader

Features

The processor

Cortex A9 1.2GHZ double - core;

Memory capacity

ROM:EMMC 32Gb RAM: LPDDR2 8Gb

The operating system

Android 4.22

Wireless communications

GPRS(option)

GPRS, EDGE , 4-band 900/1800,850/1900

WCDMA(3G, option)

band 850/2100,Cat.8 HSDPA Cat.6 HSUPA

WIFI(standard)

Conform to the IEEE 802.11b/g

Bluetooth(option)

Conform to the Bluetooth 4.0

Display

4.3”IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible

Touch screen

Support more capacitive touch;

Indicator light

Network indicator light, charge indicator;

audio

Support the speech;

Micro SD card( Micro SD card)

Support 32 gb MICRO SD card;

Data security

Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost

GPS indicators

Channel: channel 12

Receive types: L1, C/A code and carrier phase smoothing

Re-capture: < 1 s

The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology

Error range: < = 10 meters

Navigation map

Support navione, baidu, Google, gold and other navigation map;

The input method

Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols

Physical interface

High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface

camera(option)

The rear 5 million pixel camera with flash;

The flashlight

Low power consumption LED lights lighting, emergency use;

Active in close communication

option)

Active 2.45 G

Distance is 200 m, 200 m label can be read all at once;

433M

Read more than 200 m distance, distance is adjustable;

Battery performance

The battery()

4000 mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1 a)

The battery standby time(

After a full charge, the wireless communication function on standby, after 360 hours, can run normally

Battery charging time)

Charging time < 4.5 hour

Charging time

More than 8 hours (once charging)

The work environment

Operating temperature

-20℃ ~50℃

Storage temperature

-20℃ ~70℃

Relative humidity

10%~90%RH,non indensity

Protection grade

IP65

Physical parameters

The total weight

Less than 300g (including battery, charger are not included);

The fuselage size

148 (L) x 77.5 (W) x 27 (T) ± 2 mm

The attachment

Standard

1 1 lithium battery, charger, USB data line
