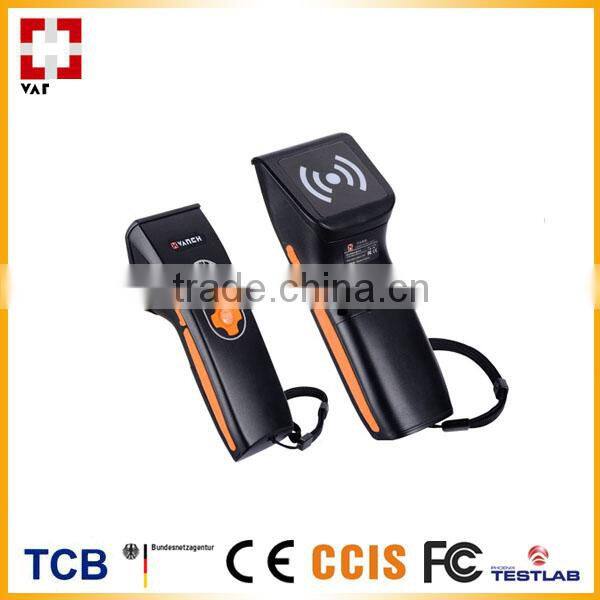

Bluetooth UHF Android RFID Reader Terminal VH-75

Name: Bluetooth UHF Android RFID Reader Terminal VH-75
Brand: VANCH
SKU: 101690459
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VH-75

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VH-75

Bluetooth UHF android RFID reader terminal VH-7

Introduction

l Development based on independent intellectual property rights, the reader can work on global RF frequency.

l The reader can easily online link to smart terminal(such as smartphone, tablet PC and etc.).

Feature

1. online linking to PDA,smartphone,tablet PC can reduce repeat purchasing cost;

2. support tags reading and writing with protocol ISO-18000-6C(EPC G2);

3. easy to read tag;

4. low cost, cheaper than handheld reader with PDA;

5. industrial structure, reliable design, adapt to harsh work environment;

6. provide with Android OS demo software and SDK.

Specification

Description
Model #	VH-75
Performance Index
Frequency range	865-868MHZ,902-928MHZ(can be customized)
FM mode	FHSS or fixed frequency, can be set by software
RF output	30 dBm, adjustable
Communication interface	USB1.1,bluetooth IEEE802.15 with rate 1Mbps
Tag operation performance
Read/Write distance	read>500cm,write>20cm
Protocol	ISO-18000-6C(EPC G2)
Mechanical electrical performance
Dimension	180(L)55 (W)30(H)mm
Power supply	Chargeable polymer battery(3.7V,3200mAH)
Tag reading hint	vibration,buzzer,LED
Memory card	2G(MiniSD)
Standby time	150 hours,scan times for one-time charge:5000 times
Weight	250g
Humidity	5% to 95%, non-condensing
IP rating	IEC IP56
Operating temperature	-20ºC to +50ºC
Storage temperature	-25°C to +70°C
