12dbi Omnidirectional Access Point Antenna

Name: 12dbi Omnidirectional Access Point Antenna
Brand: VANCH
SKU: 101689869

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VF-747, VA-912R

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VF-747, VA-912R

Specifications

1. UHF RFID frequency,long range
2. Save manual power
3. Improve the cargo in/out accuracy rate
4. gate data automatic

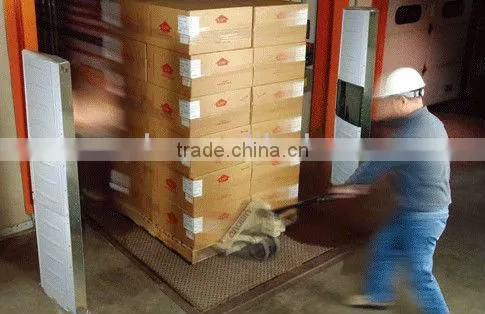

UHF RFID Gate system for cargo in/out control

Hardware:

VF-747----Fixed Reader

VA-912R--Antenna

RF Cable

Frame

Specification
Model	VF-747

Performance Index
Frequency range	860-868MHZ,902-928MHZ(can be customized)
Frequency modulation	FHSS or fixed-frequency, can be set by software
RF output	+10.0 to +32.5 dBm;50 ohm load.
The number of antennas	1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections
Communication interface	10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface
Communication rate	Serial rate 9600~115200bps,RJ45 is 10Mbps
Secure firmware upgrade	The upgrade mechanism can be extended
input / output (GPIO)	2 inputs, 1 output
Application software	Supply API SDK and VC and VB, Java application routines
Tag Operation Performance
Reading distance	8dbiAntenna configuration, typical read range: 3 to 25 m (depends on tag)
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B
Maximum receiver sensitivity	-82 dBm;Maximum return loss: 10 DBm
Mechanical electrical performance
Dimension	200 (L) * 200 (W) * 35 (H) mm
Power	With 220V AC input, the output of +12 V/3A DC power converter
Weight	<2KG
Humidity	5% to 95%, Non-condensing
IP rating	IEC IP51
Operating Temp.	-20 ºC to +60 ºC
Storage Temp.	-40°C to 80°C

Specification

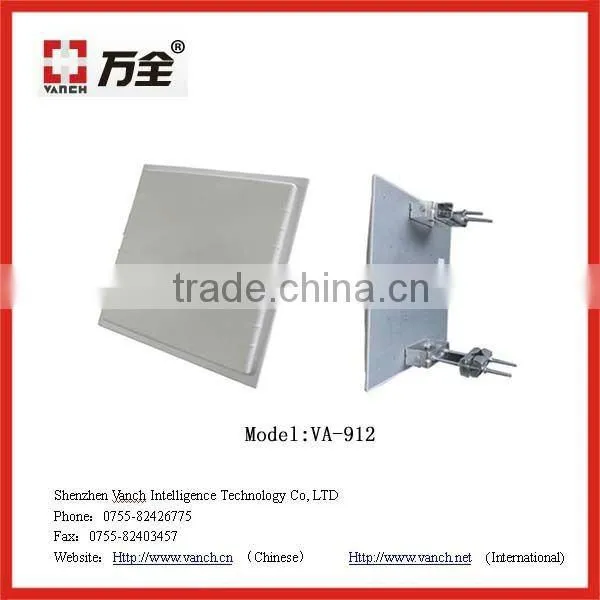

Model	VA-912

Performance Index
Frequency		865-868MHz; 902-928 MHz (can be customized)
Input Impedance		50 Ohm load
Antenna connector		N female antennas connector or can be customized.
Gain-dBi		12dBi
VSWR		≤1.3
Polarization		Linear polarization or circular polarization
Bandwidth		26MHZ
Front to Back Ratio -db		≥18
Vertical 3.0dB Beam width-°		35
Horizontal3.0Db Beam width-°		36
Dimension		45045040mm
Weight		1.8kg
Shell Material		ABS plastic
