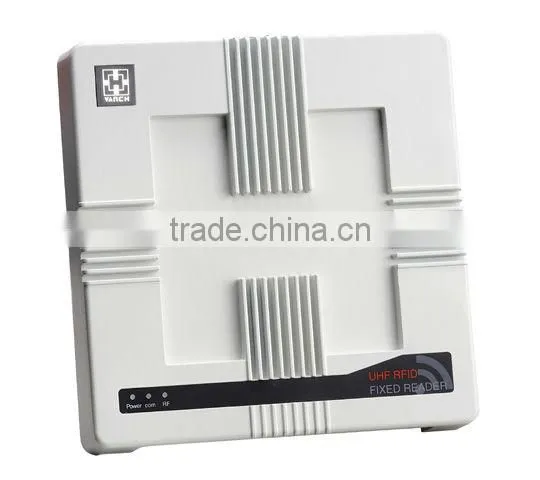

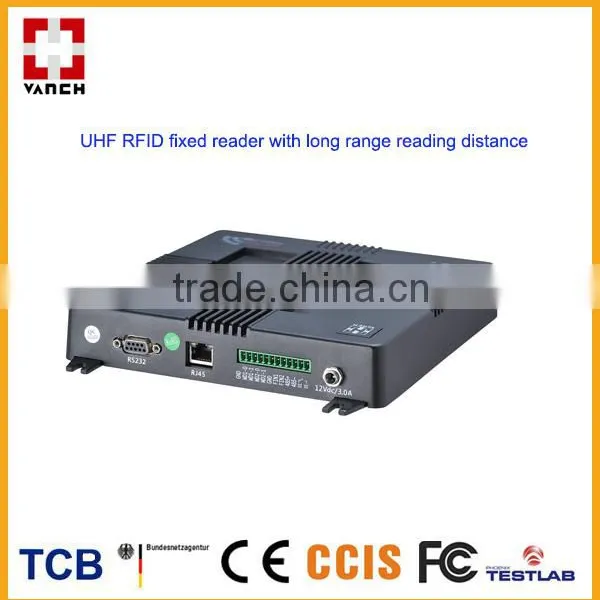

shenzhen manufacture vanch brand good quality module uhf rfid reader
Features:
1. customized frequency available
2. With CE/FCC certificates
3. good design antenna UHF RFID reader

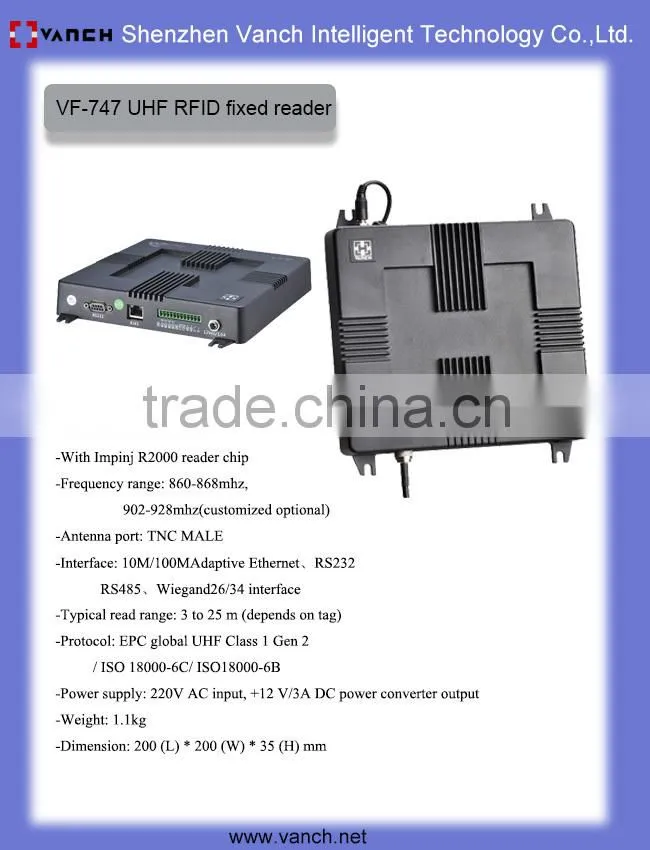

| Specification | |

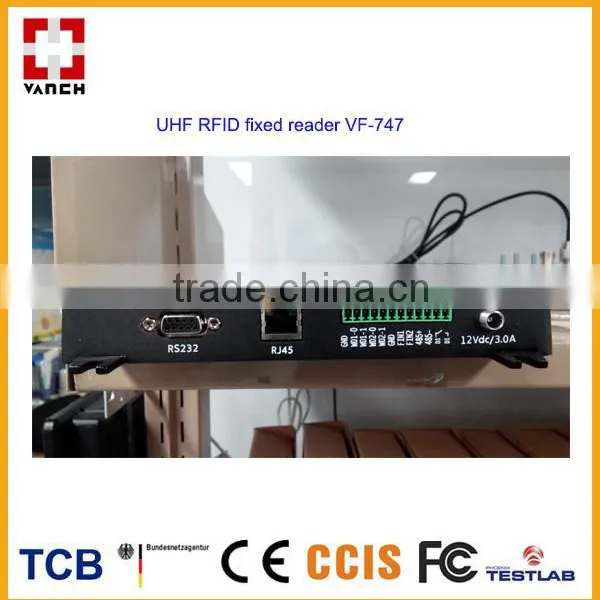

| Model | VF-747 |
| Performance Index | |
| Frequency range | 860-868MHZ,902-928MHZ(can be customized) |
| Frequency modulation | FHSS or fixed-frequency, can be set by software |
| RF output | +10.0 to +32.5 dBm;50 ohm load. |

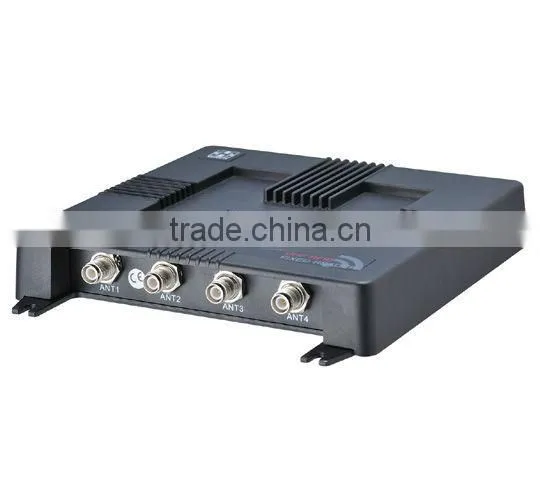

| The number of antennas | 1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections |
| Communication interface | 10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface |
| Communication rate | Serial rate 9600~115200bps,RJ45 is 10Mbps |
| Secure firmware upgrade | The upgrade mechanism can be extended |
| input / output (GPIO) | 2 inputs, 1 output |
| Certifications | CE/FCC |
| Application software | Supply API SDK and VC and VB, Delphi application routines |
| Tag Operation Performance | |
| Reading distance | 8dbiAntenna configuration, typical read range: 3 to 25 m (depends on tag) |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
| Maximum receiver sensitivity | -82 dBm;Maximum return loss: 10 DBm |
| Mechanical electrical performance | |
| Dimension | 200 (L) * 200 (W) * 35 (H) mm |
| Power | With 220V AC input, the output of +12 V/3A DC power converter |
| Weight | 1.1KG |
| Humidity | 5% to 95%, Non-condensing |
| IP rating | IEC IP51 |
| Operating Temp. | -20 ºC to +60 ºC |
| Storage Temp. | -40°C to 80°C |
Why choose us:
Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.VANCH products were widely used in City Smart transportation, Electric power system, asset and logistics management, the world's top 500 enterprises, government and military and other fields.
As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
Membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
Certificates and honors:

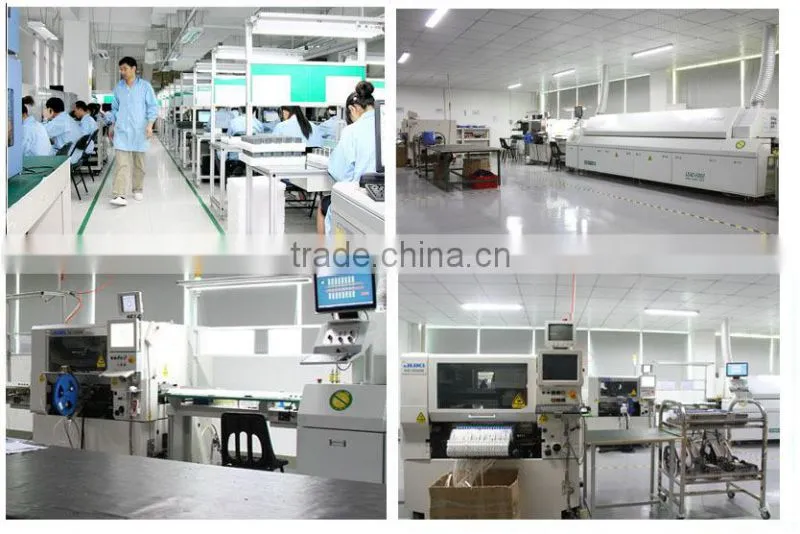

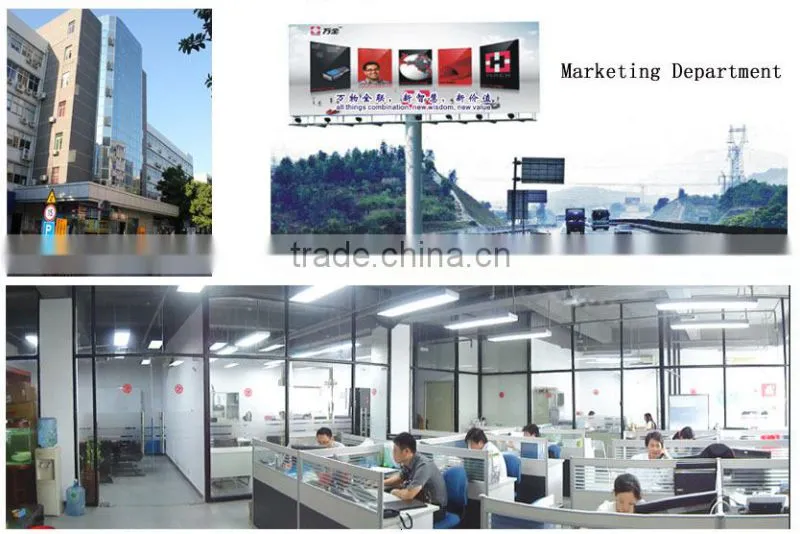

Our team:
Our showroom:
Fair show:
Successful case:
Contact us:
