3-7m Range UHF RFID Impinj Brand Fixed Reader

Name: 3-7m Range UHF RFID Impinj Brand Fixed Reader
Brand: VANCH
SKU: 101689603

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VF-447E

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VF-447E

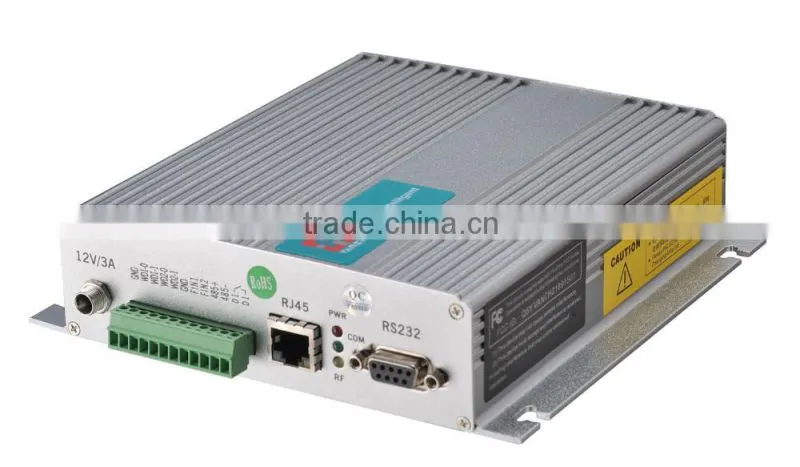

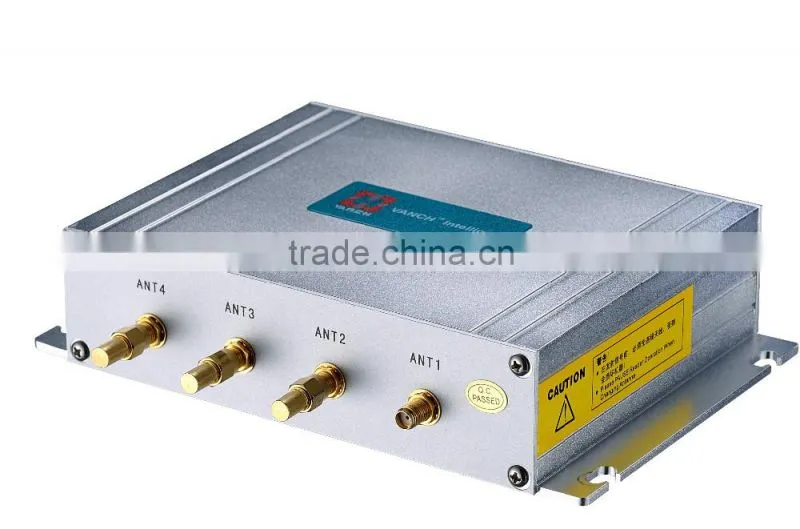

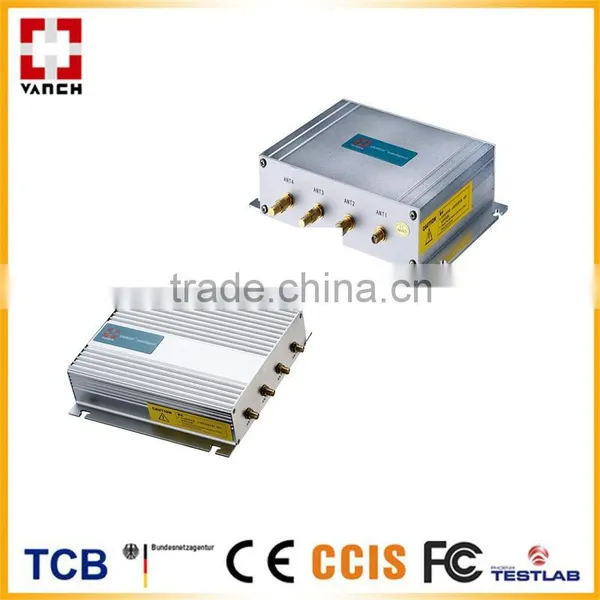

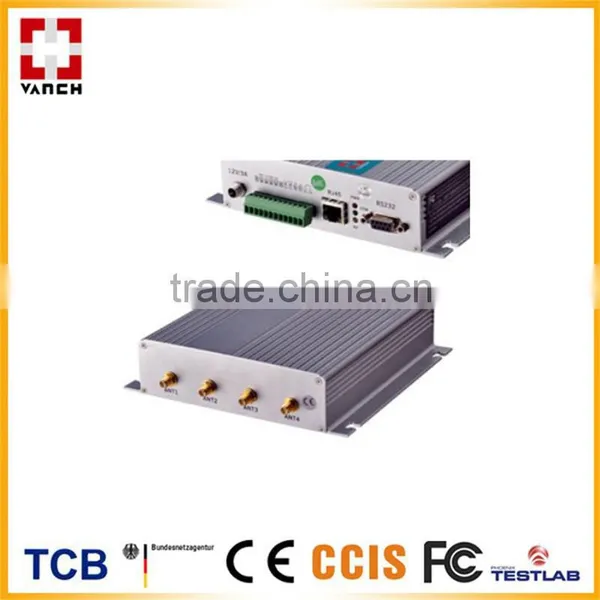

3-7m range UHF RFID Impinj brand fixed reader

Introduction

l The high-performance RF discrete components design framework.

l Combined with efficient signal processing algorithms, a high recognition rate and quickly reading speed can be guaranteed

l Application: vehicle access control, Customs intelligent clearance, logistics monitoring, production automation management and other fields.

Features

1. The high-performance RF discrete components and 32-bit ARM processor design framework to achieve the fast computation and the high-speed reading.

2. Full support electronic tags which meet the EPC global UHF Class1 Gen2 / ISO18000-6C standard.

3. Frequency: 865-868MHZ/902-928MHZ (can be adjusted according to different country and region)

4. Support these communicate modes like RS232,RS485 and TCP/IP etc

5.Support 1, 2 and 4 external SMA antennas connectors

6.Output power reach 30 dBm (adjustable), support auto mode, command mode and trigger mode etc.

7. Buzzer and LED status indication; support firmware upgraded online by communication connection.

8. Reader supply multi I/O connectors, convenient for application integration.

9. Highly reliable design for the industrial structure to meet harsh working environment.

Specification

Specification
Model	VF-447E

Performance Index
Frequency range	865-868MHZ,902-928MHZ(can be Customized)
Frequency modulation	FHSS or fixed-frequency, can be set by software
RF output	30 dBm;50 ohm load
The number of antennas	1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections
Communication interface	10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface
Communication rate	Serial rate 9600~115200bps,RJ45 is 10Mbps
Secured firmware upgrade	The upgrade mechanism can be extended
(GPIO) Input / Output	2 inputs, 1 output
Application software	Supply API SDK and VC and VB application routines
Tag operation performance
Reading distance	8dbi antenna typical reading distance 3~7meters(depends on tag)
Writing distance	0-2 meters
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Mechanical and electrical performance
Dimension	180 (L) * 168 (W) * 41 (H) mm
Power	With 220V AC input, the output of +12V/3A DC power converter
Weight	<1KG
Humidity	5% to 95%, Non-condensing
IP rating	IEC IP52
Working temp.	-20 ºC to +60 ºC
Storage temp.	-40°C to 80°C
