Introduction
lHigh-performance and high-reliability,long reading range, high Reading Accuracy, and superior anti-collision capability ,it can also achieve target-location
lApplication:Vehicle management; intelligent transportation; electric bike anti-theft system; student leaving / arriving school and message service system; Access control, asset management; warehouse management.
Features
- Reading range : 250m, reach 1000 with suitable tag
- Reading Accuracy > 99.999999%;
- superior anti-collision capability:read the complete 200 tags within 3 sec;
- tags type:VANCH 2 read-only-active tags
- tags record save in buffer cache;
- System functions include indication of power consumption, sound call, and data storage;
- Support multi communication interfaces: RS232,RS485,Wiegand26/34/66;
- active/passive Communication Type;
- RS232,RS485 communication rate can be set;
- Reading distance adjusted;
- Time interval on read the tag can be set;
- tags upload speed can be set;
- trigger working;
- can read Factory Version of device
Specification
Specification |
|
Performance Index | |
Frequency range |
2.4GHz-2.5GHz |
Communication Type |
active/passive; |
Shell material |
ABS, cast by aluminum, with mounting bracket, Control installation direction |
Communication Interface |
RS232,RS485,Wiegand 26/34/66, RS232,485 communication rate can be set |
Working type |
active(transfer data once reading tag ) |
Reading range |
250M |
Reading Accuracy |
99.999999% |
Application software |
Provide with API SDK and so on |
Output data format |
customized |
Reading/Writing |
Read-only, read by password |
Operating Voltage |
DC7.5-12V |
Operating Current |
< 200mA |
Operation temperature |
-25°C~ +75°C |
Storage temperature |
-40°C~ +85°C |
Humidity |
5% to 95% |
Dimension |
320mm×200mm×100mm |
Weight |
2.0kg |
Packing Size |
370mm×250mm×150mm |
Packing weight |
2.5kg; |
Tag Performance | |
Gain |
16dBi |
Horizontal Beam width |
30° |
Vertical Beam width |
25° |
Front to Back Ratio |
>25dB |
VSWR |
<1.5 |
Polarization |
Vertical Polarization |

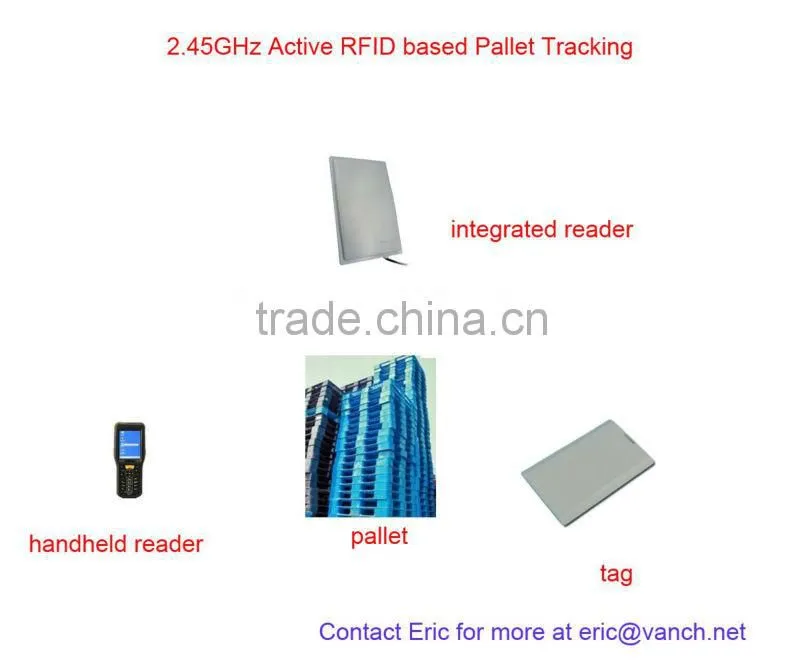

2.45G Active RFID System for pallet tracking
