Specifications
1.Simple , smart &stable2. over-load protect function
3.Variable speed
4.High starting torque
5.anti-explosive
Hand Brake Winch Air Driven Winch (1T) :

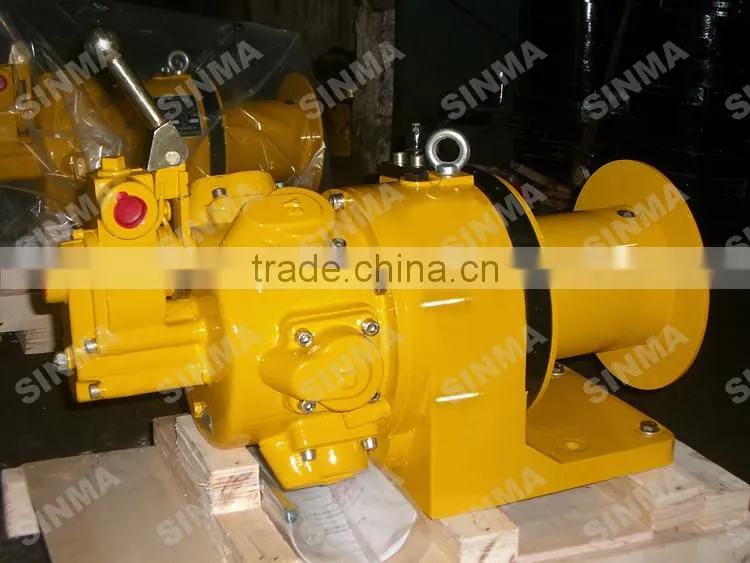

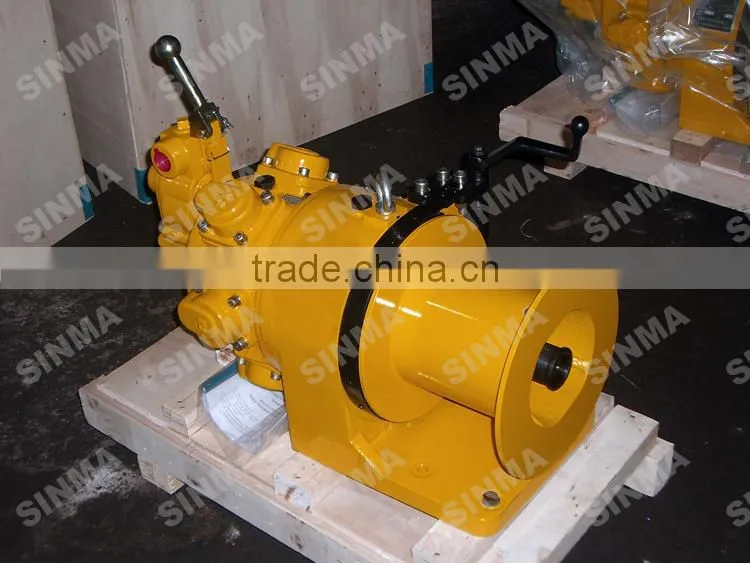

JQHS100*20series air winch is a kind of manual-operated single drum hoisting tool which adopts compressed air as the power to drive the piston motor . This machine is compact in structure, light in weight, small in size, it can be moved easily and fixed rapidly.This machine can do many works such as lifting, lowering and pulling . They are widely used in the following applications, construction sites, platform of oilfield off-sea and inland; drillnig platforms,marines,minings,engineering sites to loading and unloading heavy and bulky goods tensioning cables and so on .
Specifications:
1. Compact in size, light in weight, portable to move and easy to install; Reliable operation with little noise;
2. Variable speed
3.Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
4. Hand and foot double brake.
5. High starting torque ensures it starting with load
6.over-load protection and low maintance
7. This kind of Air Winches are available from 0.5 ton to 10ton capacities. Pull Force can be tailor-made to your requirement.
Technical Parameters :
| Model | JQH-10*24 | |
| Air Winch | ||
| Pressure of Air Compressor(MPA) | 0.6-0.7 | |
| Rated Traction Force(KN) | 10 | |
| Wire Rope Velocity(M/MIN) | 24 | |
| Pneumatic Motor | Rated Power(KW) | 4 |
| Cylinder Number(PCS) | 6 | |
| Cylinder Diameter(MM | 65 | |
| Air Consumption(L/S) | 130 | |
| Drum | Number(PCS) | 1 |
| Diamter(MM) | 175 | |
| Width (MM) | 198 | |
| Wheel Rim Diameter (MM) | 290 | |
| Rope Content(M) | 120 | |
| Wire Rope Diameter(MM) | 8 | |
| Inlet Diameter(MM) | 25 | |
| Dimension | Length(MM) | 722 |
| Width(MM) | 342 | |
| Height (MM) | 530 | |
| Weight (KGS) | 117 | |
