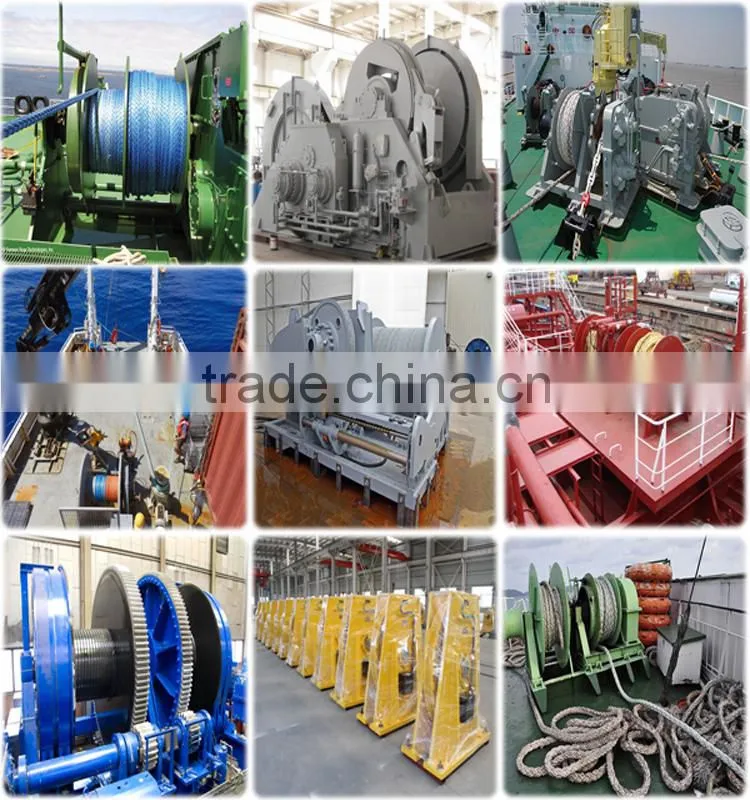

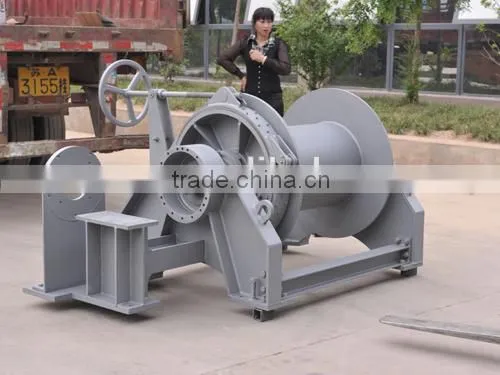

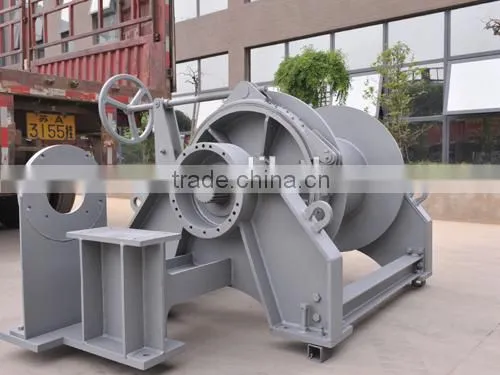

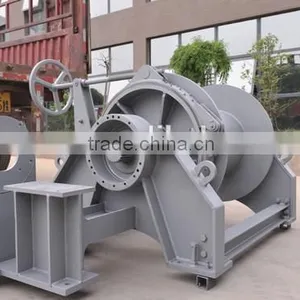

Hydraulic Mooring Winch Made in China

Name: Hydraulic Mooring Winch Made in China
Brand: SINMA
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	SINMA	Model Number:	MW/SD- 75/180
Power Source:	Other, Hydraulic, Electric,Hydraulic	Application:	Other, Boat, Boat,Marine	Capacity:	100t

Specifications of MOORING WINCH

Specifications:

1) Drive: hydraulic

2) Configuration: horizontal arrangement

3) Rope drum: steel wire rope

4) Rope speed: complying with ISO requirements

5) Rate pull (1st layer): 50 Tonnes

5) Clutch: hydrulic operated

6) Brake: hydraulic operated band failsafe brake

7) Brake Holding: 1st layer static up to 100Tonnes

8) Control: Local/ remote control

9) Paint: as per your specifications

10) Other:

Drag brake system

Spooling device

Auto-tensioning

Length and Tension Monitoring Systems

Technical Parameter of MOORING WINCH

Mooring Winch (FOR 4 / 6 / 8 / 10 Mooring Systems)
Model No.	Drum Capacity (SWR) (mxmm)	Brake Holding (T)	Rate Pull (Txm/min)	Slack speed (Txm/min)	Power (Kw)
MW/SD-20/48	500Xφ28	48	20x10	3.5x45	60
MW/SD-25/60	500Xφ 32	60	25x10	6.0x35	75
MW/SD-25/60	1000x φ32	60	25x10	6.0x35	75
MW/SD-32/76	1000x φ38	76	32x10	8.0x34	90
MW/SD-40/96	1000x φ38	96	40x10	10.0x31	110
MW/SD-40/96	1200x φ44	96	40x10	10.0x31	110
MW/SD-50/120	1200x φ48	120	50x8	12.0x28	110
MW/SD-60/140	1500x φ52	140	60x8	14.0x31	150
MW/SD-75/180	1500x φ60	180	75x8	17.0x31	180
MW/SD-85/200	1500x φ63	200	85x8	20.0x30	220

Jiangsu Sinma Machinery Co., Ltd.: Contact nameDonald Ma; Phone86-516-8789 9999; Address76 Zhengxing Rd, Jinshanqiao Development Zone Xuzhou,Jiangsu
