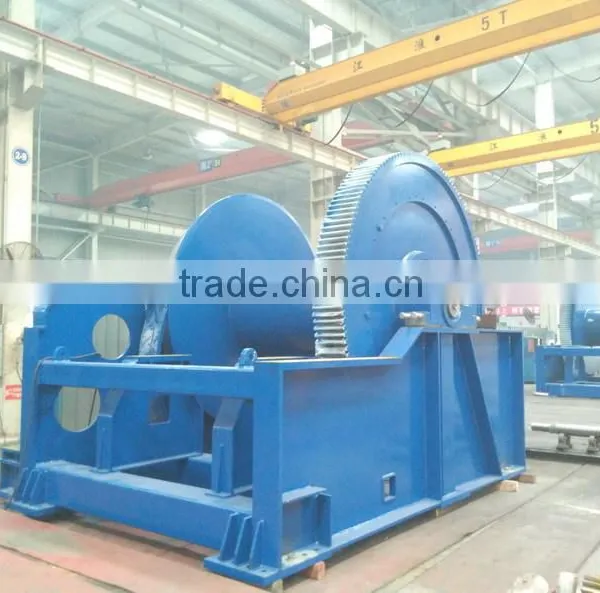

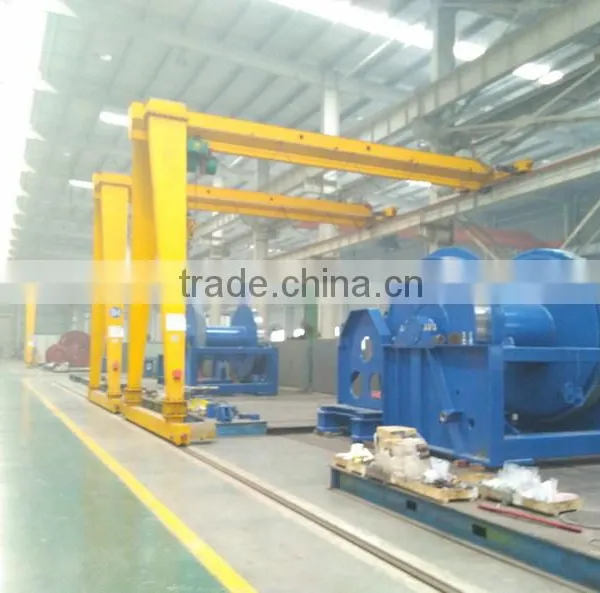

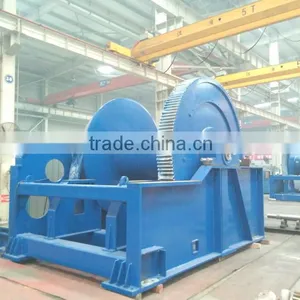

10 Points Hydraulic Mooring Winch for Crane or Work Barge

Name: 10 Points Hydraulic Mooring Winch for Crane or Work Barge
Brand: Sinma
SKU: 101670067
Availability: InStock

US$ 198,000 - 1,980,000 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

Sinma

Model Number:

SM/MW-130

Jiangsu Sinma Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Sinma

Model Number SM/MW-130

Power Source Hydraulic

Application Boat

Capacity 1300KN

Specifications:

1) Drive: hydraulic

2) Configuration: horizontal arrangement

3) Rope drum: steel wire rope

4) Rope speed: complying with ISO requirements

5) Rate pull (1st layer): 130 Tonnes

5) Clutch: hydrulic operated

6) Brake: hydraulic operated band failsafe brake

7) Brake Holding: 1st layer static up to 200Tonnes or complying with ISO/ Classification Society requirement

8) Control: Local/ remote control

9) Paint: as per your specifications

10) Other:

Mooring Winch (FOR 4 / 6 / 8 / 10 Mooring Systems)
Model No.	Drum Capacity (SWR) (mxmm)	Brake Holding (T)	Rate Pull (Txm/min)	Slack speed (Txm/min)	Power (Kw)
MW/SD-20/48	500Xφ28	48	20x10	3.5x45	60
MW/SD-25/60	500Xφ 32	60	25x10	6.0x35	75
MW/SD-25/60	1000x φ32	60	25x10	6.0x35	75
MW/SD-32/76	1000x φ38	76	32x10	8.0x34	90
MW/SD-40/96	1000x φ38	96	40x10	10.0x31	110
MW/SD-40/96	1200x φ44	96	40x10	10.0x31	110
MW/SD-50/120	1200x φ48	120	50x8	12.0x28	110
MW/SD-60/140	1500x φ52	140	60x8	14.0x31	150
MW/SD-75/180	1500x φ60	180	75x8	17.0x31	180
MW/SD-85/200	1500x φ63	200	85x8	20.0x30	220
