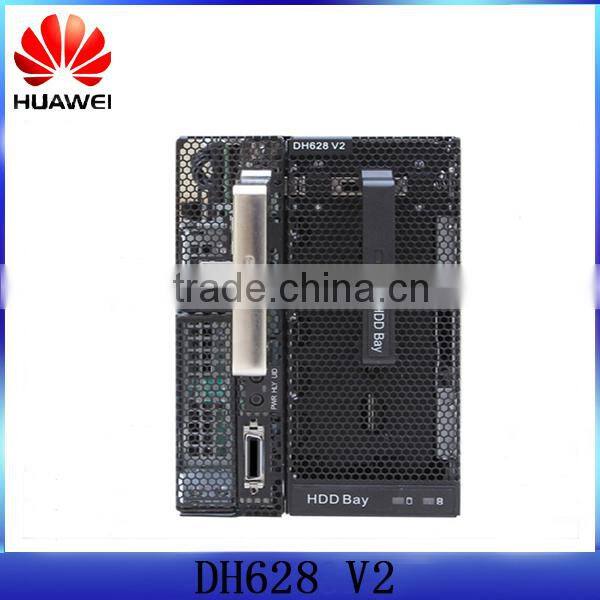

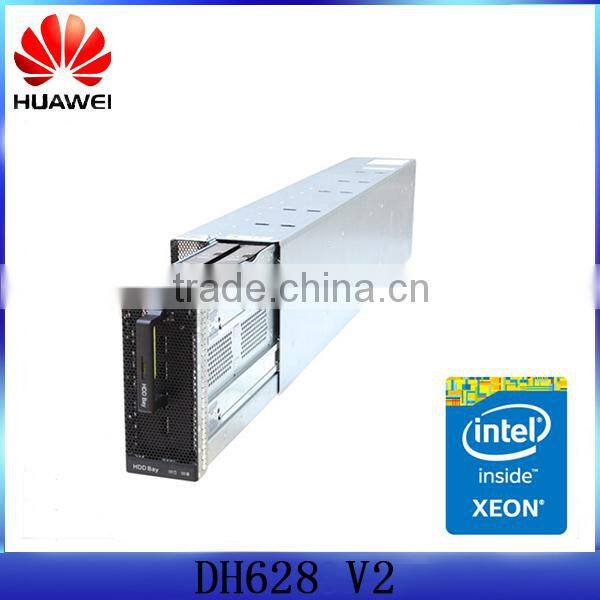

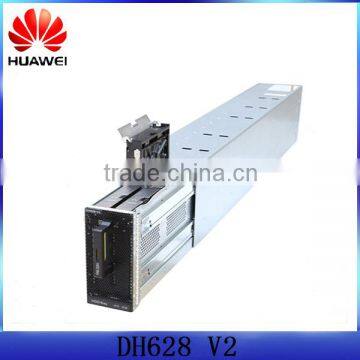

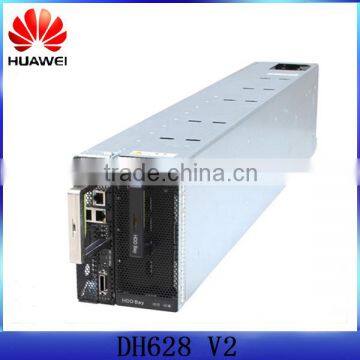

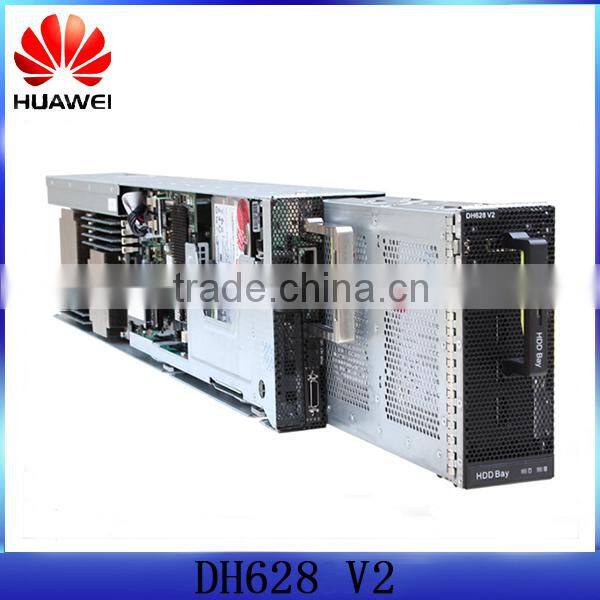

Huawei X8000 DH628 V2 2-socket Storage 4U Server Node

Huawei X8000 DH628 V2 2-socket Storage 4U Server Node thumbnail-1
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node thumbnail-2
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node thumbnail-3
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node thumbnail-4
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node thumbnail-5
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node thumbnail-6
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node photo-1
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node photo-2
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node photo-3
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node photo-4
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node photo-5
Huawei X8000 DH628 V2 2-socket Storage 4U Server Node photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Huawei
Model Number:
DH628 V2
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shanghai Chu Cheng Information Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huawei
Model Number DH628 V2
Place of Origin Guangdong, China
Type Other, Server Node

Huawei X8000 DH628 V2 2-socket Storage 4U Server Node

Product Description

 The DH628 V2 is a new-generation 2-socket server node for the Huawei X8000 server. It supports Intel®Xeon® E5-2400 or E5-2400 v2 series processors, eight DDR3 DIMMs, twelve 3.5-inch SATA/SAS HDDs or 2.5-inch SATA/SAS HDDs or SSDs and two 2.5-inch SATA HDDs or SSDs.. The DH628 V2 is ideal for large-capacity distributed storage server applications.

Huawei X8000 DH628 V2 2-socket Storage 4U Server NodeHuawei X8000 DH628 V2 2-socket Storage 4U Server NodeHuawei X8000 DH628 V2 2-socket Storage 4U Server NodeHuawei X8000 DH628 V2 2-socket Storage 4U Server Node



Specifications

 Specifications  DH628 V2

Form Factor

1/4-width, 2-socket server node

Number of Processors

1 or 2

Processor

Intel® Xeon® E5-2400/E5-2400 v2 series processors

Memory

8 DDR3 DIMMs

Internal Storage

12 x 3.5-inch hot-swappable SATA/SAS HDDs or 2.5-inch hot-swappable SATA/SAS HDDs or SSDs + 2 x 2.5-inch SATA HDDs or SSDs

LOM Network Ports

2 GE ports

PCIe Expansion

Up to 2 PCIe slots

Management

Built-in iBMC:

  • IPMI, SOL, KVM over IP, and virtual media
  • One 10/100M RJ45 management network port

Operating Systems Supported
  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • Citrix XenServer
  • VMware

Operating Temperature

5ºC to 35ºC (41ºF to 95ºF)
