Huawei OptiX OSN6800 Optical Transmission Equipment Huawei Sdh Equipment

Huawei OptiX OSN6800 Optical Transmission Equipment Huawei Sdh Equipment thumbnail-1
Huawei OptiX OSN6800 Optical Transmission Equipment Huawei Sdh Equipment photo-1
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Huawei
Model Number:
OptiX OSN6800
Contact Supplier Request Quote Chat Now
Shanghai Chu Cheng Information Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Huawei
Model Number OptiX OSN6800

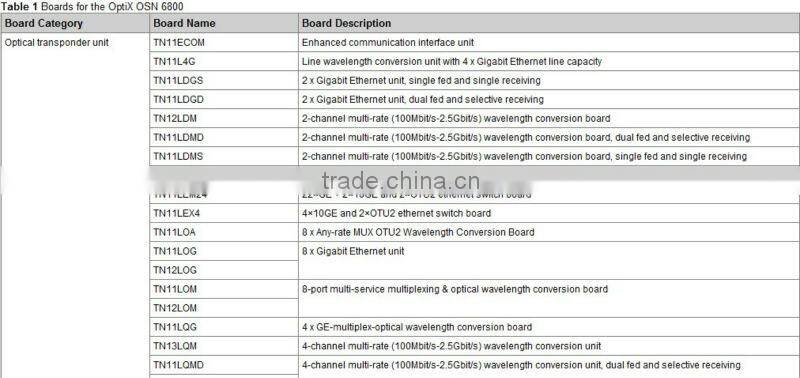

Product Specifications

Specifications

OptiX OSN 6800

Dimensions (mm)

 497 (W) x 295 (D) x 400 (H)

Number of slots for service boards

 17

Switch

 Optical 1 to 9-degree ROADM
Electrical
  • 180G GE
  • 360G 10GE/ODUk(k=1, 2, 2e)

Wavelength (max)

 DWDM: 80-ch, CWDM: 8-ch

Wavelength range

DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1)

CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)

Max. rate per channel

 100 Gbit/s (OTU4)

Max. distance

Multi-span transmission: 32 span x 22 dB/span (10G), 25 span x 22 dB/span (40G), 20 span x 22 dB/span (100G) without electrical regeneration

Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G)

Service types supported

SDH, SONET, Ethernet, SAN, OTN, Video

Line rate

2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s

Max. capacity per PID group

120 Gbit/s

Topology

Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh

Redundancy and Protection

Network level protection (OTN)

Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, MS SNCP, ODUk SPRing protection, OWSP, board-Level protection

Network level protection (Ethernet)

DBPS, DLAG, ERPS, LAG, LPT, MSTP, STP and RSTP, VLAN SNCP

Equipment level protection

Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy
Optical power management

ALS, AGC, ALC, APE, IPA, OPA
Synchronization
  • Synchronous Ethernet clock
  • IEEE 1588v2
  • 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source
  • External time source (1PPS+TOD)
ASON

Optical-Layer ASON



Product Highlights

The OptiX OSN 6800 supports 40 Gbit/s and 100 Gbit/s line rates and a cross-connect capacity greater than 10 Tbit/s. It features power saving, and high reliability and maintainability.

Highest Cross-Connect Capacity with Flexible Large-Capacity Service Grooming

  • Features high cross-connect capacity. A single subrack supports a maximum of 360G bit/s cross-connect capacity, implementing large-capacity service grooming. Only one subrack is required for the large-capacity service grooming and therefore lowers power consumption and reduces the floor space.
  • Supports multi-granularity OTN cross-connection, that is, ODUk cross-connection, where k can be 0, 1, 2, 2e, 3, 4, or flex.
  • Supports unified switching capabilities of VC, ODUk, and packet services , and supports flexible bandwidth allocation.

Huge Bandwidth Provisioning with Flexible High-Density Architecture

  • Supports hybrid transmission of 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s signals, and supports a smooth upgrade from a low-rate network to a high-rate network.
  • Supports ePDM-QPSK modulation for 100 Gbit/s signals, requiring no dispersion compensation modules (DCMs) and simplifying network configurations. The advanced return to zero (RZ), forward error correction (FEC), and digital signal processing (DSP) algorithms implement ultra long-haul transmission of 100 Gbit/s signals, which increases the optical signal-to-noise ratio (OSNR) tolerance and transmission distance.
  • Satisfies requirements on large-bandwidth transmission using 40 Gbit/s and 100 Gbit/s line rates. Provides the highest integration in the industry and supports 100 Gbit/s capacity.

Tier 1 Reliability and Mass Data Transmission with Optimal Architecture

  • Provides multiple network-level protection schemes and intelligent network management based on automatically switched optical network (ASON)/generalized multiprotocol label switching (GMPLS) technologies to protect all fibers and services.
  • Provides protection for power supply devices, fans, communication control boards, and the cross-connection resource pool.

Advanced Power Saving Technology with Low Power Consumption and High Maintainability, Providing the Best Operation Experience and Minimizing OPEX

  • Uses advanced power saving technologies with intelligent fans, π-shape air ducts, dynamic energy conservation, optimal chips, and excellent system design. This feature improves power and power consumption efficiency, and minimizes energy consumption.
  • Uses implements visual power consumption management. You can view power consumption data of subracks in real time.
  • Provides the highest configuration, loading, and startup efficiency in the industry.
  • Implements advanced visual management on OSNR monitoring.

Typical Networking

The OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform.

The OptiX OSN 6800 is for area backbones, local networks, metropolitan convergence layers and metropolitan core layers.

The OptiX OSN 6800 uses dense wavelength division multiplexing (DWDM) or coarse wavelength division multiplexing (CWDM) technologies to achieve transparent transmission with multiple services and large capacity.

The OptiX OSN 6800 supports the following networking modes:

  • Point-to-point network
  • Chain network
  • Ring network
  • MESH network

Service Types

Service Category Service Type Service Rate
SDH STM-1 155.52 Mbit/s
STM-4 622.08 Mbit/s
STM-16 2.5 Gbit/s
STM-64 9.95 Gbit/s
STM-256 39.81 Gbit/s
SONET OC-3 155.52 Mbit/s
OC-12 622.08 Mbit/s
OC-48 2.5 Gbit/s
OC-192 9.95 Gbit/s
OC-768 39.81 Gbit/s
Ethernet service FE (optical signal)

Interface rate: 125 Mbit/s

Service rate: 100 Mbit/s
FE (electrical signal)

Interface rate: 100 Mbit/s

Service rate: 100 Mbit/s
GE(optical signal)

Interface rate: 1.25 Gbit/s

Service rate: 1 Gbit/s
GE (electrical signal)

Interface rate: 1 Gbit/s

Service rate: 1 Gbit/s
10GE WAN 9.95 Gbit/s
10GE LAN 10.31 Gbit/s
100GE 103.125 Gbit/s
SAN service ETR 16 Mbit/s
CLO 16 Mbit/s
FDDI 125 Mbit/s
ESCON 200 Mbit/s
FICON 1.06 Gbit/s
FICON Express 2.12 Gbit/s
FC100 1.06 Gbit/s
FC200 2.12 Gbit/s
FC400 4.25 Gbit/s
FC800 8.5 Gbit/s
FC1200 10.51 Gbit/s
FICON4G 4.25 Gbit/s
FICON8G 8.5 Gbit/s
FICON10G 10.51 Gbit/s
ISC 1G 1.06 Gbit/s
ISC 2G 2.12 Gbit/s
InfiniBand 2.5G 2.5 Gbit/s
InfiniBand 5G 5 Gbit/s
OTN service OTU1 2.67 Gbit/s
OTU2 10.71 Gbit/s
OTU2e 11.10 Gbit/s
OTU3 43.02 Gbit/s
Video service DVB-ASI 270 Mbit/s
SDI 270 Mbit/s
HD-SDI 1.49 Gbit/s
HD-SDIRBR 1.49/1.001 Gbit/s
3G-SDI 2.97 Gbit/s
3G-SDIRBR 2.97/1.001 Gbit/s



Line Rate

The OptiX OSN 6800 use dense wavelength division multiplexing (DWDM) technologies to achieve transparent transmission with multiple services and large capacity.

Currently, the OptiX OSN 6800 can multiplex up to 80 service channels in a single fiber. That is, it can transmit 80 carrier signals of different wavelengths.

The OptiX OSN 6800 systems provide multiple transmission solutions based on different line rate:

  • 40/80 x 100 Gbit/s transmission solution
  • 40/80 x 40 Gbit/s transmission solution
  • 40/80 x 10 Gbit/s transmission solution
  • 40 x 2.5 Gbit/s transmission solution
  • 10 Gbit/s, 40 Gbit/s, 100 Gbit/s Hybrid Transmission

CWDM Feature

The OptiX OSN 6800 provides an 8-wavelength CWDM transmission solution with a channel spacing of 20nm in the C band, which complies with ITU-T G.694.2, and can carry 2.5 Gbit/s or 5 Gbit/s services over a single wavelength.



OTN Feature

The optical transport network (OTN) technology ensures flexible service cross-connections in an end-to-end manner, and enables services of different types to share bandwidth. With the help of numerous OTN overheads and easy operations on the NMS, users can easily maintain networks and locate faults.

  • OTN Cross-Connection

    With the help of OTN cross-connections, any granularity traffic can be aggregated into any ODUk pipe, and different types of services from multiple sites can be mixed in one ODUk pipe. This enables flexible service grooming and improves bandwidth utilization.

  • E2E Service Management Based on OTN Overhead

    With the help of numerous OTN overheads defined in ITU-T G.708 as well as easy operations on the NMS, services can be managed and monitored in an end-to-end manner.

    With the help of OTN overheads, an OTN network can transparently transmit client services and provide powerful forward error correction (FEC) capabilities. The overheads and NMS together enables easy end-to-end service monitoring and management. They can easily locate a fault.

  • Channel Monitoring over Different Operators' Networks

    When networks of different operators are interconnected, the OTN overheads at the tandem connection monitoring (TCM) layer can be used to monitor the quality of the channels that different operators provide. The ODUk TCM function makes it easy to locate faults.

Requirements on subrack temperature and humidity

Cabinet Temperature Subrack Temperature Relative Humidity
- Long-Term Operation Short-Term Operation Long-Term Operation Short-Term Operation
-5°C (23 °F) to 45°C (113 °F) 5°C (41 °F) to 45°C (113 °F) -5°C (23 °F) to 55°C (131 °F) 5% to 85% 5% to 95%

Power Consumption

nit Name Typical Power Consumption (W)a Remarks
OTM subrack Subrack 1 566 17 x 10G OTU (LSX), 1 x SCC, 2 x PIU, 1 x AUX, and 1 x fan tray assembly
Subrack 2 168.7 1 x M40V, 1 x D40, 1 x OAU101, 1 x OBU103, 1 x FIU, 1 x SC1, 1 x SCC, 2 x PIU, 1 x AUX, and 1 x fan tray assembly
Subrack 3 691.6 10 x ND2, 2 x TQX, 2 x TOG, 2 x XCS, 1 x SCC, 2 x PIU, 1 x AUX, and 1 x fan tray assembly
OLA subrack 144.9 2 x OAU101s, 2 x FIU, 1 x SC2, 1 x SCC, 2 x PIU, 1 x AUX, and 1 x fan tray assembly
FOADM subrack 292.3 2 x OAU101, 2 x VA4, 2 x OBU103, 2 x MR4, 4 x 10G OTU (LSX), 2 x FIU, 1 x SC2, 1 x SCC, 2 x PIU, 1 x AUX, and 1 x fan tray assembly
ROADM subrack (2 x dimensions) Subrack 1 87.4 1 x M40, 1 x D40, 2 x WSMD2, 2 x DAS1, 1 x SCC, 2 x PIU, 1 x AUX, and 1 x fan tray assembly
Subrack 2 566 17 x 10G OTU (LSX), 1 x SCC, 2 x PIU, 1 x AUX, and 1 x fan tray assembly
ROADM subrack (4 x dimensions)b Subrack 160 1 x WSMD4, 1 x DAS1, 1 x M40, 1 x D40, 1 x SCC, 2 x PIU, 1 x AUX, and 1 x fan tray assembly
OTM cabinet (40x10 Gbit/s) 1422.2 2 x OTU subrack and 1 x OTM subrack 2
