Grandstream IP PBX UCM 6116 16 fxo 2 fxs,usb,sd card slot

Specifications

Grandstream IP PBX UCM 6116 16 fxo 2 fxs,usb,sd card slot

The UCM6100 series IP PBX telephone system is a full-featured, easy-to-manage IP PBX Appliance designed to bring enterprise-grade features to small-and-medium sized businesses (SMBs) without the need for licensing fees, costs per feature, or any recurring costs.

Powered by an advanced hardware platform with robust system resources, the UCM6100 series offers a highly versatile, turnkey solution for converged voice, video, data, and mobility applications, including fax and video surveillance.

Incorporating industry-leading features and performance, the UCM6100 series offers quick and easy setup and deployment using the web-browser user interface – which features auto-discovery of IP endpoints and zero-configuration provisioning. The secure and reliable UCM 6100 series delivers enterprise-grade features to SMBs with unrivaled reliability - all at an unprecedented price point.

Features

specifications

• Technical Specifications	UCM6102	UCM6104	UCM6108	UCM6116
  INTERFACES
  PSTN Line FXO Ports	2	4	8	16
  Analog Telephone FXS Ports	2	2	2	2
  Network Interfaces	Single or Dual (UCM6102 only) 10M/100M/1000M RJ45 Ethernet port(s) with integrated PoE Plus (IEEE 802.3at-2009)
  Data Router	Yes	No
  Peripheral Ports	USB, SD
  LED Indicators	Power/Ready, Network, PSTN Line, USB, SD
  LCD Display	128x32 graphic LCD with DOWN & OK button
  Reset Switch	YES
  VOICE/VIDEO CAPABILITIES
  Voice-over-Packet Capabilities	LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711
  Voice Compression & Fax	G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM; T.38
  Video Compression	H.264, H.263, H263+
  QoS	Layer 3 QoS.
  SIGNALING & CONTROL
  DTMF Method	In Audio, RFC2833 and SIP INFO
  Provisioning Protocol & Plug-and-Play	TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints
  Network Protocols	TCP/UDP/IP, RTP/RTCP, ICMP, ARP/RARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS/SIP
  Disconnect Methods	Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone
  SECURITY
  Media	SRTP, TLS, HTTPS, SSH, Syslog
  PHYSICAL
  Universal Power Supply	Output: 12VDC, 1.5A;  Input: 100 ~ 240VAC, 50 ~ 60Hz
  Environmental	Operating: 32 ~ 104ºF /  0 ~ 40ºC, 10 ~ 90% (non-condensing);  Storage: 14 ~ 140ºF /  -10 ~ 60ºC
  Dimensions (L*W*H)	226mm(L)x 155mm(W)x 34.5mm(H)		440mm(L)x 185mm(W)x 44mm(H)
  Mounting	Wall mount & Desktop (UCM6102/6104);   Rack mount  & Desktop (UCM6108/6116)
  ADDITIONAL FEATURES
  Caller ID	Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (Pending)
  Polarity Reversal/Wink	Yes, with enable/disable option upon call establishment and termination
  Call Center	Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement
  Customizable Auto Attendant	Up to 5 layers of IVR (Interactive Voice Response)
  Concurrent Calls	Up to 30 (UCM6102), 45 (UCM6104), or 60 (UCM6108/6116) simultaneous calls
  Conference Bridges	Up to 3 (UCM6102/6104) or 6 (UCM6108/6116) password-protected conference bridges allowing up to 25 (UCM6102/6104) or 32 (UCM6108/6116) simultaneous PSTN or IP participants
  Call Features	Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom, etc.
  COMPLIANCE
  EMC	FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002
  Safety	ITU-T K.21(Basic Level); UL(Power Supply)

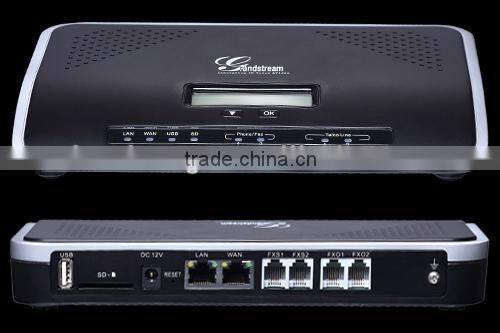

grandstream UCM6102

grandstream ucm6104

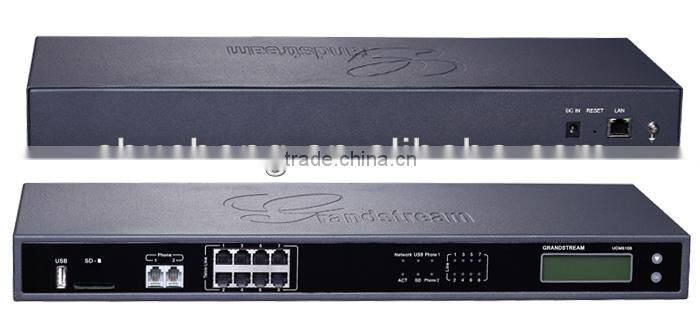

grandstream UCM6108

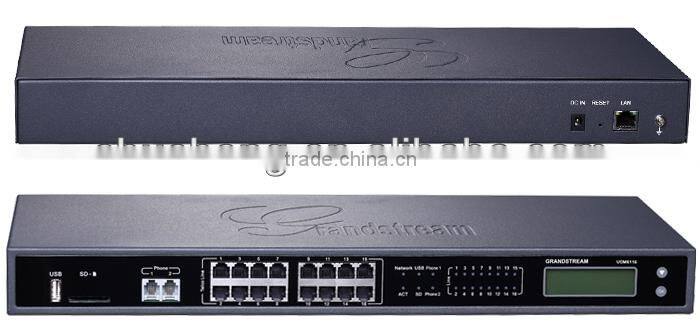

grandstream UCM6116

Certificate

You can choose

After-Sales Service

l We can provide detail documents and remote help for device installation and configuration.

l Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)

l Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.

Attn: Anne

Skype : anne.shi1025
