Specifications
60 FXO ports or 2 E1/T1 portsBuilt-in voice mail 10 channels concurrently
a maximum of 300 enterprise users

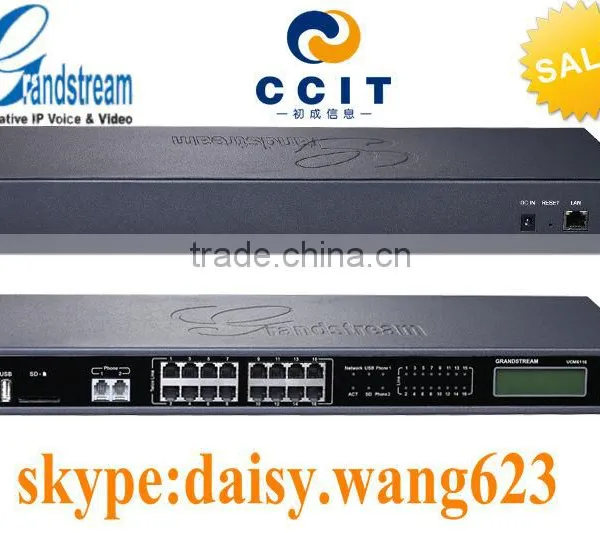

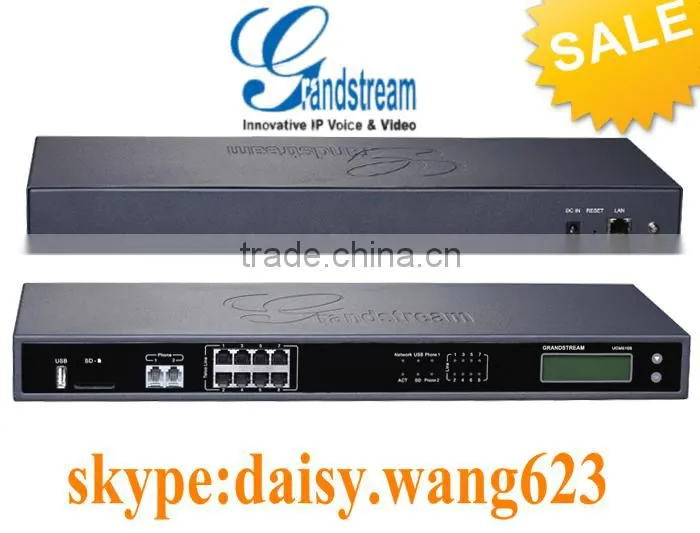

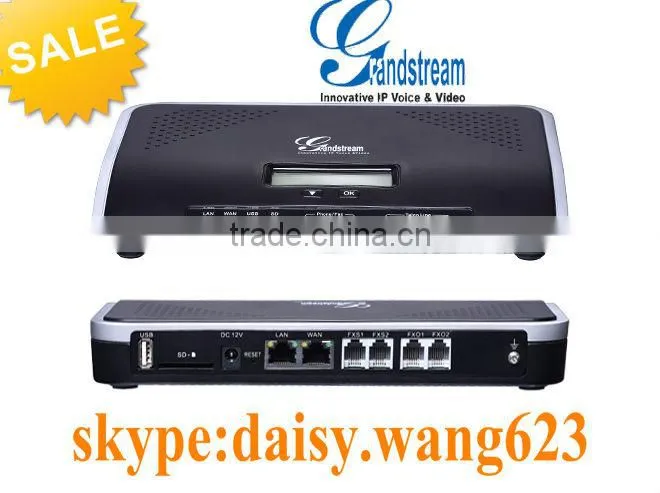

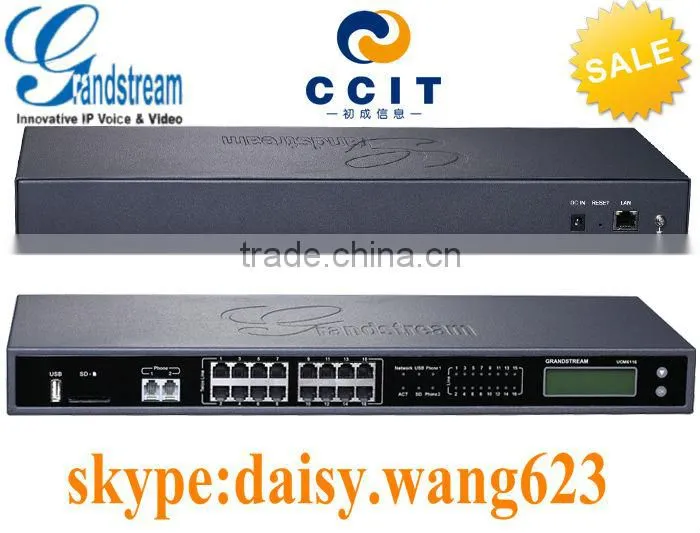

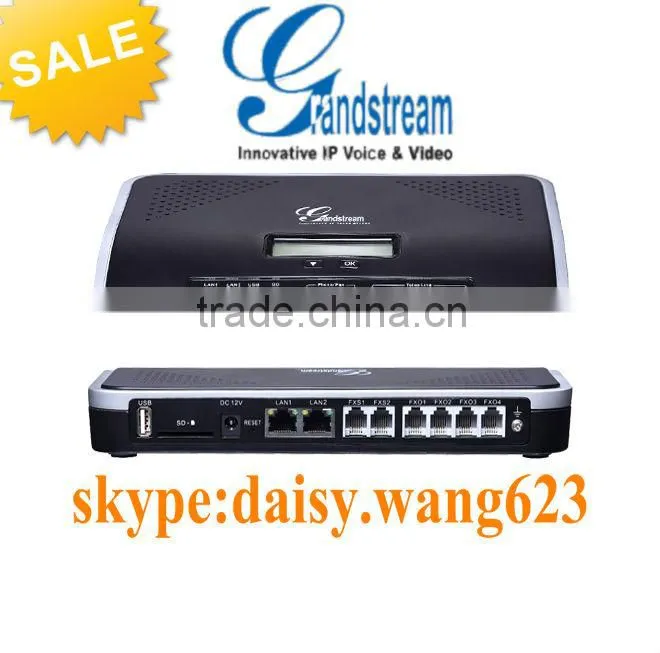

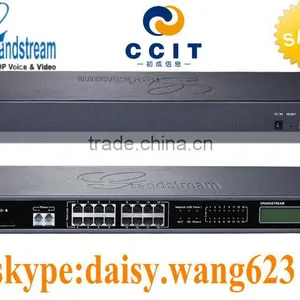

Grandstream UCM6100 series IP PBX Appliance UCM6104 UCM6108 UCM6116
The UCM6100 Series is an innovative IP PBX appliance designed to bring enterprise-grade Unified Communications and Security Protection features to small-to-medium businesses (SMBs) in an easy-to-manage fashion. Powered by an advanced hardware platform and revolutionary software functionalities, the UCM6100 Series offers a breakthrough turnkey solution for converged voice, video, data, fax, security surveillance, and mobility applications out of the box without any extra license fees or recurring costs.
Features
1GHz ARM Cortex A8 application processor, large memory (512MB DDR RAM, 4GB NAND Flash), and dedicated high performance multi-core DSP array for advanced voice processing
- Integrated 2/4/8/16 PSTN trunk FXO ports, 2 analog telephone FXS ports with lifeline capability in case of power outage, and up to 50 SIP trunk accounts
- Gigabit network port(s) with integrated PoE, USB, SD card;integrated NAT router with advanced QoS support (UCM6102 only)
- Hardware DSP based 128ms-tail-length carrier-grade line echo cancellation (LEC), hardware based caller ID/call progress tone and smart automated impendance matching for various countries
- Supports up to 500 SIP endpoint registrations, up to 60 concurrent calls (up to 40 SRTP encrypted concurrent calls), and up to 32 conference attendees
- Flexible dial plan, call routing, site peering, call recording,central control panel for endpoints, integrated NTP server, and integrated LDAP contact directory
- Automated detection and provisioning of IP phones, video phones, ATAs, gateways, SIP cameras, and other endpoints for easy deployment
- Strongest-possible security protection using SRTP, TLS, and HTTPS with hardware encryption accelerator
Specifications
Technical Specifications |
UCM6102 |
UCM6104 |
UCM6108 |
UCM6116 |
INTERFACES | ||||
PSTN Line FXO Ports |
2 |
4 |
8 |
16 |
Analog Telephone FXS Ports |
2 |
2 |
2 |
2 |
Network Interfaces |
Single or Dual (UCM6102 only) 10M/100M/1000M RJ45 Ethernet port(s) with integrated PoE Plus (IEEE 802.3at-2009) |
|||
Data Router |
Yes |
No |
||
Peripheral Ports |
USB, SD |
|||
LED Indicators |
Power/Ready, Network, PSTN Line, USB, SD |
|||
LCD Display |
128x32 graphic LCD with DOWN & OK button |
|||
Reset Switch |
YES |
|||
VOICE/VIDEO CAPABILITIES | ||||
Voice-over-Packet Capabilities |
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711 |
|||
Voice Compression & Fax |
G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM; T.38 |
|||
Video Compression |
H.264, H.263, H263+ |
|||
QoS |
Layer 3 QoS. |
|||
SIGNALING & CONTROL | ||||
DTMF Method |
In Audio, RFC2833 and SIP INFO |
|||
Provisioning Protocol & Plug-and-Play |
TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints |
|||
Network Protocols |
TCP/UDP/IP, RTP/RTCP, ICMP, ARP/RARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS/SIP |
|||
Disconnect Methods |
Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone |
|||
SECURITY | ||||
Media |
SRTP, TLS, HTTPS, SSH, Syslog |
|||
PHYSICAL | ||||
Universal Power Supply |
Output: 12VDC, 1.5A; Input: 100 ~ 240VAC, 50 ~ 60Hz |
|||
Environmental |
Operating: 32 ~ 104ºF / 0 ~ 40ºC, 10 ~ 90% (non-condensing); Storage: 14 ~ 140ºF / -10 ~ 60ºC |
|||
Dimensions (L*W*H) |
226mm(L)x 155mm(W)x 34.5mm(H) |
440mm(L)x 185mm(W)x 44mm(H) |
||
Mounting |
Wall mount & Desktop (UCM6102/6104); Rack mount & Desktop (UCM6108/6116) |
|||
ADDITIONAL FEATURES | ||||
Caller ID |
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (Pending) |
|||
Polarity Reversal/Wink |
Yes, with enable/disable option upon call establishment and termination |
|||
Call Center |
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement |
|||
Customizable Auto Attendant |
Up to 5 layers of IVR (Interactive Voice Response) |
|||
Concurrent Calls |
Up to 30 (UCM6102), 45 (UCM6104), or 60 (UCM6108/6116) simultaneous calls |
|||
Conference Bridges |
Up to 3 (UCM6102/6104) or 6 (UCM6108/6116) password-protected conference bridges allowing up to 25 (UCM6102/6104) or 32 (UCM6108/6116) simultaneous PSTN or IP participants |
|||
Call Features |
Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom, etc. |
|||
COMPLIANCE | ||||
EMC |
FCC: Part 15 (CFR 47) Class B, Part 68 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002 |
|||
Safety |
ITU-T K.21(Basic Level); UL(Power Supply) |
|||
